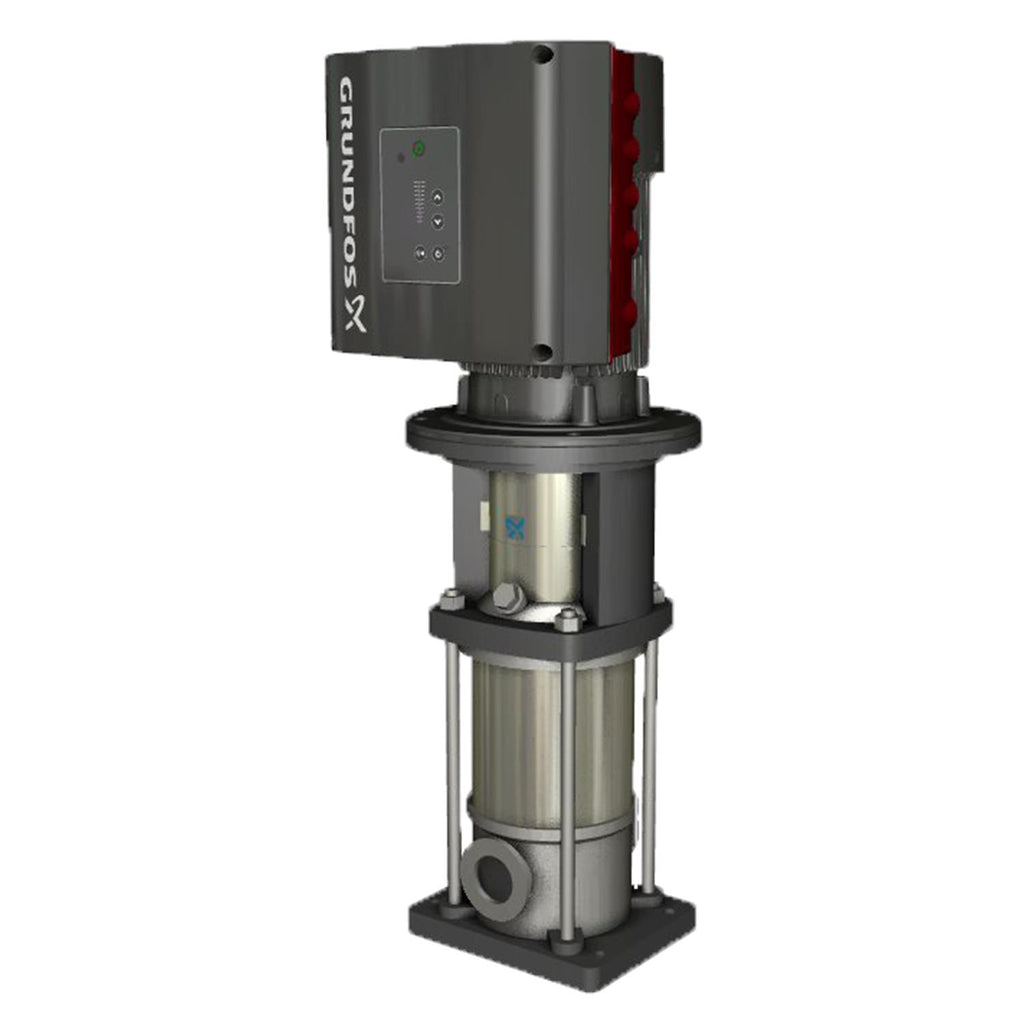

Grundfos 99515912 - CRIE 1S-12 P-CA-A-V-HQQV | Vertical | Multistage | Centrifugal

GrundfosSKU: 99515912

Price:
Sale price$6,673.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRIE 1S-12 P-CA-A-V-HQQV · Vertical Multistage Centrifugal Pump — Stainless Variable Speed
CRIE0.75HP200-240V1.0-Phase60 HzIE5IP55Stainless steel

The Grundfos 99515912 (CRIE 1S-12 P-CA-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — Stainless Variable Speed. Stainless steel EN 1.4301 (304) with integrated variable frequency drive. Nominal performance: 4.8US gpm at 226.2ft. Rated 200-240V, 1.0-Phase, 60 Hz.

Power
0.75HP
Voltage
200-240V
Phase
1.0-Phase
Max Flow
4.8US gpm
Max Head
226.2ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRIE 1S-12 P-CA-A-V-HQQV
Series: CRIE
Model Code: CRIE 1S-12 P-CA-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: PN 25
Technical Specifications
Model Number 99515912
Product Series CRIE
Series Description Vertical Multistage Centrifugal Pump — Stainless Variable Speed
Power 0.75HP
Voltage 200-240V
Phase 1.0-Phase
Frequency 60 Hz
Motor Speed 360-4000rpm
Pump Speed 3405rpm
Full Load Current 3,45-2,9A
Motor Type 71A
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 85.3%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 4.8US gpm
Nominal Head 226.2ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 122°F
Inlet Connection DN 32
Outlet Connection DN 32
Pipe Pressure Rating PN 25
Pipe Standard FLEXICLAMP
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQV
Approvals / Certifications CE, UKCA, SEPRO, RCM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 200-240V, 1.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRIE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRIE Series
✓ Product Data Sheet — CRIE 1S-12 P-CA-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5713830361733
Approvals CURUS
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal HQQV
Config. file no 98502700
Connect code CA
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 68.8 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 328.8 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.853
Motor standard NEMA
Motor type 71A
Net weight 57.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.98
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 3464 rpm
Pump version P
Pumped liquid Water
Rated current 3.45-2.90 A
Rated flow 4.84 US gpm
Rated head 215.9 ft
Rated power - P2 0.55 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 12
Standard NEMA
Type 71A
Type of connection FlexiClamp
Version P

Motor Curves

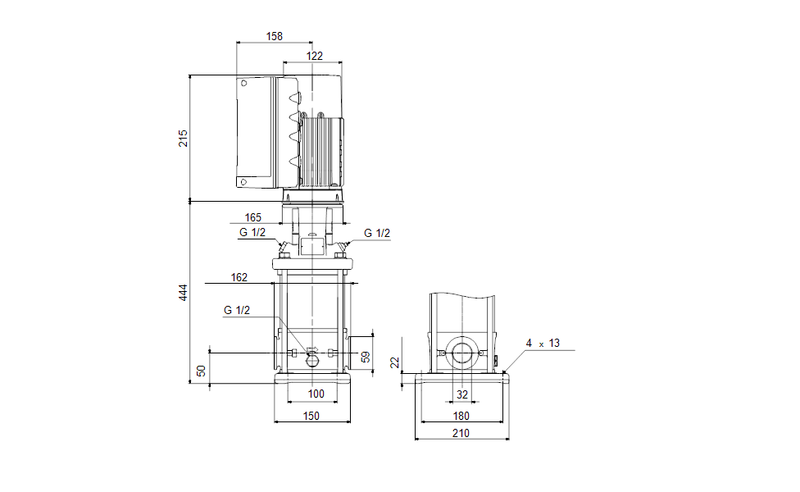

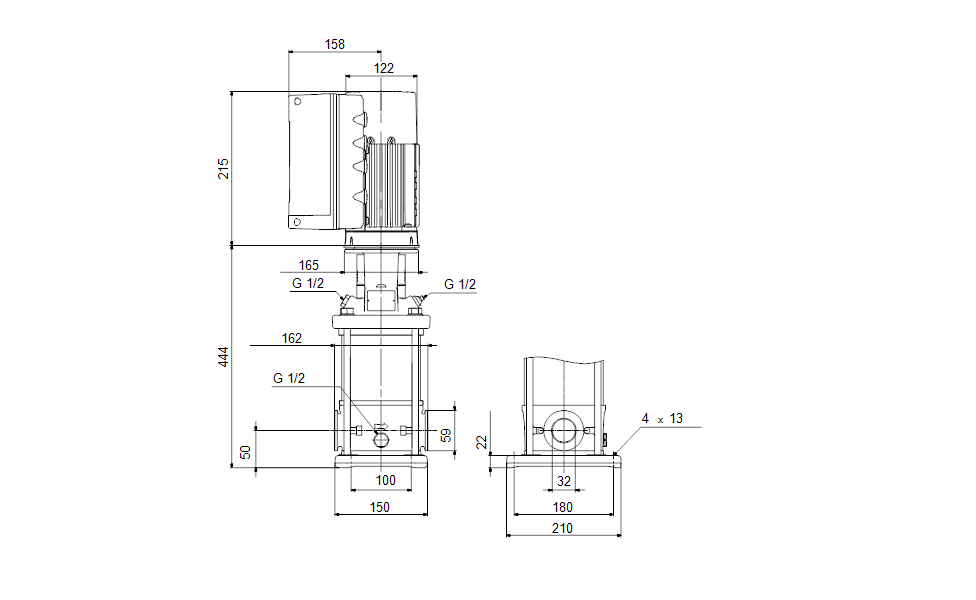

Dimensional Drawing

DWiring Diagram
