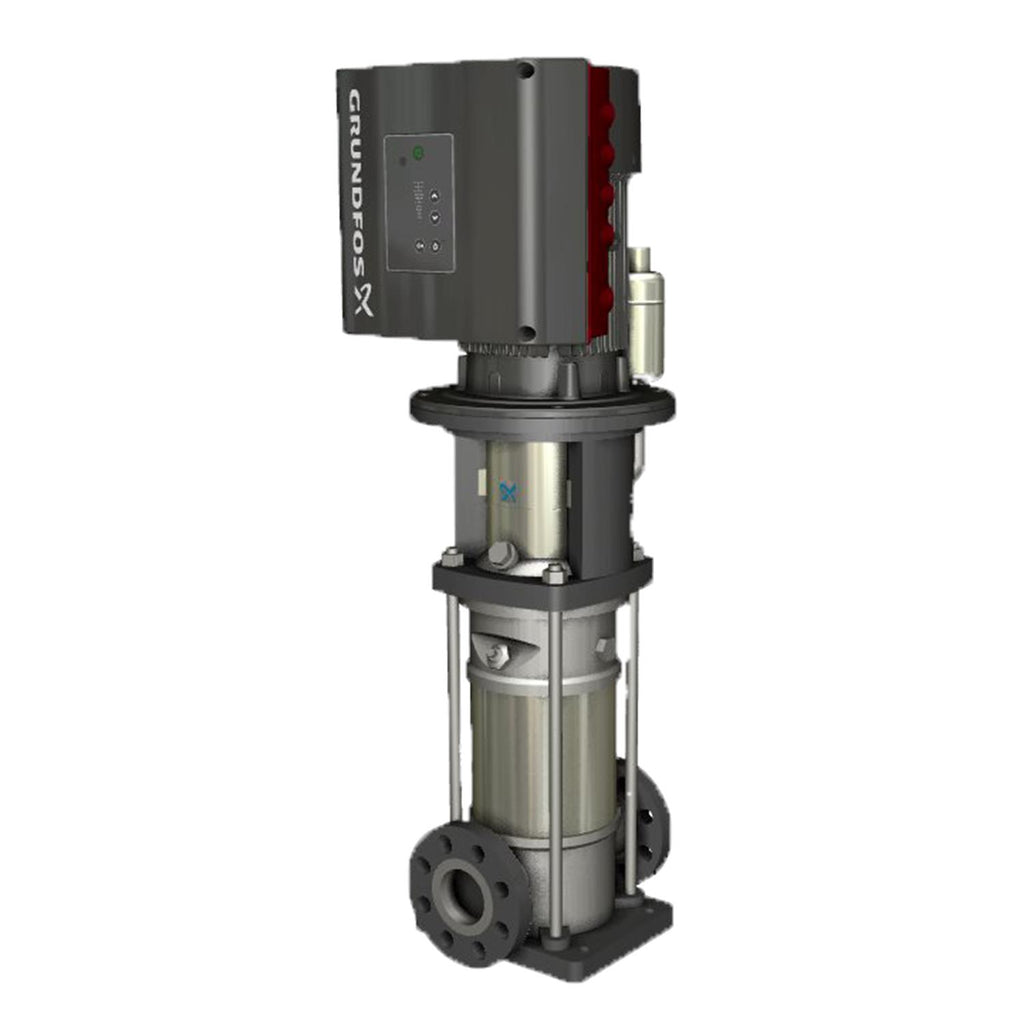

Grundfos 99377610 - CRIE 15-2 FK-FGJ-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99377610

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99377610 - CRIE 15-2 FK-FGJ-A-F-HQQE is a vertical multistage centrifugal pump used in industrial and commercial systems, suited for service technicians and plant maintenance teams.

Key features

  • Manufactured by Grundfos for industrial applications and service replacement
  • Vertical, inline multistage centrifugal design for higher pressure capability
  • Compact vertical footprint provides space-saving installation and reliable flow control

Applications

Commonly used for high-pressure water transfer, boiler feed, process water circulation, and general industrial and commercial pumping where multistage pressure is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99377610

EAN 5713828123916
Actual impeller diameter 4.13 in
Approvals CURUS
Built-in motor protection ELEC
Code for rubber F
Code for shaft seal HQQE
Config. file no 99074199
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.42
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 300.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 122 °F
Maximum head 153.6 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Net weight 185.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.91-0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3482 rpm
Pump version FK
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 90.3 US gpm
Rated head 131.2 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type 132E
Type of connection DIN / ANSI / JIS
Version FK

Motor Curves

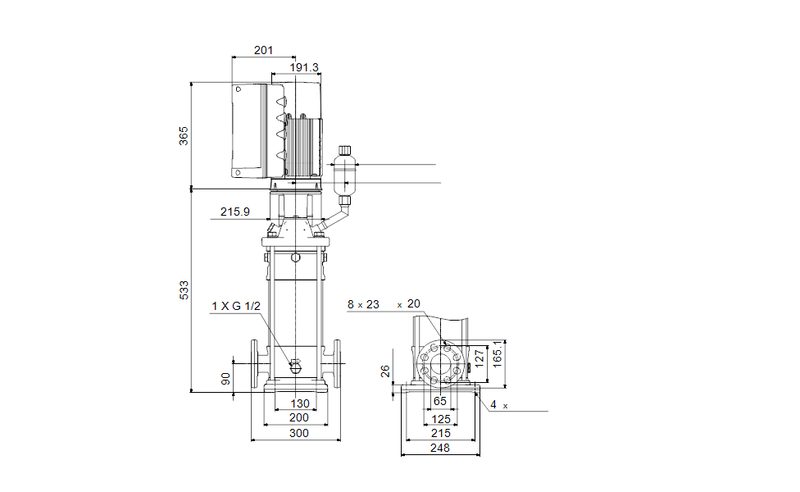

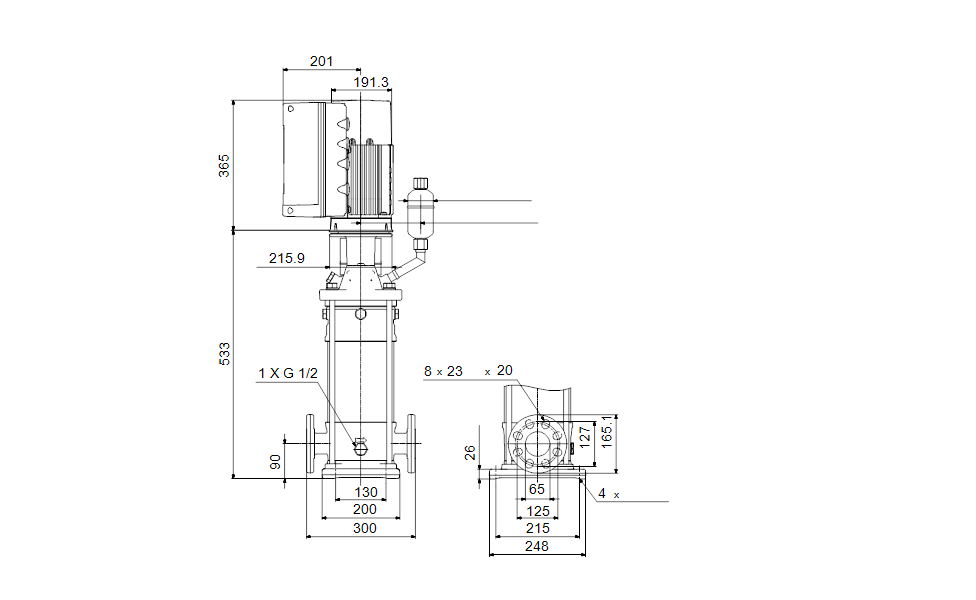

Dimensional Drawing

DWiring Diagram
