Description

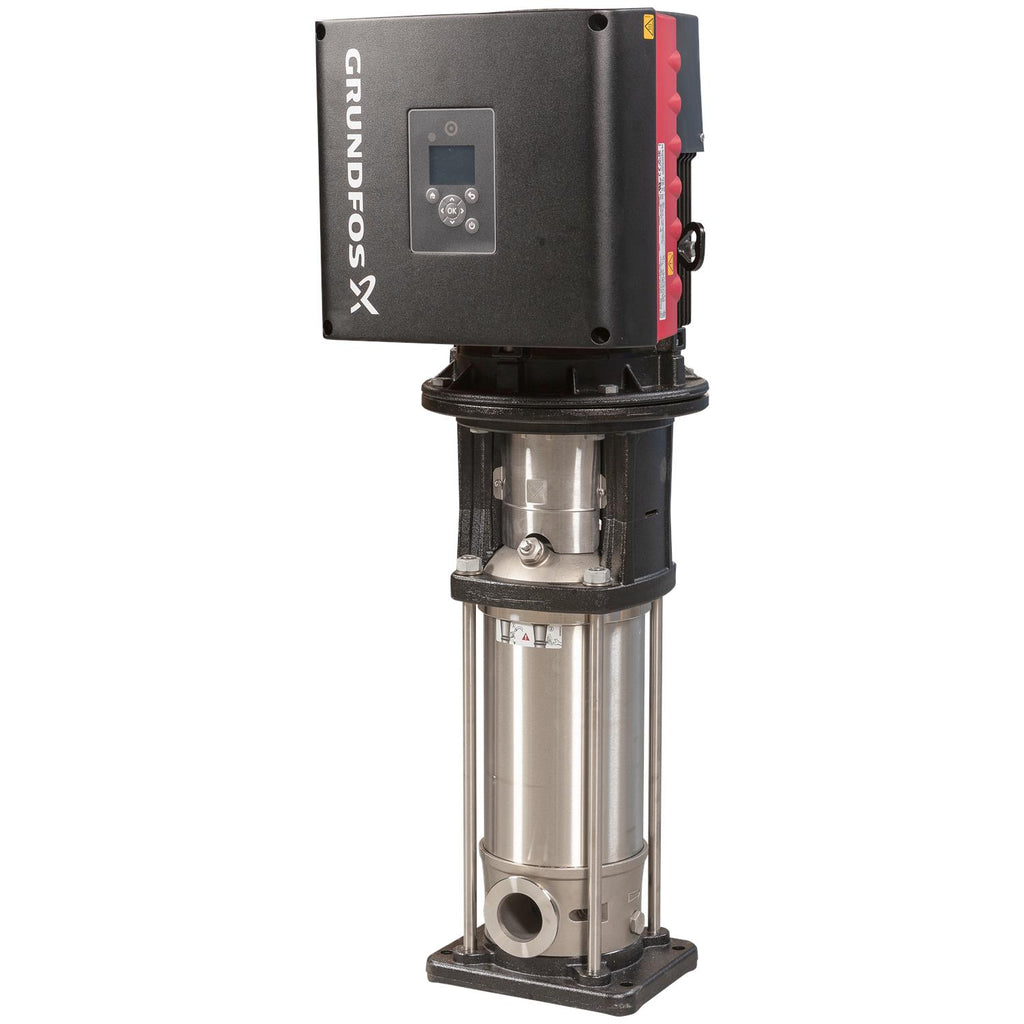

The Grundfos 98389345 (CRIE 1-9 A-CA-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — Stainless Variable Speed. Stainless steel EN 1.4301 (304) with integrated variable frequency drive. Nominal performance: 9.38US gpm at 197.8ft. Rated 200-240V, 1-Phase, 50, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 98389345 |
| Product Series | CRIE |
| Series Description | Vertical Multistage Centrifugal Pump — Stainless Variable Speed |
| Power | 1HP |
| Voltage | 200-240V |
| Phase | 1-Phase |
| Frequency | 50, 60 Hz |
| Motor Speed | 360-4000rpm |
| Pump Speed | 3458rpm |
| Full Load Current | 4,7-3,9A |
| Motor Type | 80A |
| Motor Protection | ELEC |
| Motor Efficiency Class | IE5 |
| Motor Efficiency | 85.2% |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 9.38US gpm |
| Nominal Head | 197.8ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 122°F |
| Inlet Connection | DN 32 |
| Outlet Connection | DN 32 |
| Pipe Pressure Rating | PN 25 |
| Pipe Standard | FLEXICLAMP |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQE |
| Approvals / Certifications | CE, EAC, UKCA, CURUS, SEPRO |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 200-240V, 1-Phase, 50, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRIE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5711494176090
- Applications
- Industrial applications
- Approvals
- CE
- Bearing 1
- SIC
- Built-in motor protection
- ELEC
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Config. file no
- 98498326
- Connect code
- CA
- Connection
- PN 25
- Control panel
- Standard
- Curve tolerance
- ISO9906:2012 3B
- Density
- 998.2 kg/m³
- Enclosure class (IEC 34-5)
- IP55
- Flange size for motor
- FT100
- Frequency converter
- Built-in
- Function Module
- FM300 - Advanced
- Gross weight
- 26.1 kg
- IE Efficiency class
- IE5
- Impeller
- Stainless steel
- Impellers
- 0
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -20 .. 120 °C
- Low NPSH
- N
- Mains frequency
- 50 / 60 Hz
- Material code
- A
- Material Pricing Group
- 31
- Max pressure at stated temp
- 25 bar / 120 °C
- Maximum ambient temperature
- 50 °C
- Maximum head
- 79.7 m
- Maximum operating pressure
- 25 bar
- Minimum efficiency index, MEI ≥
- 0.7
- Model
- A
- Motor
- Standard motor size
- Motor efficiency at full load 1
- 0.852
- Motor standard
- IEC
- Motor type
- 80A
- Net weight
- 23.2 kg
- Number of reduced-diameter impellers
- 0
- Power (P2) required by pump
- 0.75 kW
- Power factor 1
- 0.99
- Pressure rating for connection
- PN 25
- Pressure sensor
- N
- Product family
- CRIE 1
- Pump
- 0.75 kW
- Pump speed on which pump data are based
- 3400 rpm
- Pump version
- A
- Pumped liquid
- Water
- Rated current
- 4.70-3.90 A
- Rated flow
- 2.2 m³/h
- Rated head
- 58.7 m
- Rated power - P2
- 0.75 kW
- Rated speed
- 360-4000 rpm
- Rated voltage
- 1 x 200-240 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 20 °C
- Size of inlet connection
- DN 32
- Size of outlet connection
- DN 32
- Stages
- 9
- Standard
- IEC
- Terminal box position
- 6
- Type
- 80A
- Type of connection
- FlexiClamp
- Version
- A

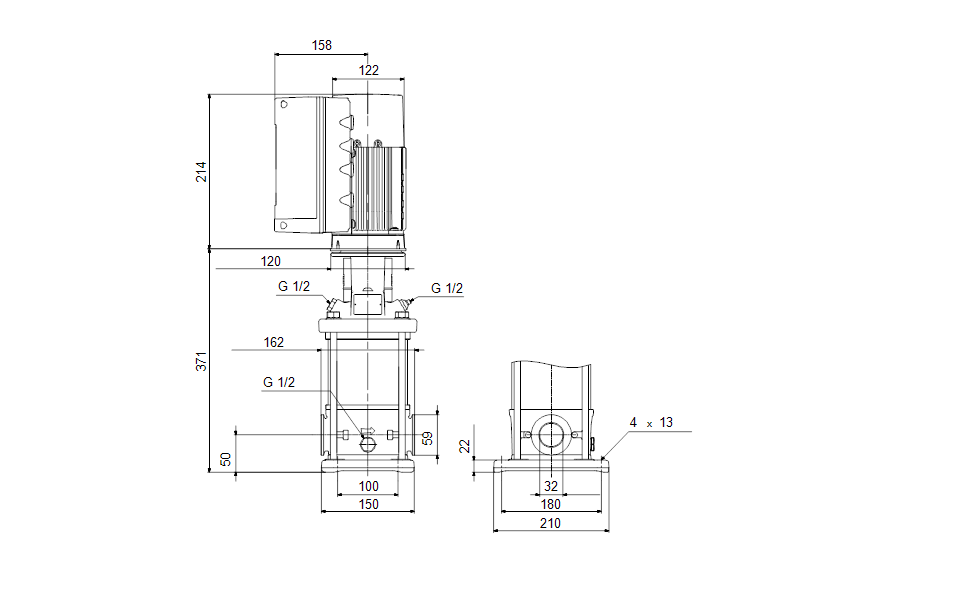

Dimensional Drawing
Wiring Diagram
