Grundfos 96546344 - CRI 5-9 A-CA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96546344

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96546344 is a vertical, multistage centrifugal pump assembly suited for industrial and commercial fluid-handling applications. This OEM unit is intended for technicians and maintenance teams needing a direct replacement for the CRI 5-9 A-CA-A-E-HQQE model.

Key features

  • Vertical, multistage centrifugal design for high head and compact footprint
  • Service-special designation and compatibility with Grundfos centrifugal pump lines
  • Reliable hydraulic performance to support system pressure stability and extended service intervals

Applications

Typical uses include boiler feed, water supply and transfer, pressure boosting, HVAC systems, and general industrial process support.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96546344

EAN 5700398491903
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT115
Frequency converter NONE
Gross weight 40.2 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 306.1 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor standard IEC
Net weight 34.4 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated flow 30.4 US gpm
Rated head 223.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 9
Standard IEC
Type of connection FlexiClamp
Version A

Motor Curves

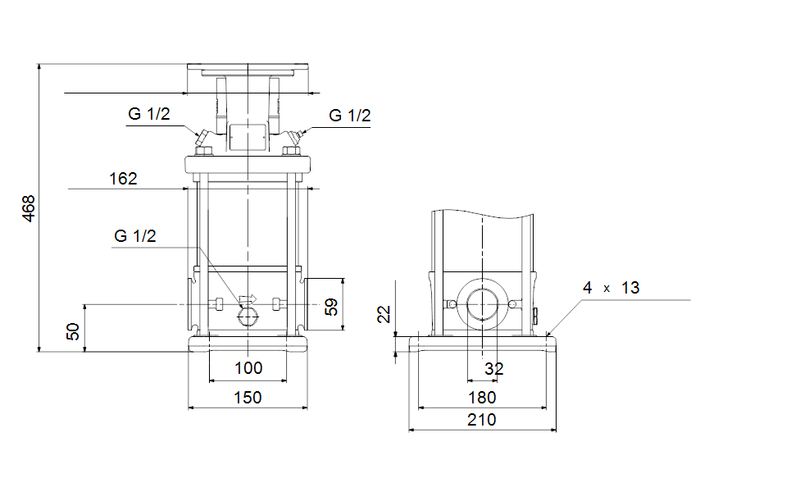

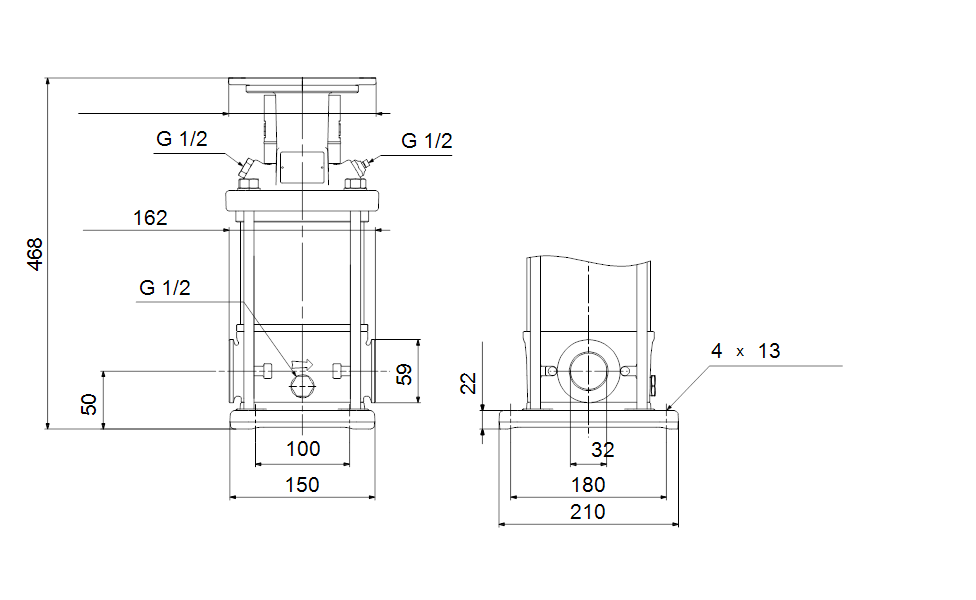

Dimensional Drawing
