Grundfos 98045137 - CRI 5-7 P-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98045137

Price:
Sale price$4,118.06
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98045137 - CRI 5-7 P-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, suitable for demanding environments. With its advanced design, the CRI 5-7 P-FGJ-A-E-HQQE delivers exceptional performance while maintaining energy efficiency, making it a smart investment for your pumping needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710628033223
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 55.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum head 235.2 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 41.1 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3452 rpm
Pump version P
Rated flow 30.4 US gpm
Rated head 170.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 7
Standard NEMA
Type of connection DIN / ANSI / JIS
Version P

Motor Curves

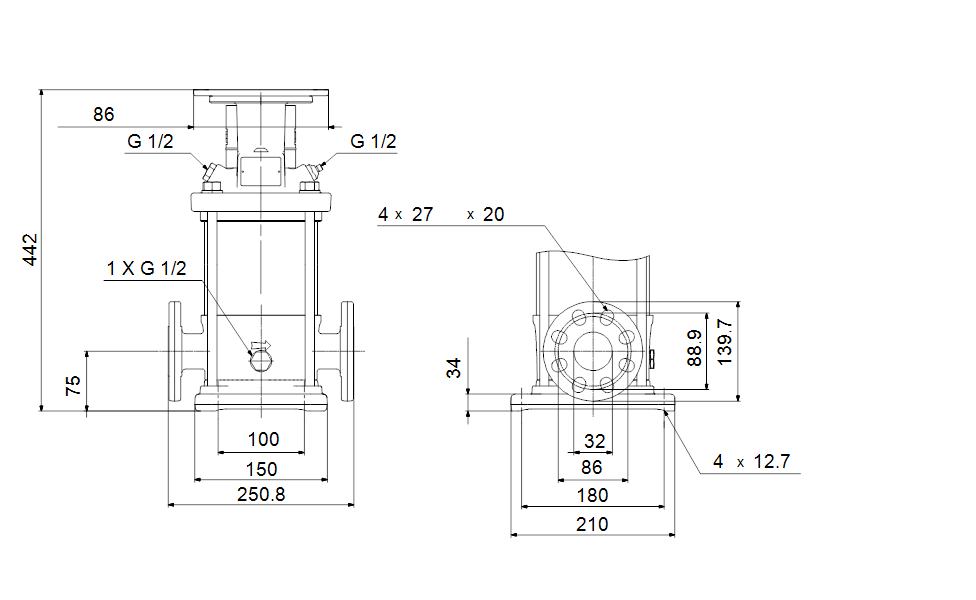

Dimensional Drawing
