Grundfos 99112757 - CRI 5-11 A-P-T-E-HUBE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99112757

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99112757 - CRI 5-11 A-P-T-E-HUBE is a vertical, multistage centrifugal pump designed for industrial and commercial pumping systems. This replacement unit suits technicians and service teams maintaining high-pressure inline pump assemblies.

Key features

  • Manufactured by Grundfos for use in various industrial applications
  • Configured as a vertical, multistage centrifugal design for high-pressure, inline service
  • Delivers reliable boosting and pressure stability for process and building systems

Applications

Common uses include booster stations, HVAC chilled/hot water circulation, high-pressure process feed, water supply systems, and industrial pressure boosting where compact vertical multistage pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99112757

EAN 5712606998517
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HUBE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 101.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 32 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 366.2 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT130
Motor efficiency at 1/2 load 88.9-85.4 %
Motor efficiency at 3/4 load 88.0-87.8 %
Motor efficiency at full load 1 87.5-88.5 %
Motor standard IEC
Motor type 100DA
Net weight 91.8 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.91-0.84
Pressure rating for connection PN 50
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 3514 rpm
Pump version A
Pumped liquid Water
Rated current 6.20-5.40 A
Rated flow 30.4 US gpm
Rated head 274.3 ft
Rated power - P2 3 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 380-480D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 11
Standard IEC
Starting current 860-1100 %
Type 100DA
Type of connection PJE
Version A

Motor Curves

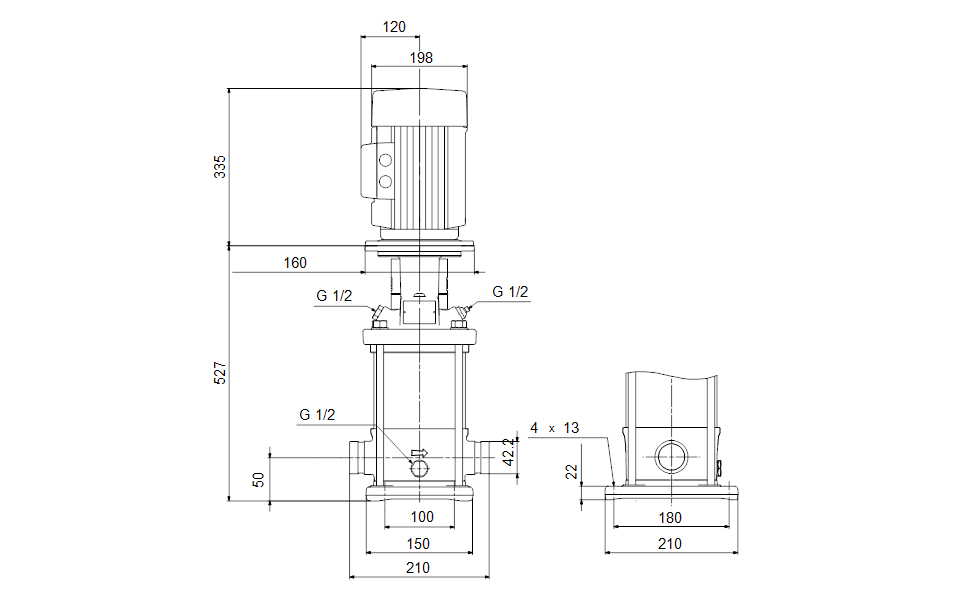

Dimensional Drawing

DWiring Diagram
