Grundfos 98554626 - CRI 5-10 FK-FGJ-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98554626

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98554626 is a vertical, multistage centrifugal pump designed for industrial and commercial fluid handling. Technicians and maintenance teams install this CRI series unit where reliable, high-pressure circulation is required.

Key features

  • Built for industrial applications and multistage operation
  • Vertical, inline centrifugal design common to high-pressure systems
  • Delivers consistent pressure and efficient performance for recirculation and transfer tasks

Applications

Suitable for boiler feed, water supply, pressure boosting, HVAC circulation, and other high-pressure multistage pumping needs.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98554626

EAN 5711497072627
Actual impeller diameter 2.88 in
Approvals CURUS
Built-in motor protection PTC
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 2.88 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 168.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 140 °F
Maximum head 322.5 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard NEMA
Motor type 112CA
Net weight 150.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.89-0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version FK
Pumped liquid Water
Rated current 14
Rated flow 30.4 US gpm
Rated head 242.1 ft
Rated power - P2 3.7 kW
Rated speed 3525-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 10
Standard NEMA
Starting current 1000-1470 %
Type 112CA
Type of connection DIN / ANSI / JIS
Version FK

Motor Curves

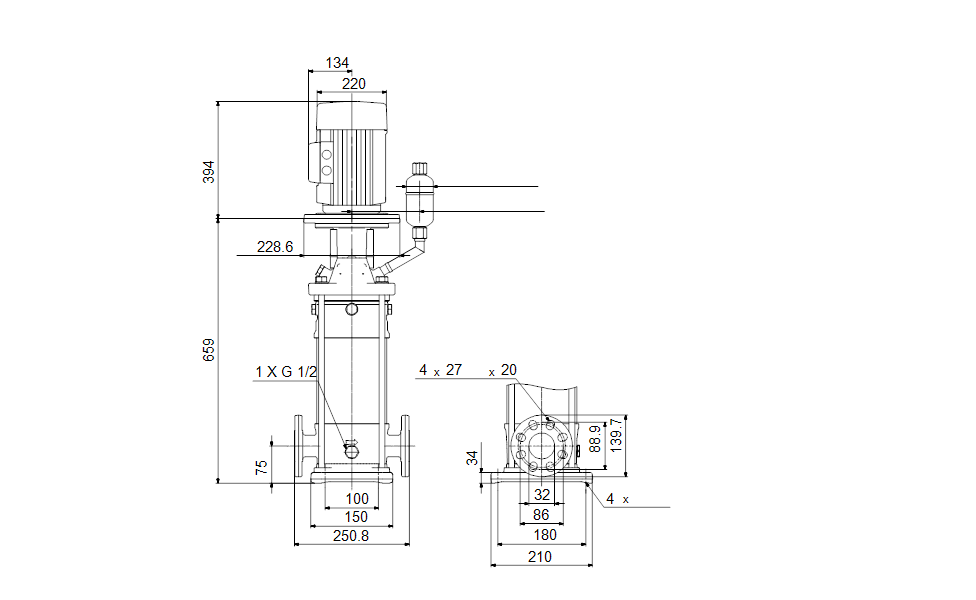

Dimensional Drawing

DWiring Diagram
