Grundfos 98250360 - CRI 3-12 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98250360

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98250360 - CRI 3-12 A-P-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5711492084045
Approvals EAC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT115
Frequency converter NONE
Gross weight 86.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 379 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor efficiency at 1/2 load 89.2-86.3 %
Motor efficiency at 3/4 load 89.5-88.5 %
Motor efficiency at full load 1 86.5-86.5 %
Motor standard IEC
Motor type 90HA
Net weight 77.1 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.88-0.80
Pressure rating for connection PN 50
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated current 7
Rated flow 15.4 US gpm
Rated head 288.1 ft
Rated power - P2 2.2 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 230-277D/400-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 12
Standard IEC
Starting current 820-1050 %
Type 90HA
Type of connection PJE
Version A

Motor Curves

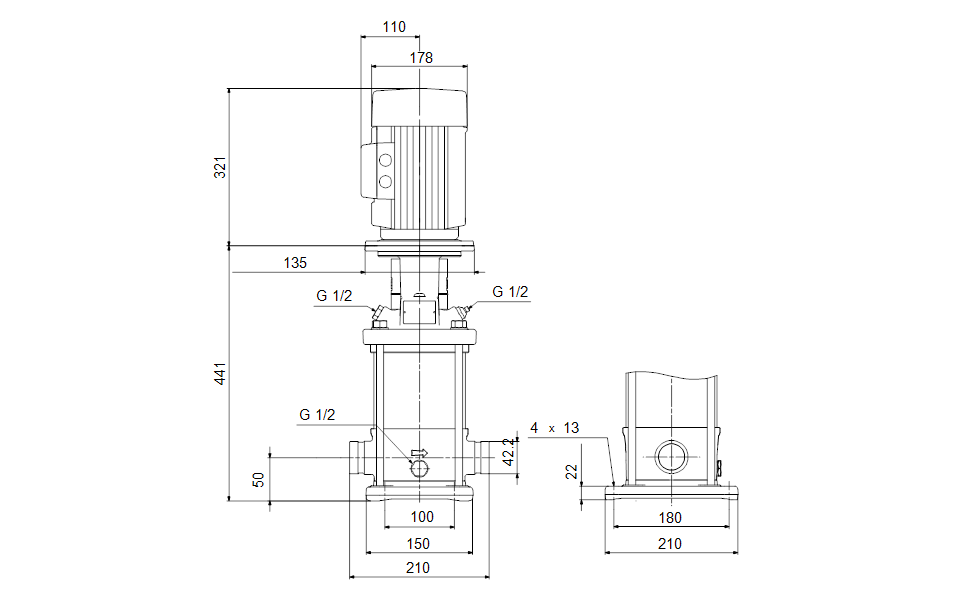

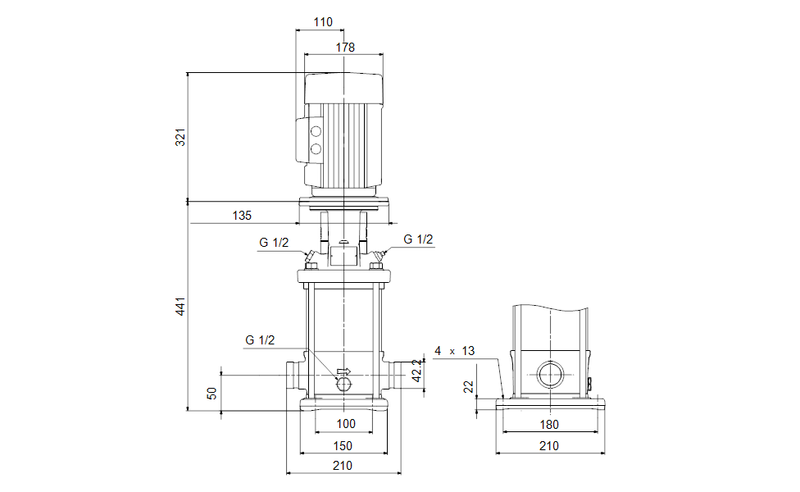

Dimensional Drawing

DWiring Diagram
