Grundfos 97923862 - CRI 3-10 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97923862

Price:
Sale price$5,805.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97923862 - CRI 3-10 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97923862 - CRI 3-10 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRI 3-10 A-P-A-E-HQQE model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, and it is suitable for both clean and slightly contaminated liquids.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help you find the perfect solution for your needs.

EAN 5710626487776
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 56C
Frequency converter NONE
Gross weight 77.9 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 312.7 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 86.3-85.0 %
Motor efficiency at 3/4 load 87.4-86.8 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard NEMA
Motor type 90GB
Net weight 66.9 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.81-0.78
Pressure rating for connection PN 50
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3452 rpm
Pump version A
Pumped liquid Water
Rated current 6
Rated flow 15.4 US gpm
Rated head 230.7 ft
Rated power - P2 1.5 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 10
Standard NEMA
Starting current 800-910 %
Type 90GB
Type of connection PJE
Version A

Motor Curves

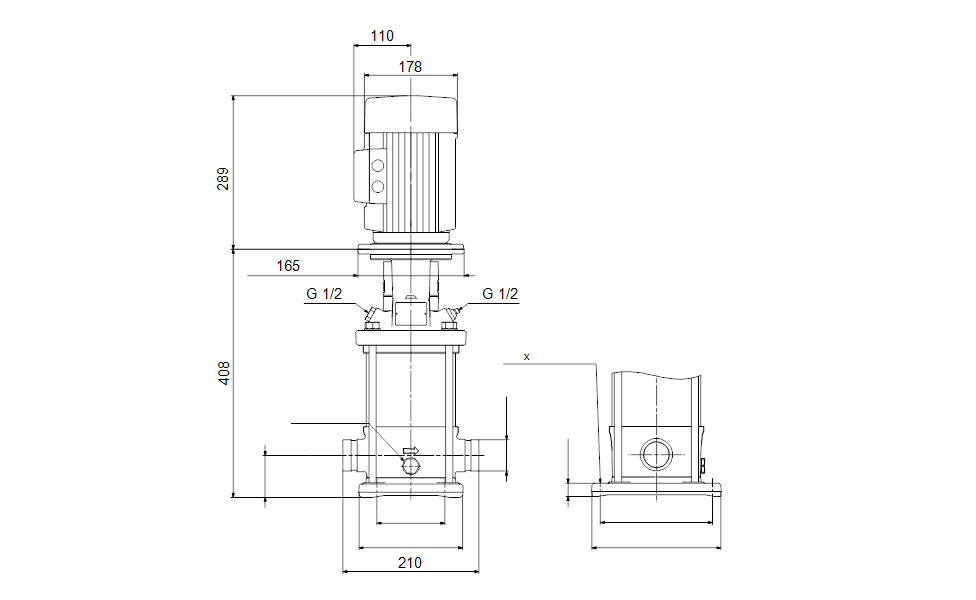

Dimensional Drawing

DWiring Diagram
