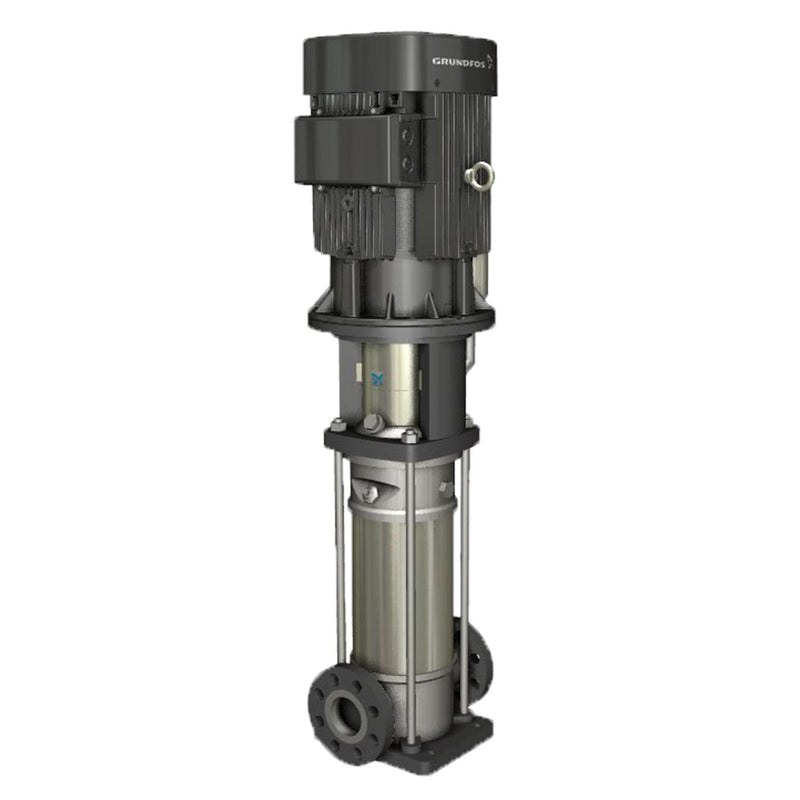

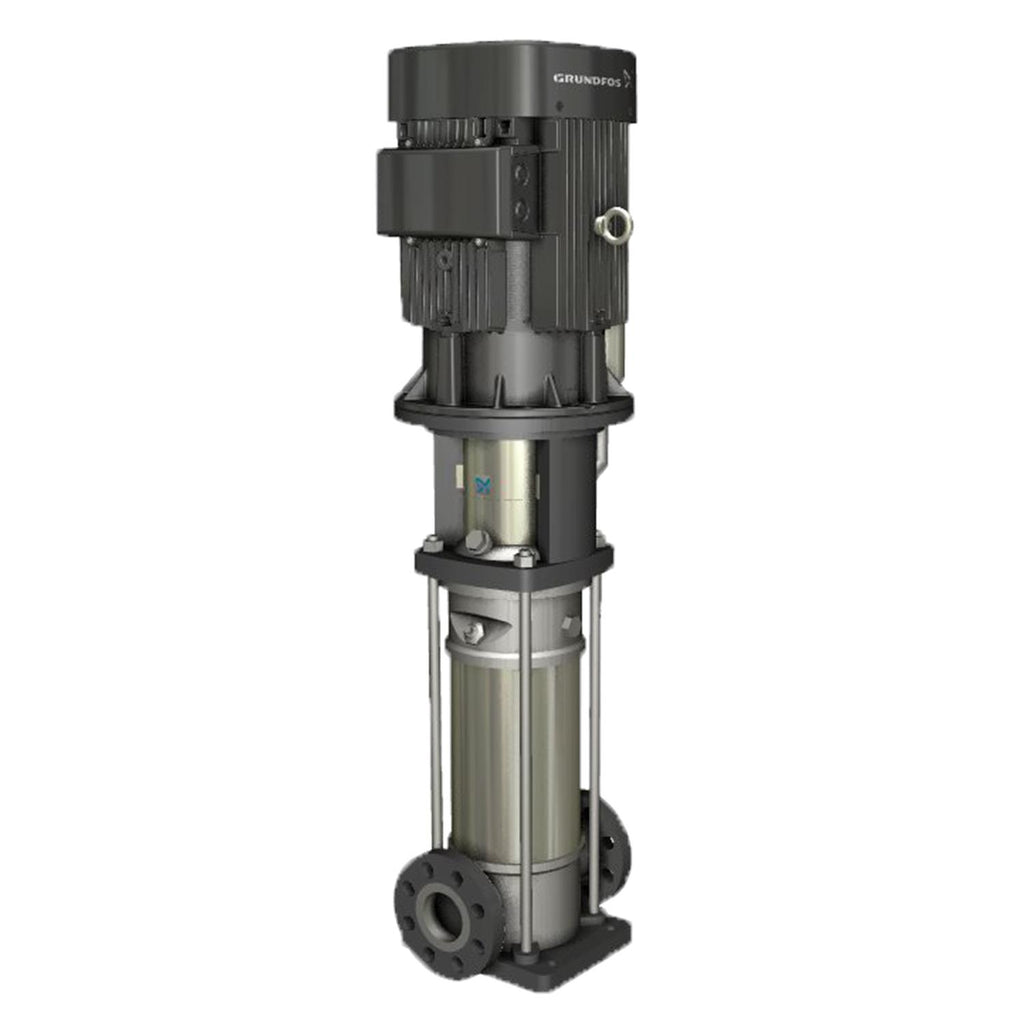

Grundfos 96864465 - CRI 20-10 F-FGJ-A-F-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 96864465

Price:
Sale price$36,413.89
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRI 20-10 F-FGJ-A-F-HQQE · Vertical Multistage Centrifugal Pump — Stainless Steel
CRI25HP230/460V3.0-Phase60 HzIE3 / NEMA PremiumTEFCStainless steel

The Grundfos 96864465 (CRI 20-10 F-FGJ-A-F-HQQE) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design. Nominal performance: 111US gpm at 561.4ft. Rated 230/460V, 3.0-Phase, 60 Hz.

Power
25HP
Voltage
230/460V
Phase
3.0-Phase
Max Flow
111US gpm
Max Head
561.4ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRI 20-10 F-FGJ-A-F-HQQE
Series: CRI
Model Code: CRI 20-10 F-FGJ-A-F-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
Model Number 96864465
Product Series CRI
Series Description Vertical Multistage Centrifugal Pump — Stainless Steel
Power 25HP
Voltage 230/460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3530rpm
Pump Speed 3521rpm
Full Load Current 31.5/31.5A
Motor Type BALDOR
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 93%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 111US gpm
Nominal Head 561.4ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 356°F
Max Ambient Temperature 104°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard DIN / ANSI / JIS
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Approvals / Certifications CURUS
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 356°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRI Series
✓ Product Data Sheet — CRI 20-10 F-FGJ-A-F-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700312156840
Actual impeller diameter 4.13 in
Approvals CURUS
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) IP54
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 587.0 lb
IE efficiency IE3 93%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 698.9 ft
Maximum operating pressure 25 bar
Model A
Motor 284TC
Motor efficiency at full load 1 0.93
Motor standard NEMA
Motor type BALDOR
Net weight 463.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 18.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 18.5 kW
Pump speed on which pump data are based 3521 rpm
Pump version F
Pumped liquid Water
Rated current 56/28 A
Rated flow 111 US gpm
Rated head 561.4 ft
Rated power - P2 18.5 kW
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard NEMA
Type BALDOR
Type of connection DIN / ANSI / JIS
Version F

Motor Curves

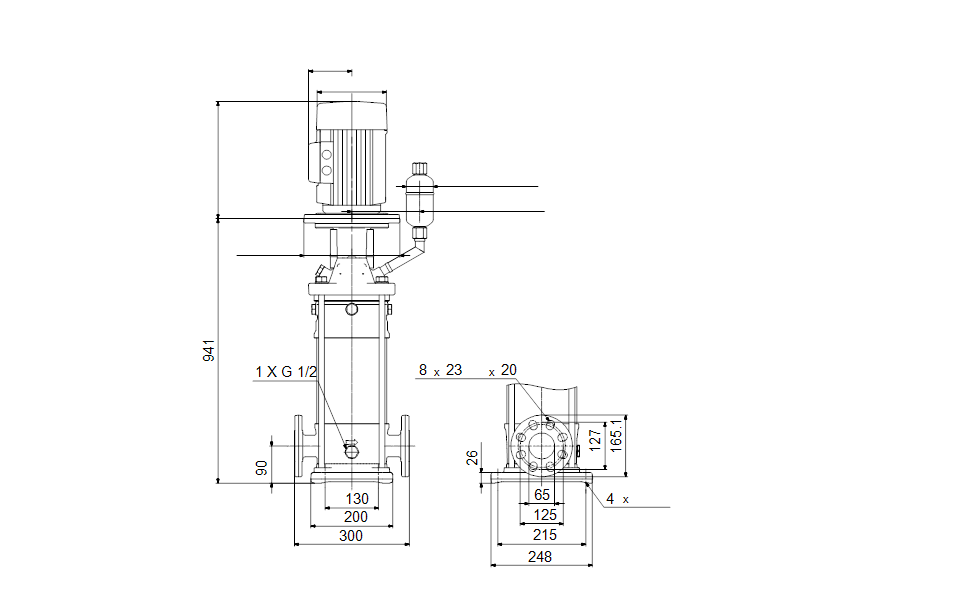

Dimensional Drawing

DWiring Diagram
