Grundfos 96739709 - CRI 20-1 FZ-FGJ-A-F-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96739709

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRI 20-1 FZ-FGJ-A-F-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700838232684
Approvals CE
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FT100
Frequency converter NONE
Gross weight 185.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 140 °F
Maximum head 45.93 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT100
Motor efficiency at 1/2 load 85.4-82.8 %
Motor efficiency at 3/4 load 84.6-84.0 %
Motor efficiency at full load 1 82.7-82.7 %
Motor standard IEC
Motor type 80C
Net weight 137.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.83-0.76
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 2853 rpm
Pump version FZ
Pumped liquid Water
Rated current 4.35/2.50 A
Rated flow 92.5 US gpm
Rated head 32.48 ft
Rated power - P2 1.1 kW
Rated speed 2840-2870 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard IEC
Starting current 450-500 %
Type 80C
Type of connection DIN / ANSI / JIS
Version FZ

Motor Curves

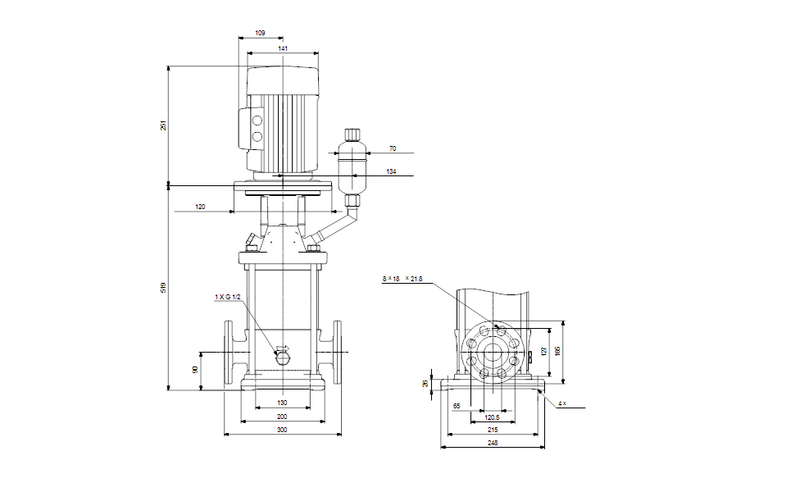

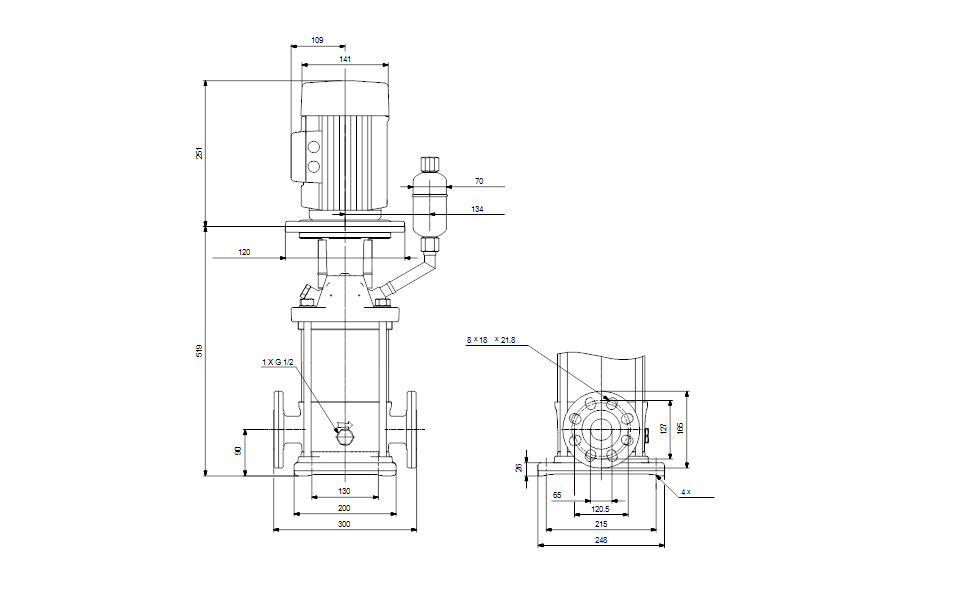

Dimensional Drawing

DWiring Diagram
