Grundfos 97918692 - CRI 1S-3 B-CA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97918692

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97918692 - CRI 1S-3 B-CA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, even in demanding environments. Its multistage design allows for increased pressure capabilities, making it suitable for applications requiring consistent and reliable performance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710626395583
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flange size for motor 56C
Frequency converter NONE
Gross weight 59.2 lb
IE efficiency 0.62
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 85.63 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.62
Motor standard NEMA
Motor type BALDOR
Net weight 48.2 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3436 rpm
Pump version B
Pumped liquid Water
Rated current 7.4/3.7 A
Rated flow 4.84 US gpm
Rated head 59.39 ft
Rated power - P2 0.37 kW
Rated speed 3450 rpm
Rated voltage 1 x 115/230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.6
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 3
Standard NEMA
Type BALDOR
Type of connection FlexiClamp
Version B

Motor Curves

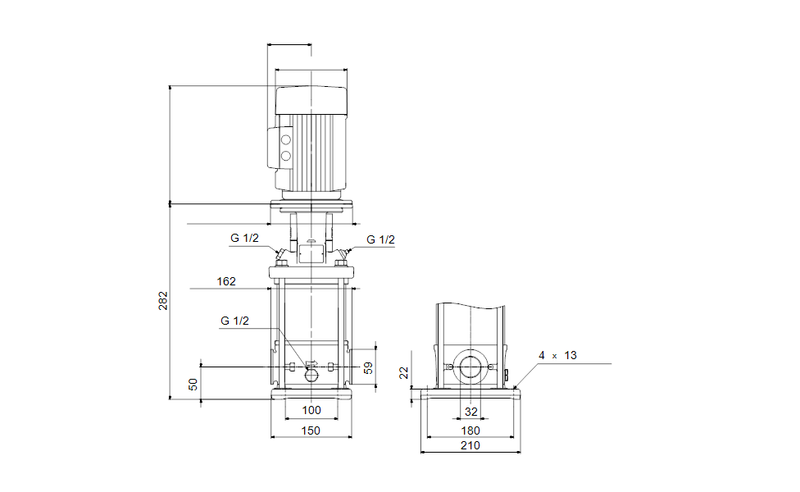

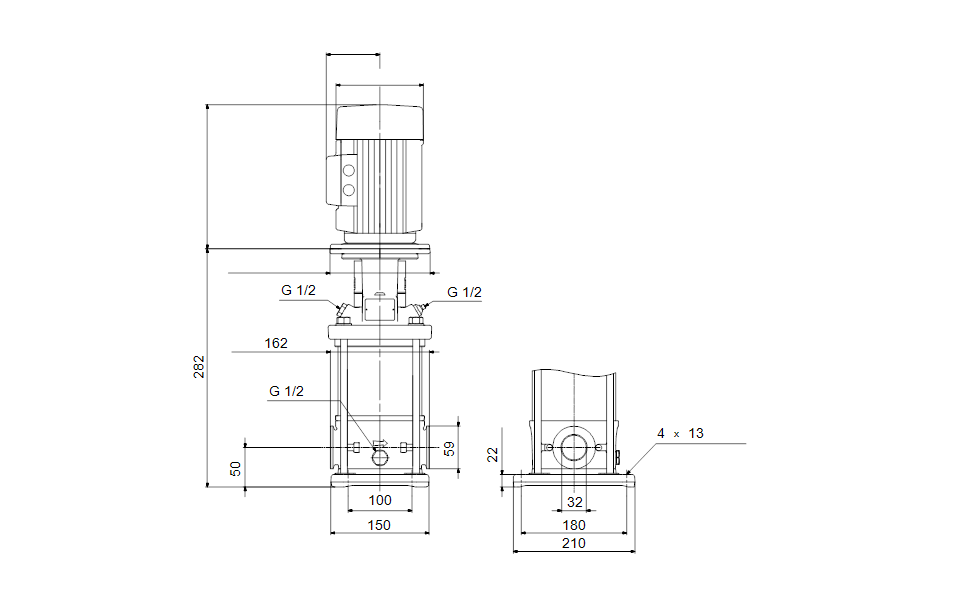

Dimensional Drawing

DWiring Diagram
