Grundfos 98174725 - CRI 15-8 F-FGJ-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98174725

Price:
Sale price$26,841.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98174725 - CRI 15-8 F-FGJ-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98174725 - CRI 15-8 F-FGJ-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRI 15-8 model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for various industries.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711490904512
Actual impeller diameter 4.13 in
Approvals CURUS
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) IP54
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 496.0 lb
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 528.2 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor efficiency at 1/2 load 91-91 %
Motor efficiency at 3/4 load 91.6-91.6 %
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
Net weight 373.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Power factor 1 0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3444 rpm
Pump version F
Pumped liquid Water
Rated current 38
Rated flow 90.3 US gpm
Rated head 407.2 ft
Rated power - P2 11 kW
Rated speed 3520 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard NEMA
Starting current 6.8
Type BALDOR
Type of connection DIN / ANSI / JIS
Version F

Motor Curves

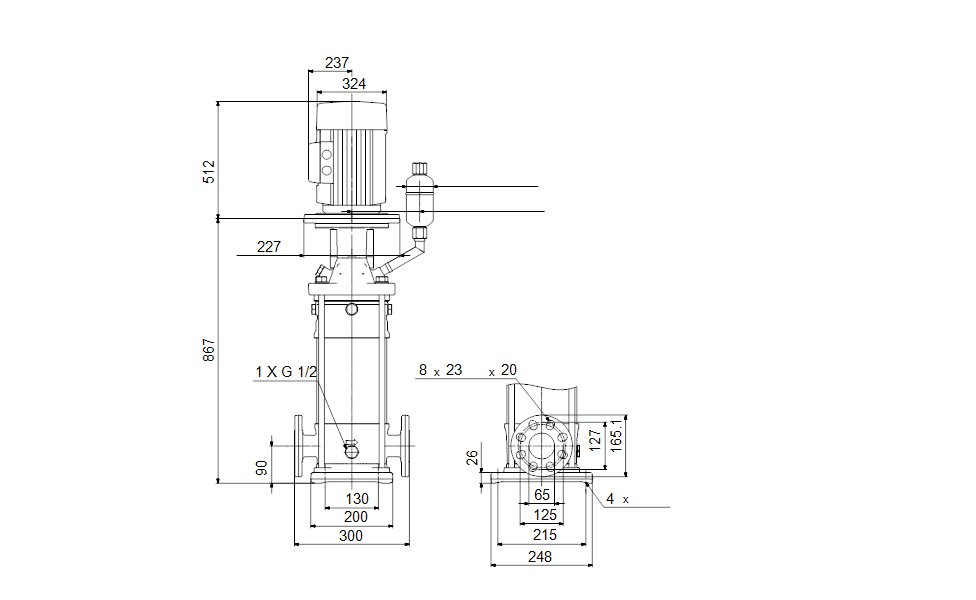

Dimensional Drawing

DWiring Diagram
