Grundfos 98058023 - CRI 15-8 FK-FGJ-A-F-HQQE | Vertical | Multistage | Centrifugal

GrundfosSKU: 98058023

Price:
Sale price$22,290.28
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRI 15-8 FK-FGJ-A-F-HQQE · Vertical Multistage Centrifugal Pump — Stainless Steel
CRI

The Grundfos 98058023 (CRI 15-8 FK-FGJ-A-F-HQQE) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design.

Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRI 15-8 FK-FGJ-A-F-HQQE
Series: CRI
Model Code: CRI 15-8 FK-FGJ-A-F-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Technical Specifications
Model Number 98058023
Product Series CRI
Series Description Vertical Multistage Centrifugal Pump — Stainless Steel
Seal Code HQQE
Seal Description Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRI Series
✓ Product Data Sheet — CRI 15-8 FK-FGJ-A-F-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5710628256721
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.93
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 243.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 356 °F
Maximum head 551.9 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor standard NEMA
Net weight 130.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3509 rpm
Pump version FK
Rated flow 90.3 US gpm
Rated head 453.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard NEMA
Type of connection DIN / ANSI / JIS
Version FK

Motor Curves

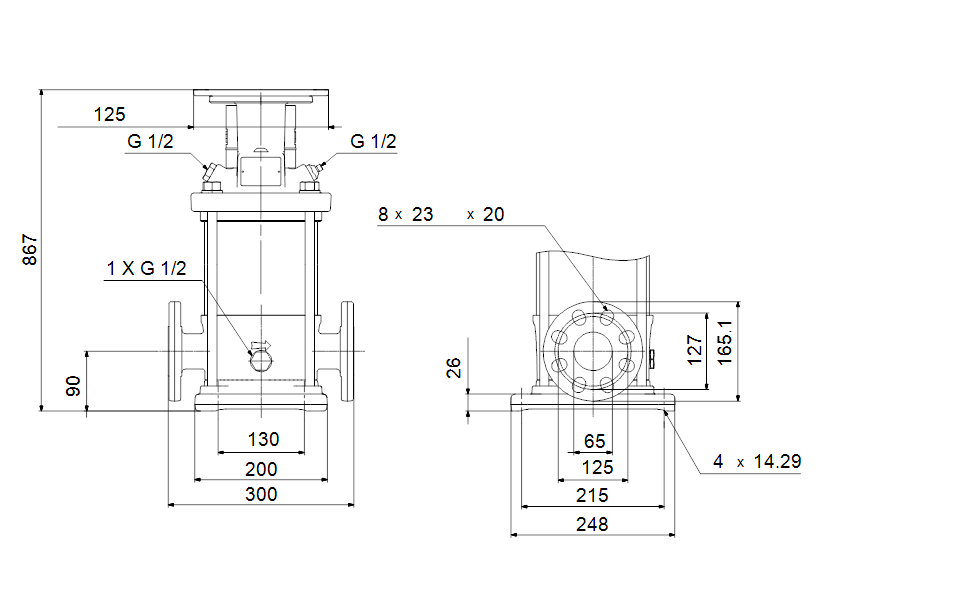

Dimensional Drawing
