Grundfos 96550249 - CRI 15-5 A-FGJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96550249

Price:
Sale price$7,806.94
or Call for most up to date lead times. (781) 281-8905

Description

CRI 15-5 A-FGJ-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5700398649045
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT130
Frequency converter NONE
Gross weight 104.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 231.6 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor standard IEC
Net weight 75.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 2917 rpm
Pump version A
Pumped liquid Water
Rated flow 74.8 US gpm
Rated head 181.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

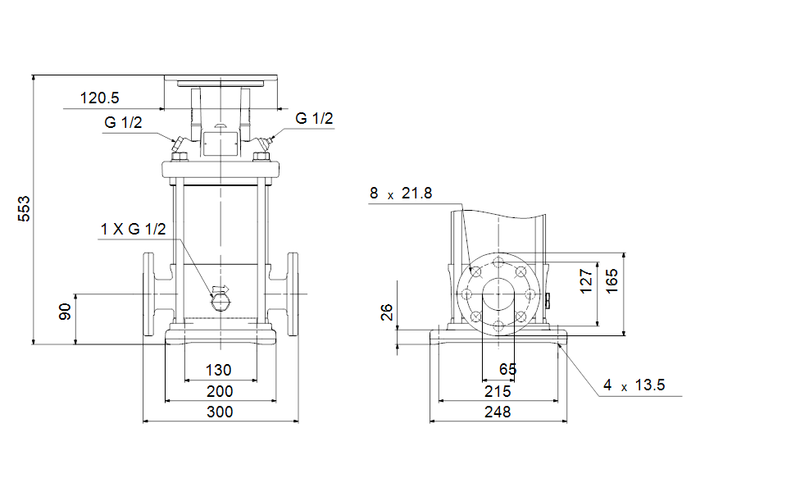

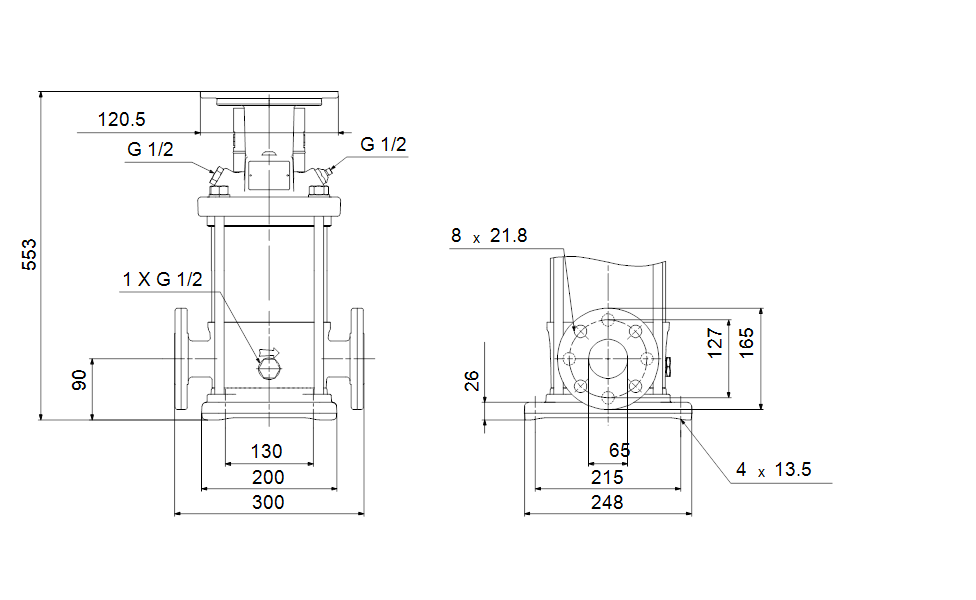

Dimensional Drawing
