Grundfos 97710343 - CRI 15-2 A-FGJ-A-E-OQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97710343

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

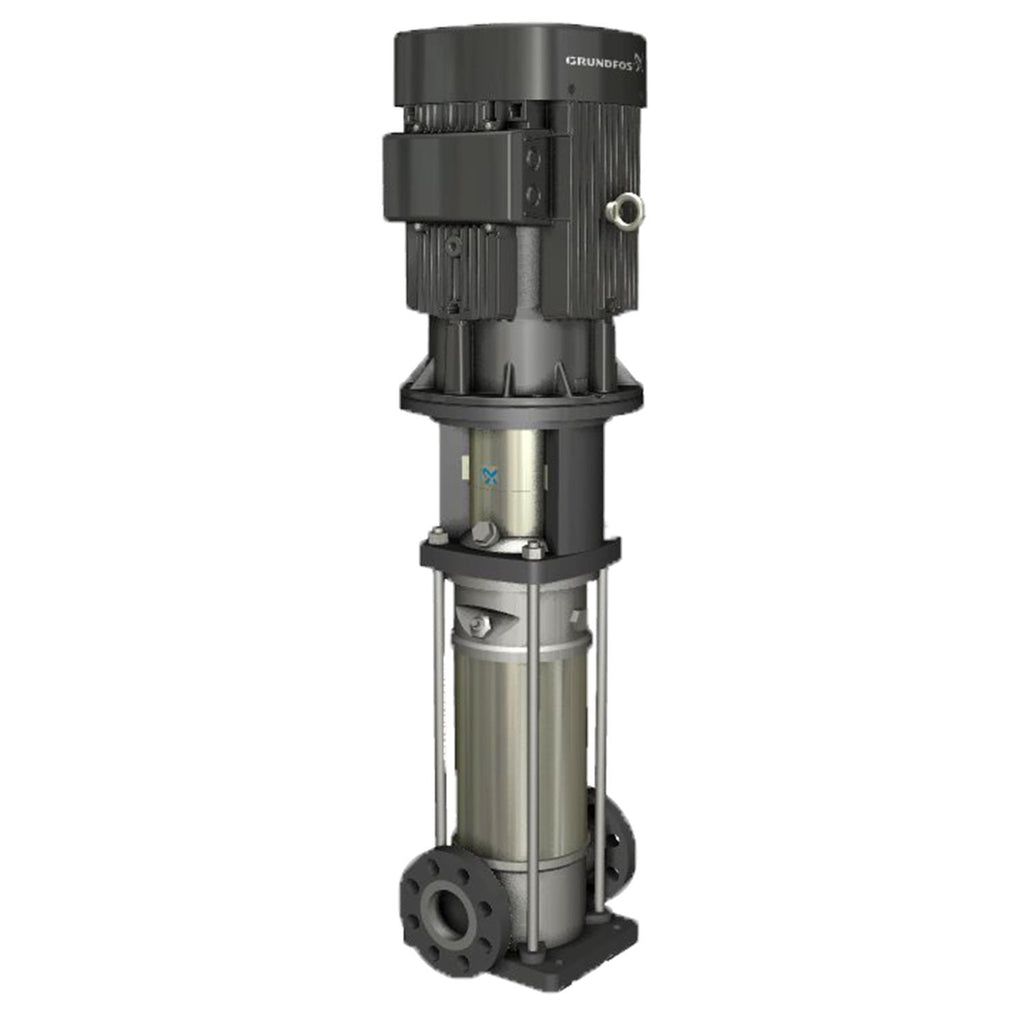

Grundfos CRI 15-2 A-FGJ-A-E-OQQE is a vertical, inline multistage centrifugal pump designed for high-pressure inline service where compact vertical installation is required, suited for commercial and light industrial fluid transfer and boosting applications.

Key features

  • Vertical multistage inline configuration for efficient high-pressure pumping
  • Stainless steel wetted components for corrosion resistance and durability
  • Rigid split coupling and combined DIN-ANSI-JIS flange connections for reliable power transmission and flexible piping options

Applications

Suitable for pressure boosting, boiler feed, cooling circuits, and other high-pressure inline centrifugal duties in commercial and industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97710343

EAN 5710622484892
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber E
Code for shaft seal OQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 108.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 250 °F
Maximum head 135.5 ft
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 92.6 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Rated flow 90.3 US gpm
Rated head 103.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A
