Grundfos 96550254 - CRI 15-10 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96550254

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96550254 - CRI 15-10 A-FGJ-A-E-HQQE is a vertical multistage centrifugal pump intended for industrial and commercial fluid-handling systems; technicians and maintenance teams commonly use this model for high-pressure boosting and inline installations.

Key features

  • Vertical, multistage centrifugal design for compact, high-pressure operation
  • Service-special classification compatible with standard Grundfos replacement parts
  • Engineered for reliable performance in inline and high-pressure applications, reducing downtime

Applications

Typical uses include boiler feed, pressure boosting, industrial process water, municipal and commercial water systems, and OEM service replacements.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96550254

EAN 5700398649090
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FF300
Frequency converter NONE
Gross weight 190.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 462.6 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor standard IEC
Net weight 128.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 2924 rpm
Pump version A
Pumped liquid Water
Rated flow 74.8 US gpm
Rated head 372.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

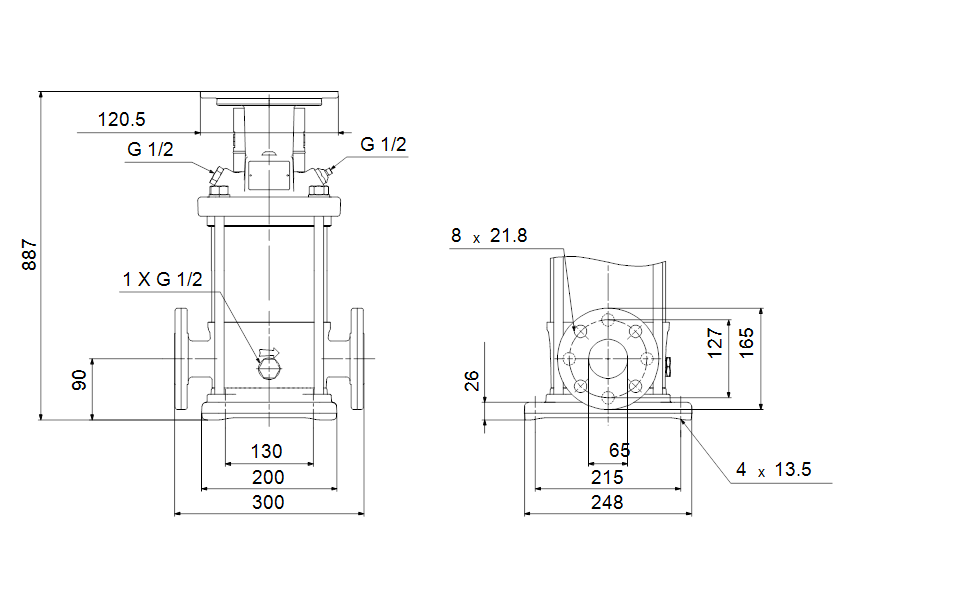

Dimensional Drawing
