Grundfos 92722103 - CRI 15-10 FK-FGJ-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92722103

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92722103 - CRI 15-10 FK-FGJ-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92722103 - CRI 15-10 FK-FGJ-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CRI 15-10 is ideal for high-pressure applications, making it a perfect choice for both water supply and process applications. Its versatility allows it to be used in various sectors, including manufacturing, agriculture, and water treatment.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help!

EAN 5715118651321
Actual impeller diameter 4.13 in
Approvals CURUS
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 492.0 lb
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 686.4 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor efficiency at 1/2 load 0.9
Motor efficiency at 3/4 load 0.91
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type WEG
Net weight 370.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.91
Pressure rating for connection PN 25
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3527 rpm
Pump version FK
Pumped liquid Water
Rated current 45.4/22.7 A
Rated flow 90.3 US gpm
Rated head 566.3 ft
Rated power - P2 15 kW
Rated speed 3515 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard NEMA
Starting current 6.6
Type WEG
Type of connection DIN / ANSI / JIS
Version FK

Motor Curves

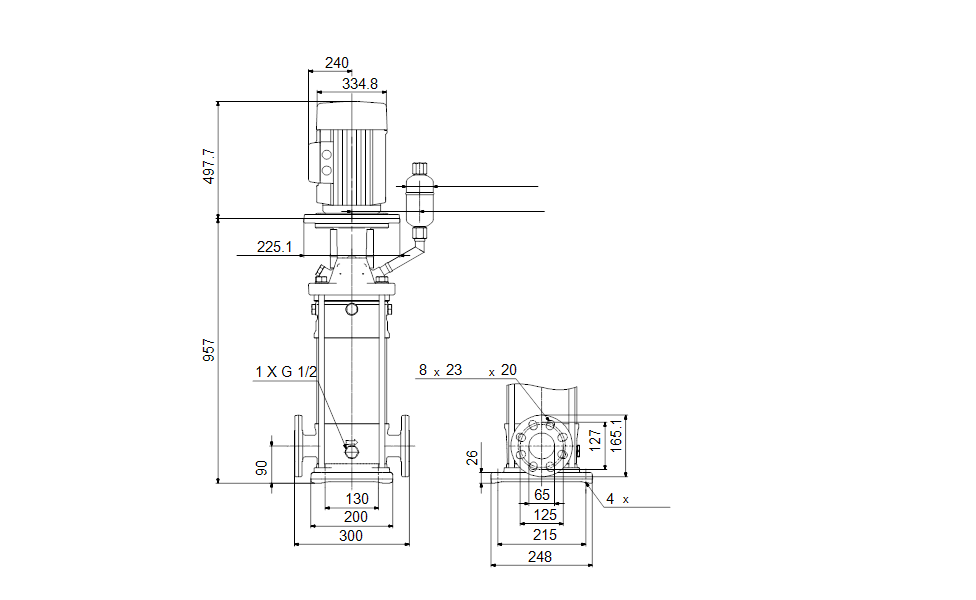

Dimensional Drawing

DWiring Diagram
