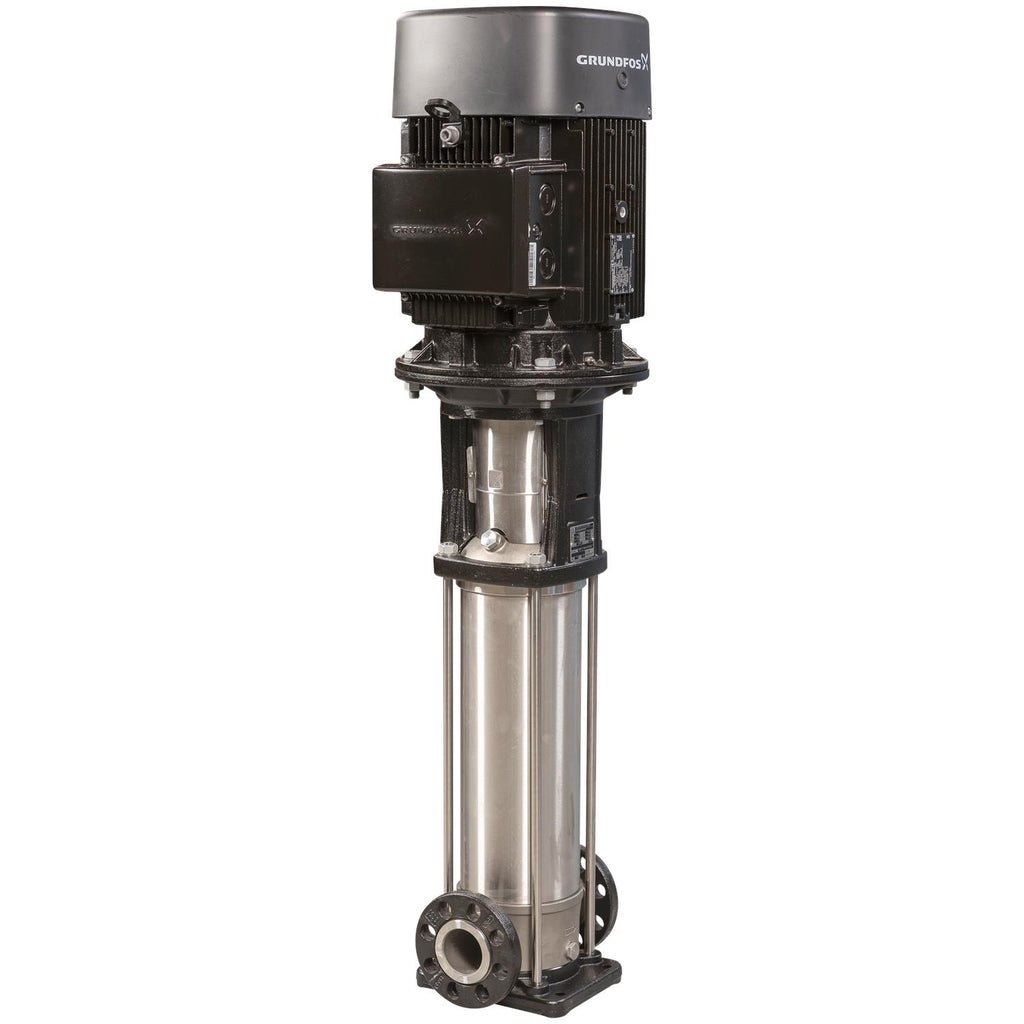

Grundfos 96501241 - CRI 10-9 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96501241

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96501241 is a vertical, multistage centrifugal pump model CRI 10-9 A-FGJ-A-E-HQQE intended for industrial in-line and high-pressure applications. It suits plant maintenance teams, OEM service technicians, and facilities managing process water or high-pressure transfer.

Key features

  • Engineered for industrial applications with a multistage centrifugal configuration
  • Vertical, in-line design for space-saving installation and easy integration
  • Delivers reliable high-pressure performance for pumping, boosting, and circulation tasks

Applications

Typical uses include process water transfer, boiler feed, pressure boosting, and other industrial circulation or high-pressure systems where a vertical multistage centrifugal pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96501241

EAN 5700396218175
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FT130
Frequency converter NONE
Gross weight 139.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 301.2 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at 1/2 load 87.7-85.4 %
Motor efficiency at 3/4 load 88.0-87.0 %
Motor efficiency at full load 1 87.1-87.1 %
Motor standard IEC
Motor type 100LC
Net weight 130.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 25
Pump 3 kW
Pump speed on which pump data are based 2902 rpm
Pump version A
Pumped liquid Water
Rated current 6.3 A
Rated flow 44 US gpm
Rated head 237.2 ft
Rated power - P2 3 kW
Rated speed 2900-2920 rpm
Rated voltage 3 x 380-415D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 40
Size of outlet connection DN 40
Stages 9
Standard IEC
Starting current 840-920 %
Terminal box position 6
Type 100LC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

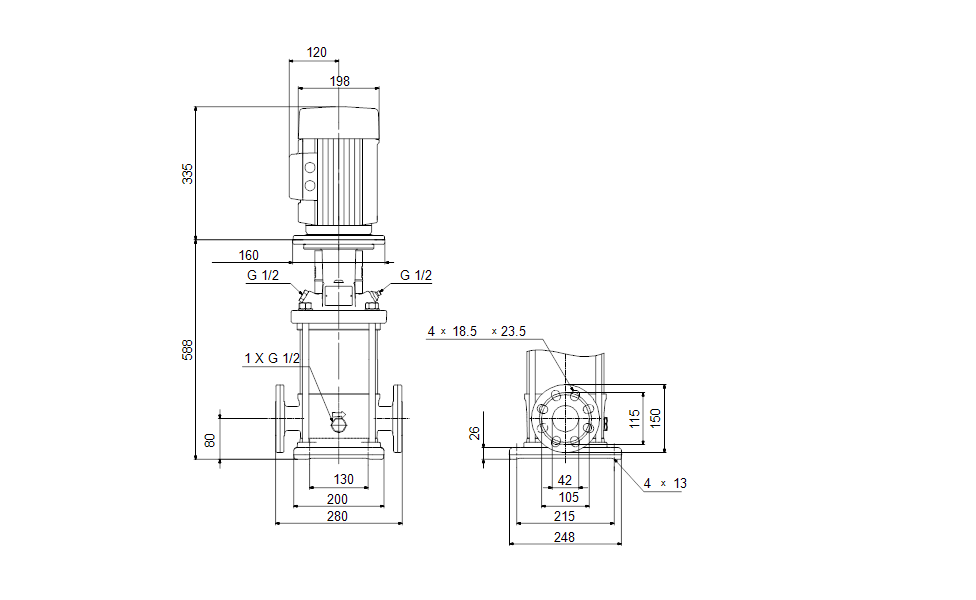

Dimensional Drawing

DWiring Diagram
