Grundfos 98895930 - CRI 10-8 FK-FGJ-A-F-HUBE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98895930

Price:
Sale price$23,677.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRI 10-8 FK-FGJ-A-F-HUBE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5712603119229
Actual impeller diameter 3.66 in
Approvals CURUS
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HUBE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) 54 Dust/Splashing
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 386.0 lb
IE efficiency IE3 91%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 32 .. 356 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 357.6 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
Net weight 271.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3482 rpm
Pump version FK
Pumped liquid Water
Rated current 18.6-17.2/8.9 A
Rated flow 53.3 US gpm
Rated head 295.3 ft
Rated power - P2 5.5 kW
Rated speed 3525 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard NEMA
Type BALDOR
Type of connection DIN / ANSI / JIS
Version FK

Motor Curves

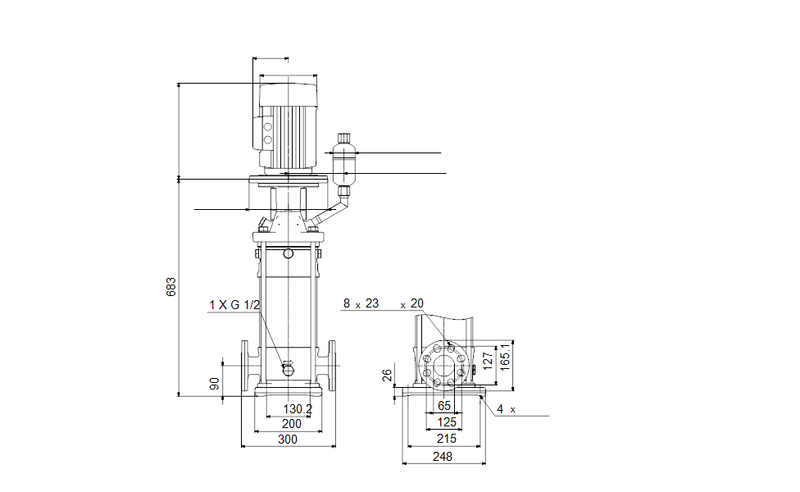

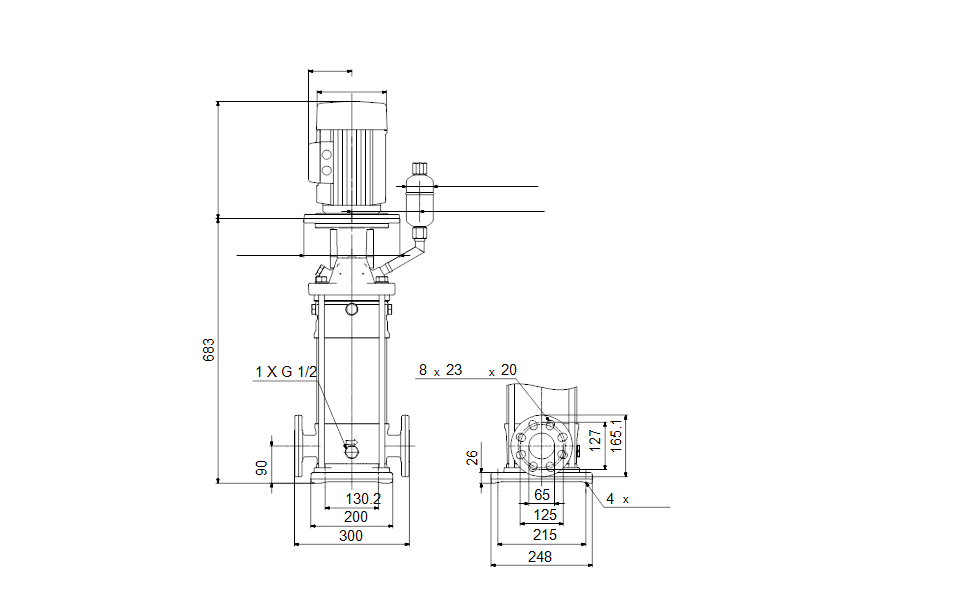

Dimensional Drawing

DWiring Diagram
