Grundfos 98763937 - CRI 10-7 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98763937

Price:
Sale price$10,309.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98763937 CRI 10-7 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal pump used by industrial and commercial operators for pressure boosting and fluid transfer. Manufactured by Grundfos for demanding system applications.

Key features

  • Designed as a vertical multistage centrifugal pump for compact footprint and multiple stages
  • Suitable for high-pressure and in-line installations
  • Delivers reliable pressure boosting and consistent flow for system stability

Applications

Typical uses include industrial pressure boosting, boiler feed, process water transfer, irrigation, and high-pressure in-line systems.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98763937

EAN 5712601058544
Actual impeller diameter 3.66 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FF265
Frequency converter NONE
Gross weight 238.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 341.2 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at 1/2 load 89.9-87.9 %
Motor efficiency at 3/4 load 90.3-89.9 %
Motor efficiency at full load 1 89.5-89.5 %
Motor standard IEC
Motor type 132DA
Net weight 190.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.90-0.80
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3526 rpm
Pump version A
Pumped liquid Water
Rated current 18
Rated flow 53.3 US gpm
Rated head 275.9 ft
Rated power - P2 5.5 kW
Rated speed 3510-3550 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 40
Size of outlet connection DN 40
Stages 7
Standard IEC
Starting current 1020-1480 %
Type 132DA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

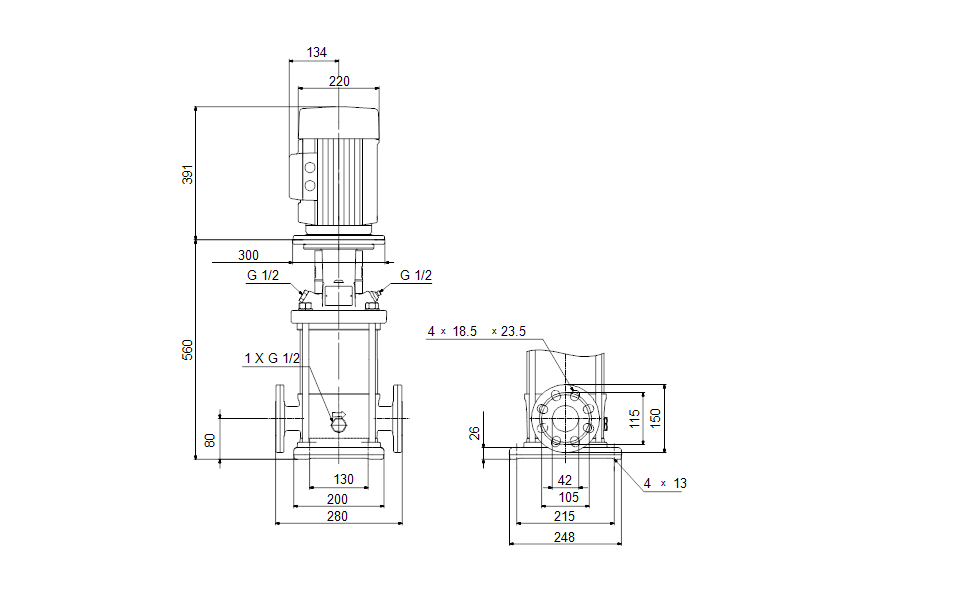

Dimensional Drawing

DWiring Diagram
