Name: Grundfos 92956009 - CRI 10-4 K-CX-A-E-HQQE | Vertical | Multistage | Centrifugal
Brand: GRUNDFOS
SKU: 92956009
Availability: InStock

Image shown may not be actual product

Grundfos 92956009 - CRI 10-4 K-CX-A-E-HQQE | Vertical | Multistage | Centrifugal

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

CRI 10-4 K-CX-A-E-HQQE · Vertical Multistage Centrifugal Pump — Stainless Steel

CRI5HP230/460V3.0-Phase60 HzIE3 / NEMA PremiumTEFCStainless steel

The Grundfos 92956009 (CRI 10-4 K-CX-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design. Nominal performance: 53.3US gpm at 143.4ft. Rated 230/460V, 3.0-Phase, 60 Hz.

Power

5HP

Voltage

230/460V

Phase

3.0-Phase

Max Flow

53.3US gpm

Max Head

143.4ft

Max Pressure

232.06psi

Grundfos

World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945

Industrial Grade

IE3 / NEMA Premium motor — reduces operating cost over service life

Authorized Distributor

Genuine Grundfos product — full manufacturer warranty coverage

Expert Support

Technical help available — call (781) 281-8905 or chat

Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRI 10-4 K-CX-A-E-HQQE

Series: CRI

Model Code: CRI 10-4 K-CX-A-E-HQQE

Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring

Impeller Material: Stainless steel

Housing Material: Stainless steel

Shaft Seal: HQQE

Flange Rating: PN 25

Technical Specifications

Model Number	92956009
Product Series	CRI
Series Description	Vertical Multistage Centrifugal Pump — Stainless Steel
Power	5HP
Voltage	230/460V
Phase	3.0-Phase
Frequency	60 Hz
Motor Speed	3500rpm
Pump Speed	3486rpm
Full Load Current	11,8/5,9A
Motor Type	WEG
Motor Efficiency Class	IE3 / NEMA Premium
Motor Efficiency	IE3 88,5%
Insulation Class	F
Protection Class (IP)	TEFC
Nominal Flow	53.3US gpm
Nominal Head	143.4ft
Max Operating Pressure	232.06psi
Max Fluid Temperature	248°F
Max Ambient Temperature	104°F
Inlet Connection	DN 50
Outlet Connection	DN 50
Pipe Pressure Rating	PN 25
Pipe Standard	TriClamp
Impeller Material	Stainless steel
Housing Material	Stainless steel
Shaft Seal	HQQE
Approvals / Certifications	CURUS

Important Notices

Electrical	Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3.0-Phase, 60 Hz.
Temperature limits	Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running	Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance	Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.

Documentation

✓ Installation and Operating Manual (IOM) — CRI Series

✓ Product Data Sheet — CRI 10-4 K-CX-A-E-HQQE

✓ Service Manual and Spare Parts List

Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.

Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.

Grundfos 92956009 - CRI 10-4 K-CX-A-E-HQQE | Vertical | Multistage | Centrifugal

Description

Genuine Grundfos Part

Full Traceability

Authorized Source

Confirm Compatibility

Technical Support Available

Contact for Availability

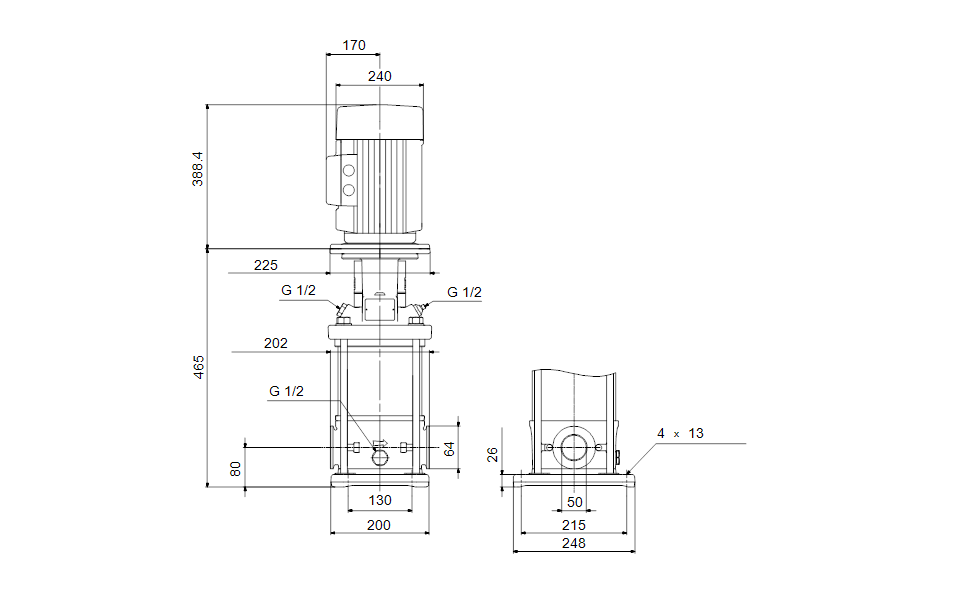

Dimensional Drawing

DWiring Diagram
