Grundfos 92775483 - CRI 10-3 K-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92775483

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92775483 - CRI 10-3 K-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92775483 - CRI 10-3 K-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CRI 10-3 K-FGJ-A-E-HQQE is ideal for high-pressure applications, making it a perfect choice for those seeking a durable and efficient pumping solution. This pump is part of the Grundfos Centrifugal Pumps range, specifically tailored for both single and multi-stage operations.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715119431335
Actual impeller diameter 3.66 in
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 172.0 lb
IE efficiency IE3 86
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 118.1 ft
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 0.84
Motor efficiency at 3/4 load 0.865
Motor efficiency at full load 1 0.865
Motor standard NEMA
Motor type WEG
Net weight 157.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3496 rpm
Pump version K
Pumped liquid Water
Rated current 7.34/3.67 A
Rated flow 53.3 US gpm
Rated head 103.4 ft
Rated power - P2 2.2 kW
Rated speed 3515 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Starting current 8.8
Type WEG
Type of connection DIN / ANSI / JIS
Version K

Motor Curves

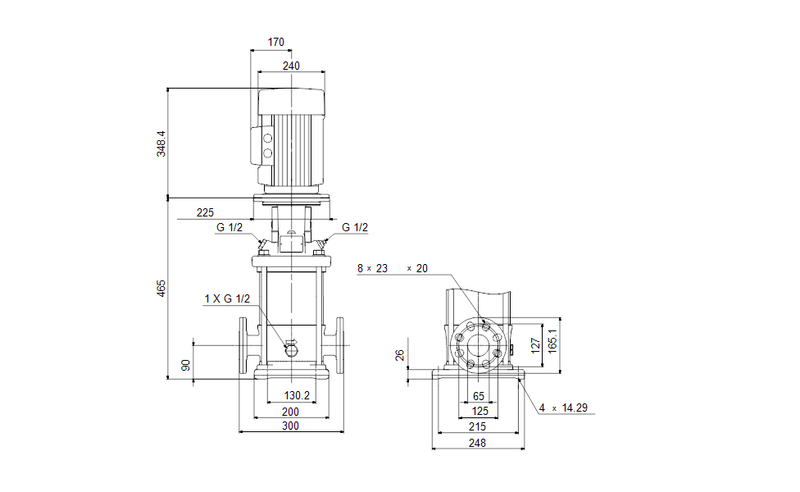

Dimensional Drawing

DWiring Diagram
