Grundfos 96126765 - CRI 10-2 A-FGJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $1,523.25
GRUNDFOSSKU: 96126765

Price:
Sale price$2,035.75 Regular price$3,559.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRI 10-2 A-FGJ-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5700396990613
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency 60 HZ
Frequency converter NONE
Gross weight 81.6 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 250 °F
Maximum head 95.81 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 56C
Motor standard NEMA
n rpm 3466rpm
Net weight 63.9 lb
Number of reduced-diameter impellers 0
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRI 10
Pump housing Stainless steel
Pump inlet DN 50
Pump outlet DN 50
Pump version A
Pumped liquid Water
Rated flow 53.3 US gpm
Rated flow 2 53.3 US gpm
Rated head 72.51 ft
Rated head 2 72.51 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

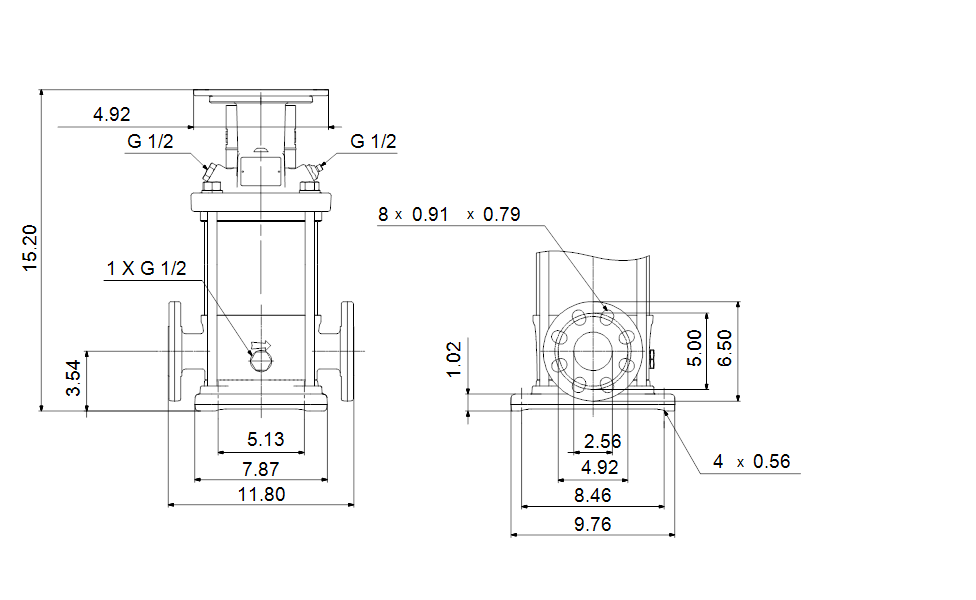

Dimensional Drawing
