Grundfos 97904516 - CRI 10-12 F-FGJ-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97904516

Price:
Sale price$21,202.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

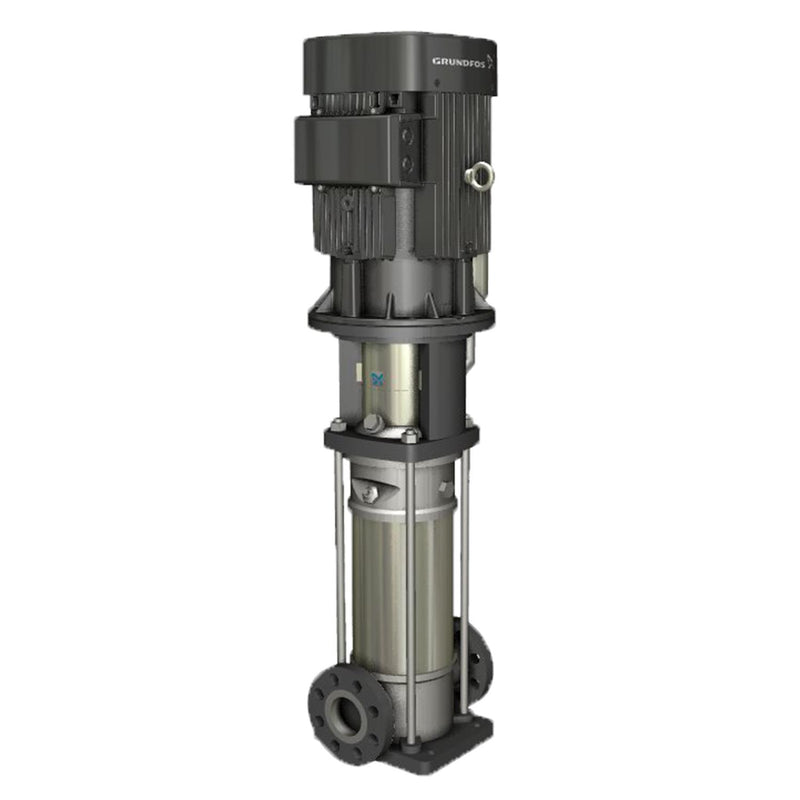

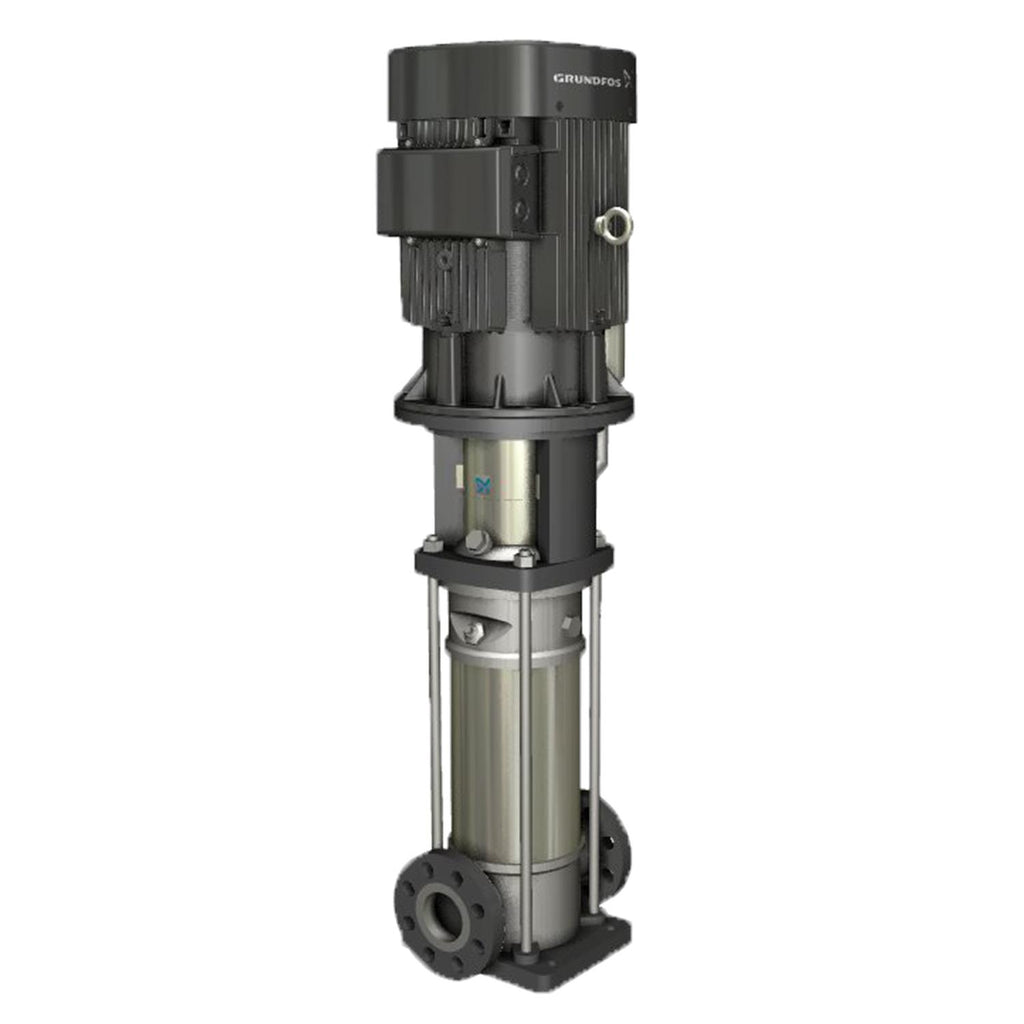

Grundfos 97904516 - CRI 10-12 F-FGJ-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97904516 - CRI 10-12 F-FGJ-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and efficient fluid transfer.

With its robust construction and advanced design, the CRI 10-12 F-FGJ-A-F-HQQE ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is categorized under Service Special and is suitable for both single and multi-stage applications.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710626129782
Actual impeller diameter 3.66 in
Approvals CE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 139.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 14 .. 356 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 356 °F
Maximum head 577.5 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 123.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3470 rpm
Pump version F
Rated flow 53.3 US gpm
Rated head 446.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard NEMA
Type of connection DIN / ANSI / JIS
Version F

Motor Curves

Dimensional Drawing
