Grundfos 99070507 - CRI 1-8 A-CA-A-V-PQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99070507

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

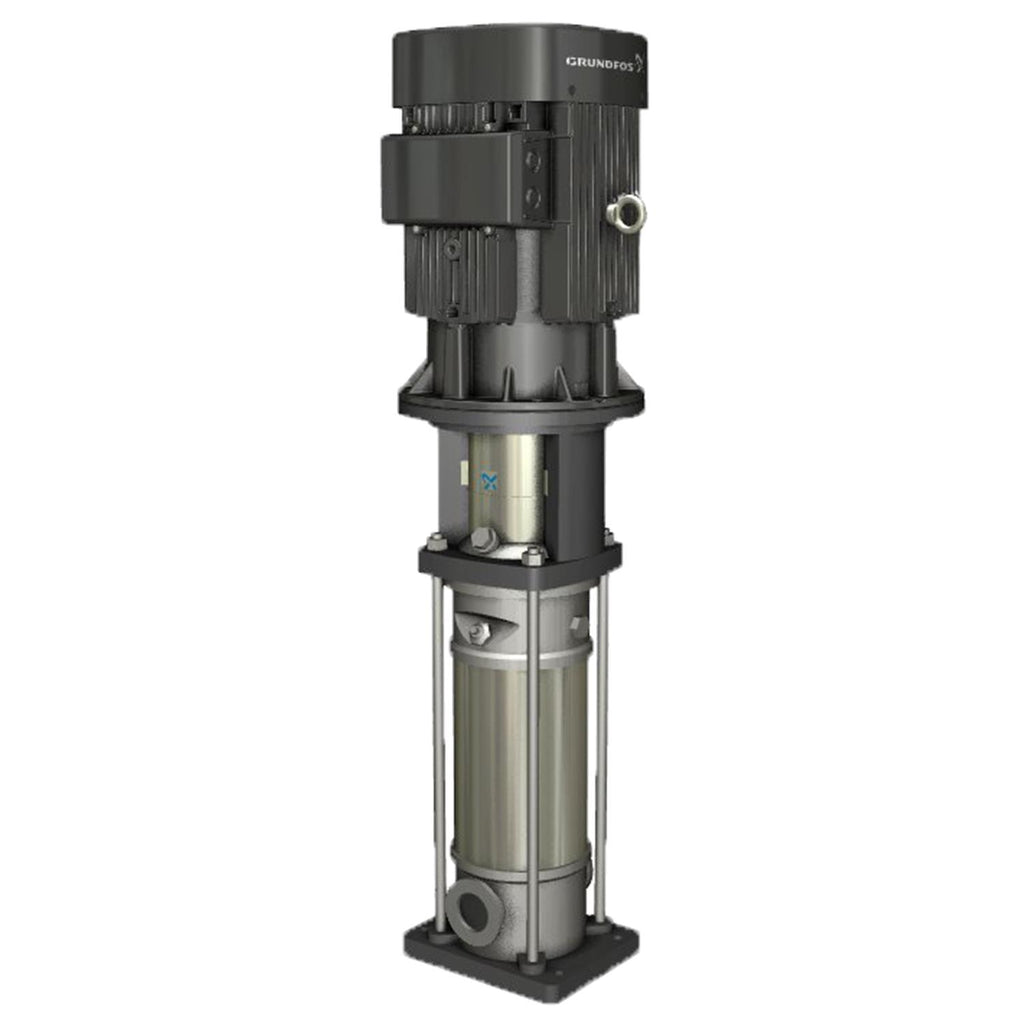

CRI 1-8 A-CA-A-V-PQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5712606172344
Approvals CURUS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal PQQV
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 56C
Frequency converter NONE
Gross weight 67.1 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 232.3 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 78.5-76.0 %
Motor efficiency at 3/4 load 81.0-80.0 %
Motor efficiency at full load 1 77.0-77.0 %
Motor standard NEMA
Motor type 71BB
Net weight 56.1 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.81-0.72
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3484 rpm
Pump version A
Pumped liquid Water
Rated current 3
Rated flow 9.69 US gpm
Rated head 170.9 ft
Rated power - P2 0.75 kW
Rated speed 3430-3460 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 8
Standard NEMA
Starting current 590-650 %
Type 71BB
Type of connection FlexiClamp
Version A

Motor Curves

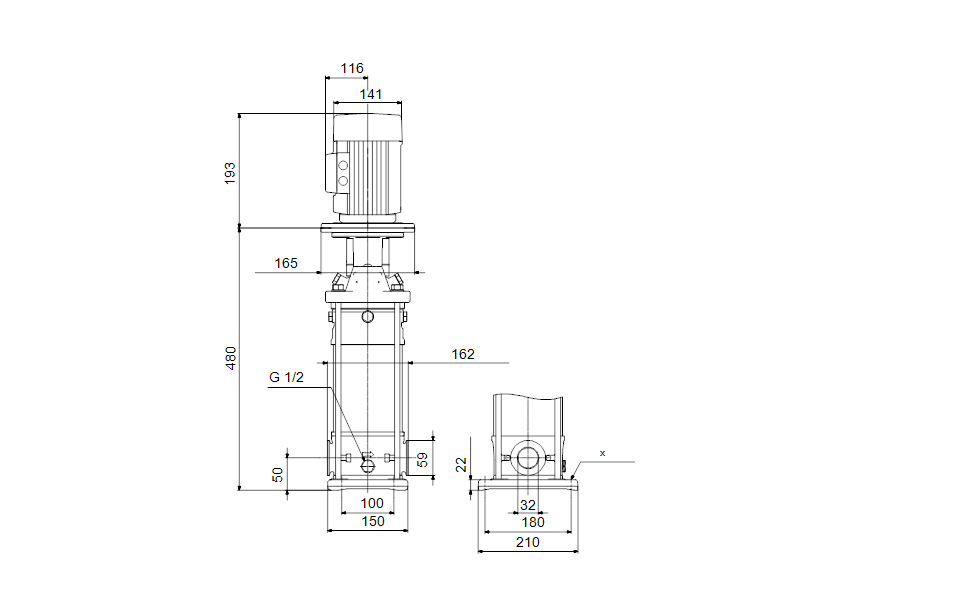

Dimensional Drawing

DWiring Diagram
