Grundfos 98806689 - CRI 1-23 A-CA-A-E-HUBE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98806689

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CRI 1-23 A-CA-A-E-HUBE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps.

EAN 5712601621199
Approvals EAC
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HUBE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT115
Frequency converter NONE
Gross weight 93.2 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 673.3 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor No 99605898
Motor standard IEC
Net weight 86.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3451 rpm
Pump version A
Pumped liquid Water
Rated flow 9.69 US gpm
Rated head 502 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 23
Standard IEC
Type of connection FlexiClamp
Version A

Motor Curves

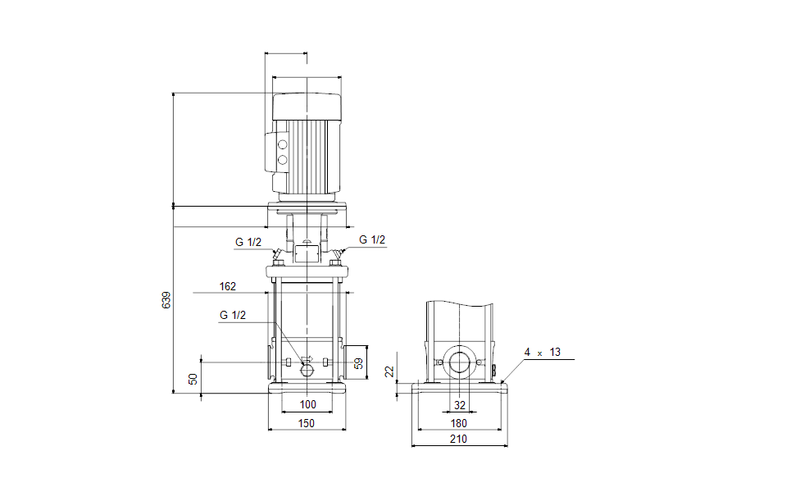

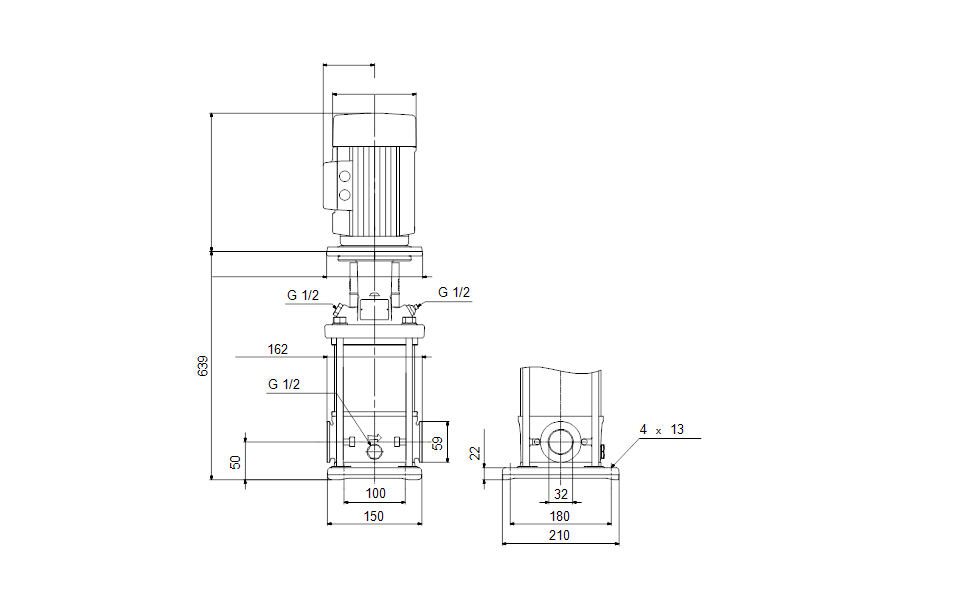

Dimensional Drawing
