Grundfos 96542278 - CRI 1-21 A-CA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96542278

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96542278 - CRI 1-21 A-CA-A-E-HQQE is a vertical, multistage centrifugal pump intended for industrial high-pressure in-line applications, commonly used by maintenance and service technicians for water boosting and process circulation.

Key features

  • Vertical multistage centrifugal design for compact footprint and high head
  • Suitable for in-line and high-pressure service installations (service special)
  • Delivers reliable pressure boosting and stable flow for process and HVAC systems

Applications

Typical uses include water booster systems, industrial process circulation, HVAC loop pressurization, and other high-pressure in-line pumping needs where a vertical multistage pump is specified.

Compatibility note: Match the exact model or SKU before ordering; if unsure, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96542278

EAN 5700397994368
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT115
Frequency converter NONE
Gross weight 48.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 622.1 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor standard IEC
Net weight 41.9 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated flow 9.69 US gpm
Rated head 475.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 21
Standard IEC
Type of connection FlexiClamp
Version A

Motor Curves

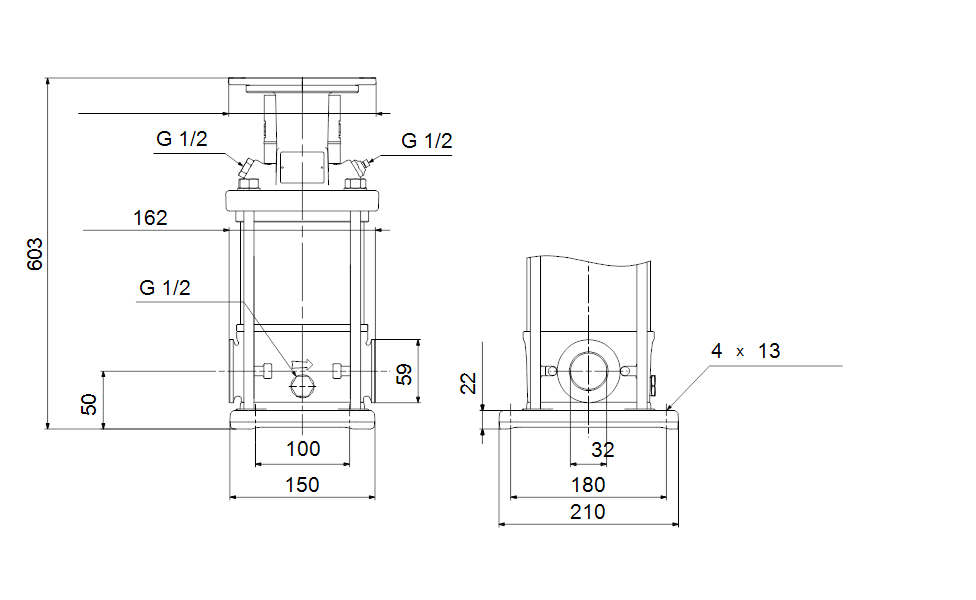

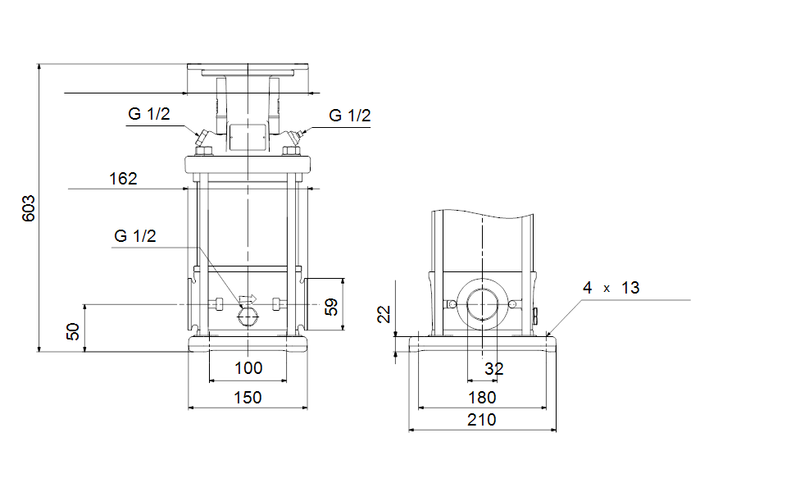

Dimensional Drawing
