Grundfos 96082295 - CRI 1-19 | Multistage | SelfPriming | Centrifugal | Vertical

GRUNDFOSSKU: 96082295

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRI 1-19 · Vertical Multistage Centrifugal Pump — Stainless Steel
CRI

The Grundfos 96082295 (CRI 1-19) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design.

Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRI 1-19
Series: CRI
Model Code: CRI 1-19
Technical Specifications
Model Number 96082295
Product Series CRI
Series Description Vertical Multistage Centrifugal Pump — Stainless Steel
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRI Series
✓ Product Data Sheet — CRI 1-19
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700395170337
Code for rubber E
Code for shaft seal HQQE
Connect code CAB
Connection 2 5/16" inch
Curve tolerance ISO 9906:1999 Annex A
Density 62.29 lb/ft³
Flange size for motor 56C
Gross weight 54.9 lb
Impeller Stainless steel
Impellers 19
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code IX
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Model A
Motor 56C
Net weight 40.4 lb
Power (P2) required by pump 1.5 kW
Pump 1.5 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated flow 9.69 US gpm
Rated head 433.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 2 5/16" inch
Size of outlet connection 2 5/16" inch
Stages 19
Type of connection FlexiClamp
Version A

Motor Curves

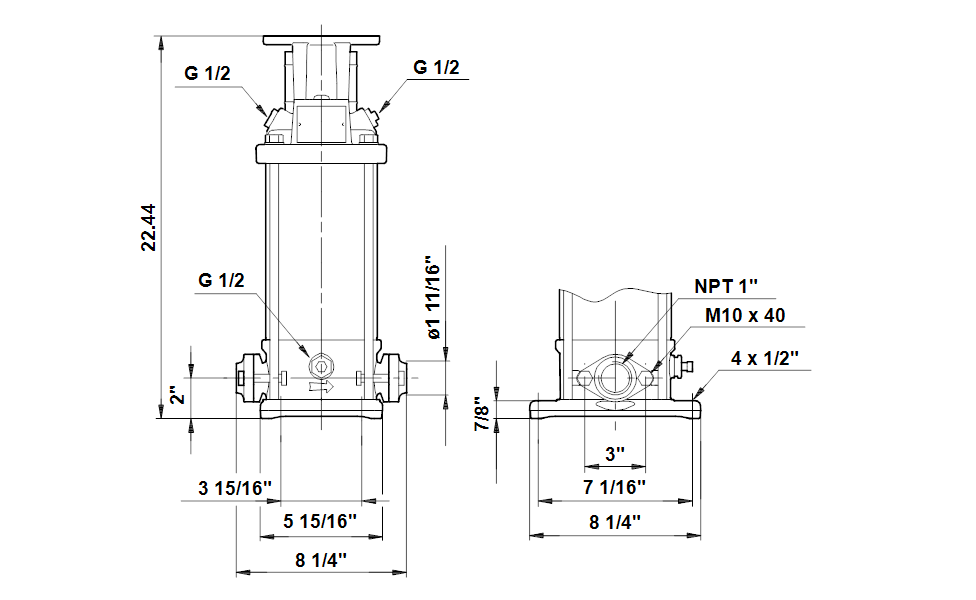

Dimensional Drawing
