Grundfos 99145457 - CRE 95-1 A-G-A-E-HQQE
Grundfos 99145457 - CRE 95-1 A-G-A-E-HQQE
Grundfos 99145457 - CRE 95-1 A-G-A-E-HQQE
Grundfos 99145457 - CRE 95-1 A-G-A-E-HQQE
Grundfos 99145457 - CRE 95-1 A-G-A-E-HQQE
Grundfos 99145457 - CRE 95-1 A-G-A-E-HQQE

Grundfos 99145457 - CRE 95-1 A-G-A-E-HQQE

Save $7,738.56
GRUNDFOSSKU: 99145457
Price:
$8,383.44 $16,122.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99145457 - CRE 95-1 A-G-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712607597931
Applications Industrial applications
Material Pricing Group 31
Motor efficiency at full load 1 0.91
IE Efficiency class NEMA Premium / IE3 60Hz
Code for rubber E
Maximum ambient temperature 104 °F
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 232 psi / 250 °F
Maximum operating pressure 16 bar
Size of inlet connection 4 inch
Power factor 1 0.89
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection ANSI
Bearing 1 WC/WC
Bearing 2 Graflon
Rated voltage 3 x 460 V
Flange size for motor 256TC
Pumped liquid Water
Size of outlet connection 4 inch
Connect code G
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
Built-in motor protection YES
Net weight 511.0 lb
Number of poles 2
Rated speed 480-3540 rpm
Gross weight 787.0 lb
Rated power - P2 15 kW
Enclosure class (IEC 34-5) IP55
Power (P2) required by pump 15 kW
Pressure rating for connection 150 lb
Rated current 26 A
Service factor 1.15
Config. file no 95139700
Frequency converter Built-in
Motor type 160AB
Terminal box position 6
Function Module ADVANCED I/O
Pressure sensor N
Pump speed on which pump data are based 3540 rpm
Approvals CE
Rated flow 500 US gpm
Model A
Version A
Diameter 5.63 in
Motor Standard motor size
Rubber E
Maximum head 149.3 ft
Approvals for drinking water NSF/ANSI 61
Motor standard NEMA
Material certified according to European standards
Thrust handling device N
DOE Pump Energy Index VL 0.45
Rated head 105.6 ft
Actual impeller diameter 5.63 in
Type 160AB
Curve tolerance ISO9906:2012 3B
Impellers 0
Connection 150 lb
Impeller Stainless steel
Code for shaft seal HQQE
Number of reduced-diameter impellers 0
Pump 15 kW
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

Dimensional Drawing

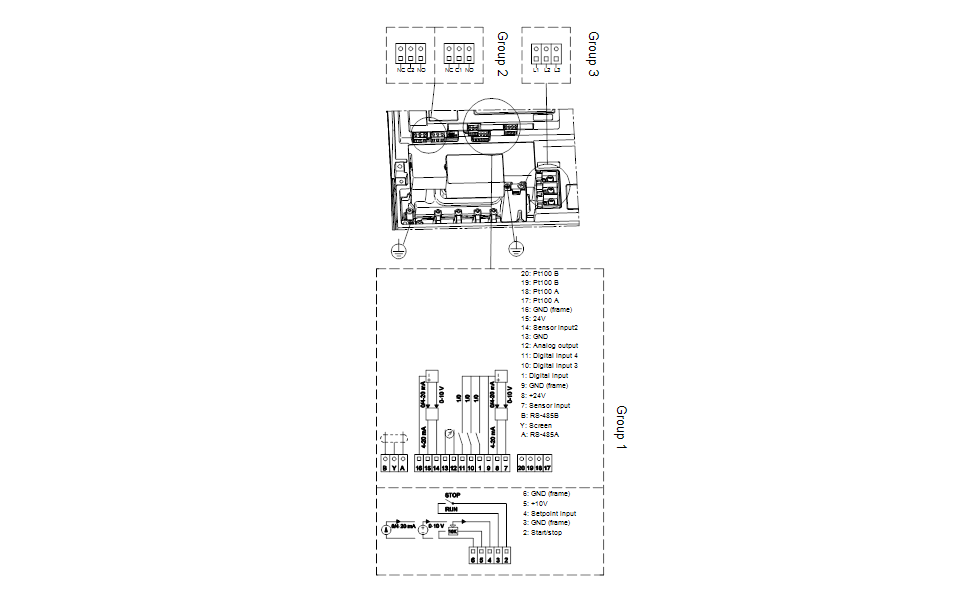

DWiring Diagram
