Grundfos 99951847 - CRE 64-1 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99951847

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99951847 - CRE 64-1 A-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 99951847 - CRE 64-1 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRE 64-1 A-G-A-E-HQQE is perfect for applications requiring consistent flow and pressure. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special, High Pressure, and Vertical Multistage types.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715114628372
Actual impeller diameter 5.63 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074352
Connect code G
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.63 in
DOE Pump Energy Index VL 0.43
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 298.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 153.9 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Net weight 280.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Power factor 1 0.92-0.91
Pressure rating for connection PN 16
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Water
Rated current 17.9-16.6 A
Rated flow 339 US gpm
Rated head 103.4 ft
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 1
Standard NEMA
Support bearing Graflon
Type 160H
Type of connection ANSI
Version A

Motor Curves

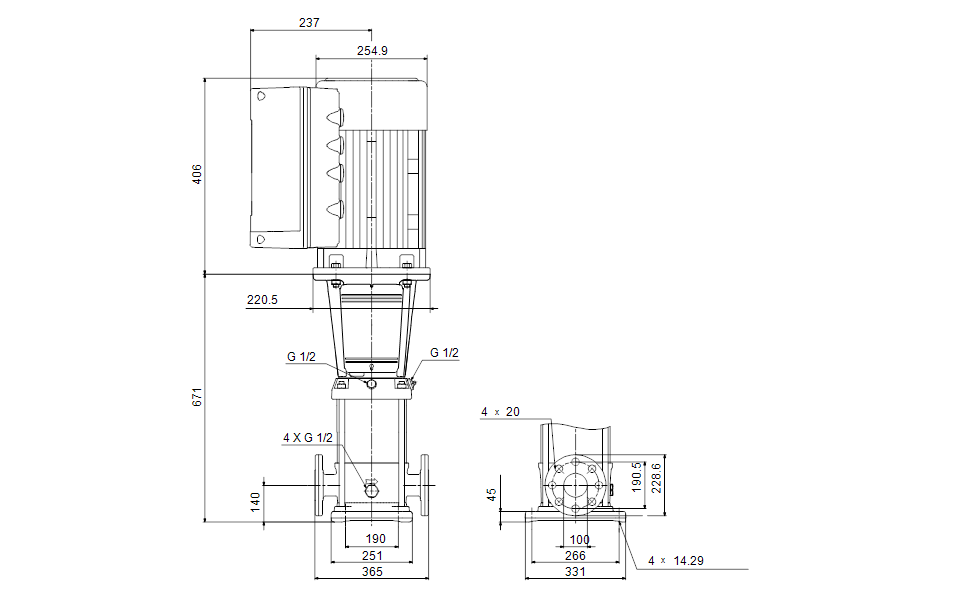

Dimensional Drawing

DWiring Diagram
