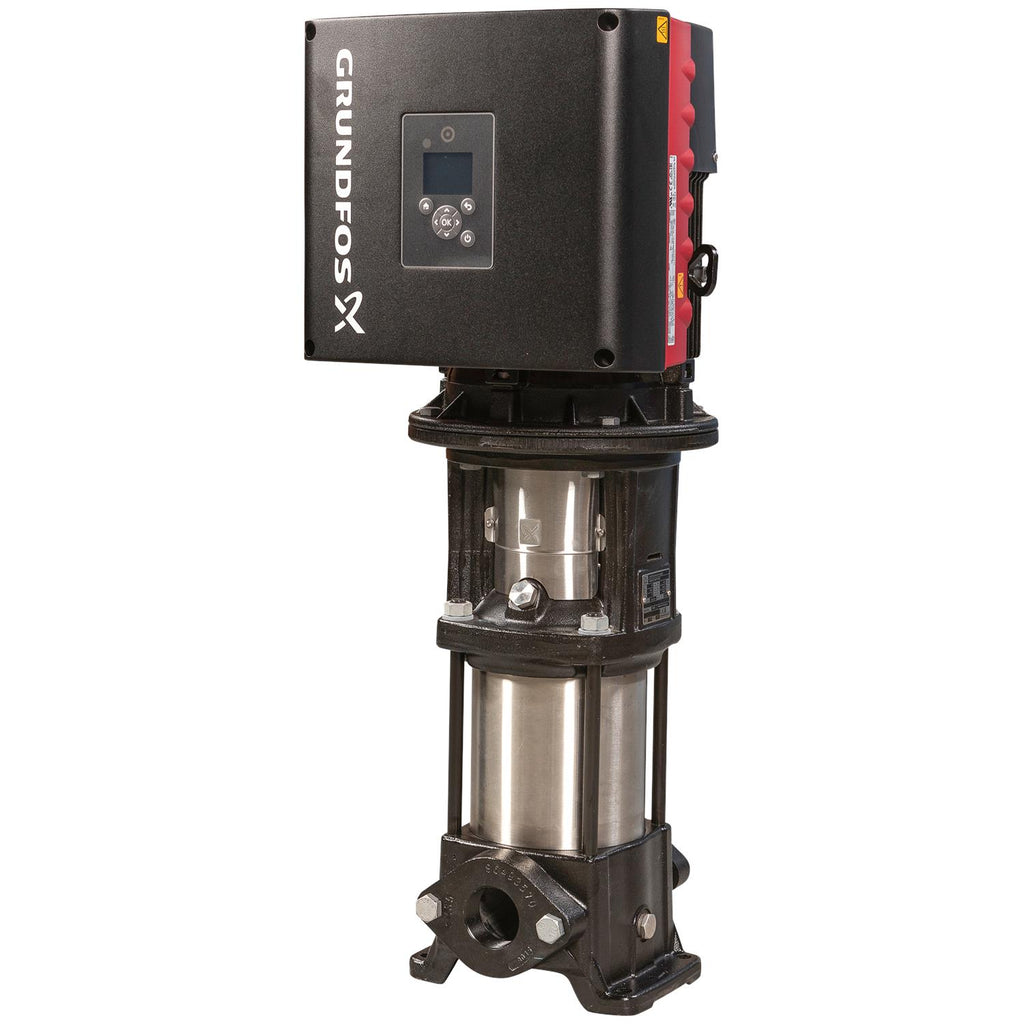

Grundfos 98497320 - CRE 5-9 A-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98497320

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98497320 is a CRE 5-9 vertical multistage centrifugal pump designed for in-line, high-pressure industrial fluid handling. It suits technicians and facility engineers needing compact, vertical multistage performance.

Key features

  • Vertical multistage centrifugal design for consistent pressure and flow
  • Suitable for in-line and high-pressure applications common to CRE series pumps
  • Compact vertical footprint delivers reliable pumping with easier maintenance access

Applications

Typical uses include boiler feed, pressure boosting, circulation, and other industrial liquid transfer tasks where a vertical multistage centrifugal pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98497320

EAN 5711496141553
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499251
Connect code B
Connection PN 16
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 96.8 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 299.2 ft
Maximum operating pressure 16 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 90D
Net weight 82.3 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.89
Pressure rating for connection PN 16
Pressure sensor N
Product family CRE 5
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 3.8 A
Rated flow 30.4 US gpm
Rated head 222.8 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 9
Standard NEMA
Terminal box position 6
Type 90D
Type of connection Oval / NPT(F)
Version A

Motor Curves

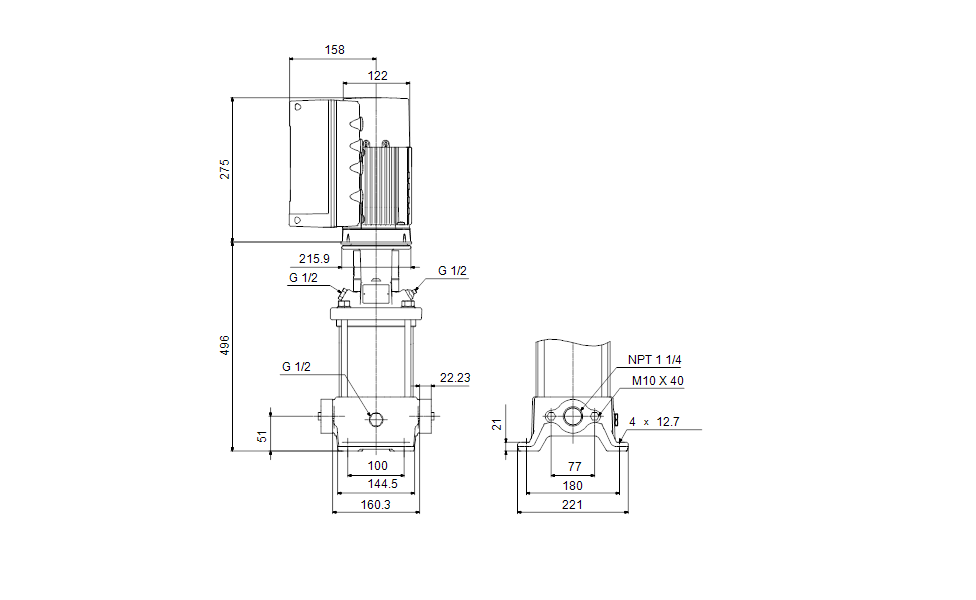

Dimensional Drawing

DWiring Diagram
