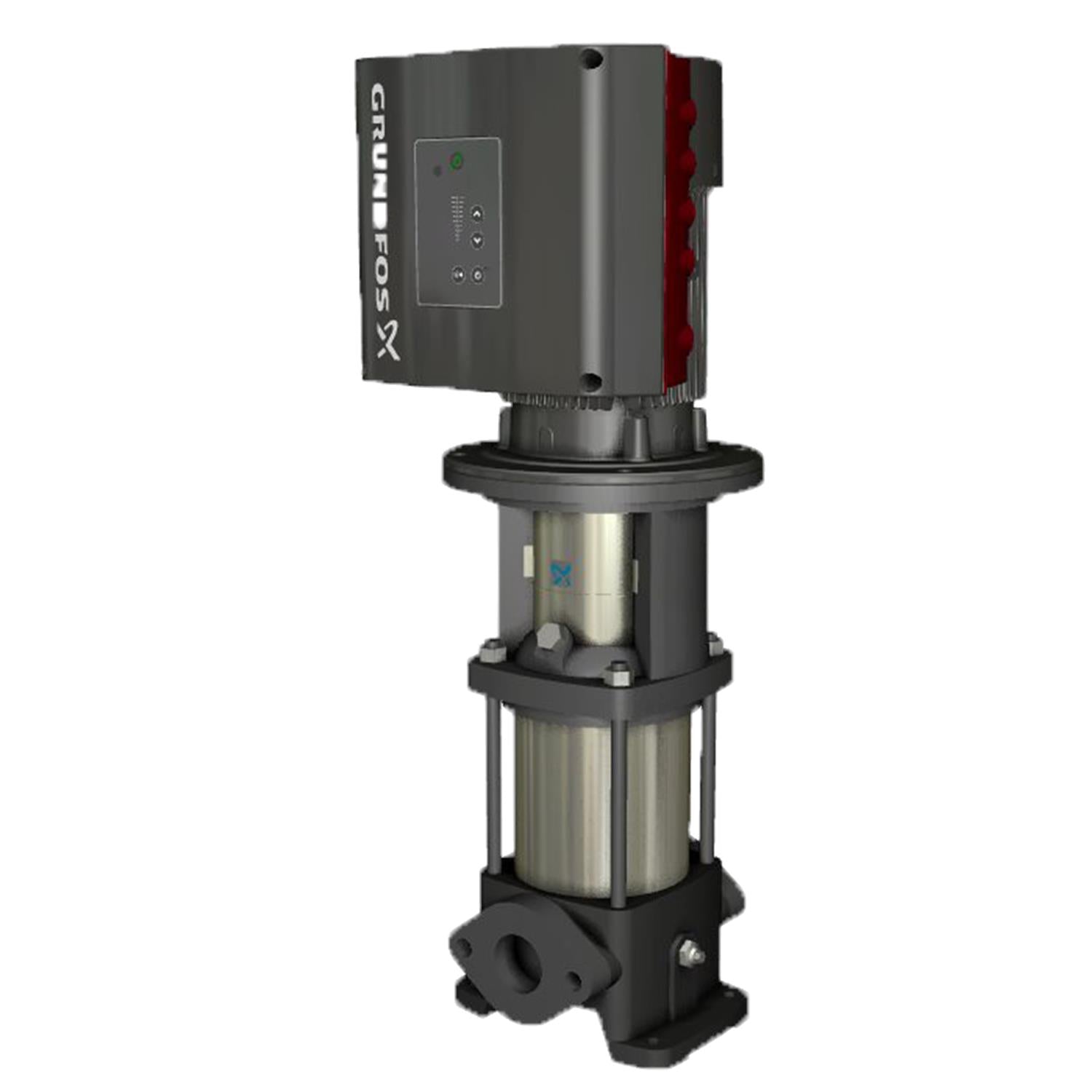

![Grundfos 99570767 - CRE 5-16 N-B-A-V-HQQV]()
![Grundfos 99570767 - CRE 5-16 N-B-A-V-HQQV]()
![Grundfos 99570767 - CRE 5-16 N-B-A-V-HQQV]()
![Grundfos 99570767 - CRE 5-16 N-B-A-V-HQQV]()
![Grundfos 99570767 - CRE 5-16 N-B-A-V-HQQV]()
![Grundfos 99570767 - CRE 5-16 N-B-A-V-HQQV]()
Description
Grundfos 99570767 - CRE 5-16 N-B-A-V-HQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713831225706
Material Pricing Group
23
Motor efficiency at full load 1
0.925
IE Efficiency class
IE5
Code for rubber
V
Maximum ambient temperature
122 °F
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 194 °F
Maximum operating pressure
16 bar
Size of inlet connection
1 1/4 inch
Power factor 1
0.90-0.88
Selected liquid temperature
68 °F
Type of connection
Oval / NPT(F)
Rated voltage
3 x 440-480 V
Flange size for motor
182TC
Pumped liquid
Water
Size of outlet connection
1 1/4 inch
Connect code
B
Liquid temperature range
-4 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Built-in motor protection
ELEC
Net weight
120.0 lb
Rated speed
360-4000 rpm
Gross weight
137.0 lb
Rated power - P2
3.7 kW
Enclosure class (IEC 34-5)
IP55
Power (P2) required by pump
3.7 kW
Pressure rating for connection
PN 16
Rated current
6.20-5.80 A
Service factor
1.15
Control panel
Graphical
Config. file no
99074134
Frequency converter
Built-in
Motor type
112C
Function Module
FM300 - Advanced
Pressure sensor
Y
Pump speed on which pump data are based
3461 rpm
Stages
16
Approvals
CURUS
Rated flow
30.4 US gpm
Model
A
Version
N
Motor
182TC
Rubber
V
Maximum head
520 ft
Motor standard
NEMA
Rated head
384.2 ft
Type
112C
Curve tolerance
ISO9906:2012 3B
Impellers
0
Connection
PN 16
Impeller
Stainless steel
Code for shaft seal
HQQV
Number of reduced-diameter impellers
0
Pump
3.7 kW
Low NPSH
N
Standard
NEMA
Pump version
N
