Description

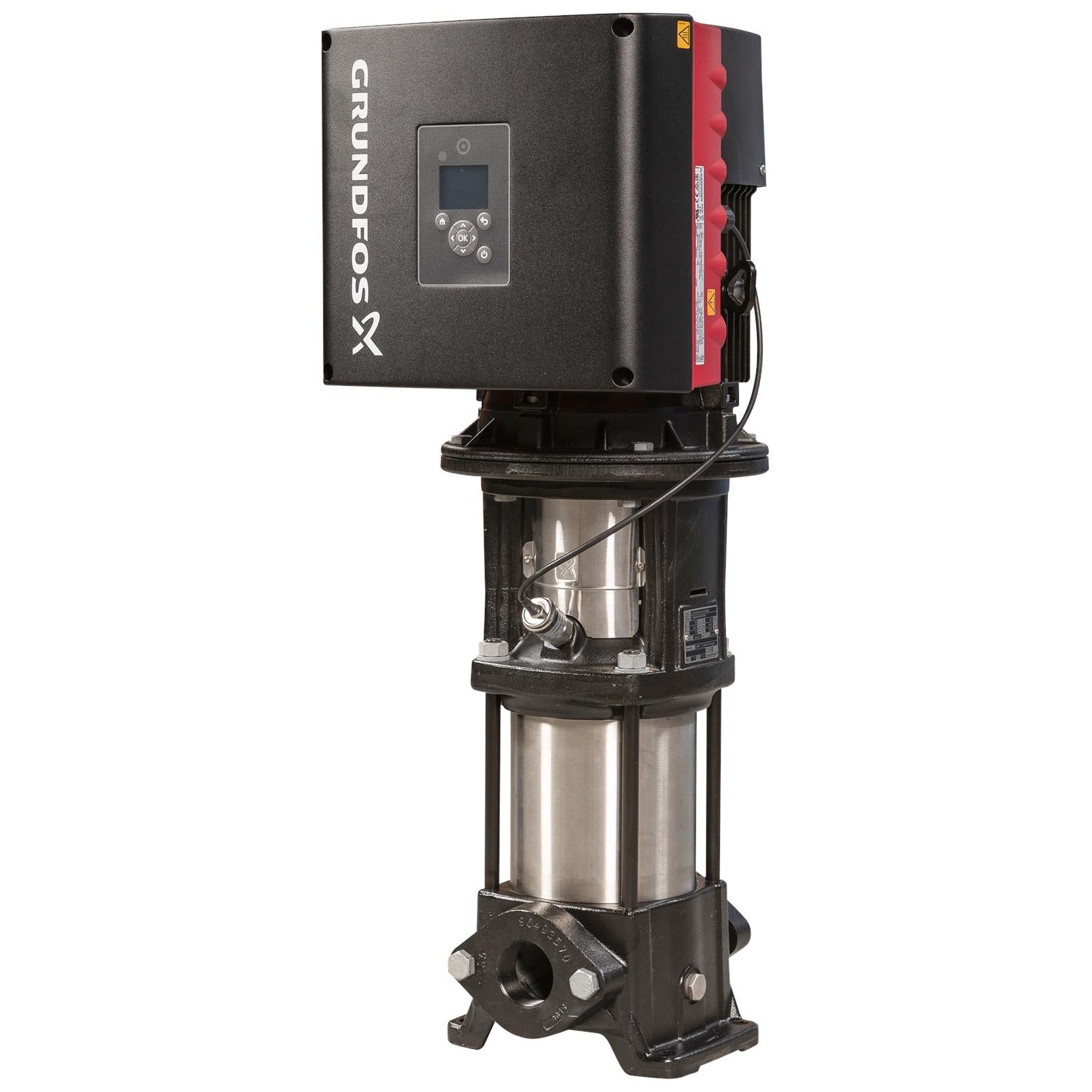

The Grundfos 99389083 (CRE 5-15 N-B-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — Variable Speed. Cast iron head and base, stainless steel wetted parts, with integrated variable frequency drive and IE5-rated permanent magnet motor for energy-optimized pressure control. Nominal performance: 32US gpm at 368.7ft. Rated 200-240V, 3-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Integrated Variable Frequency Drive
The VFD is built into the pump head — no external drive cabinet, no panel wiring, no drive-to-motor cable. Reduces panel space, installation cost, and failure points.
IE5 Permanent Magnet Motor
CRE uses a Grundfos MGE permanent magnet motor rated IE5 — the highest commercially available efficiency class. Significant energy reduction vs IE3 motors at partial load.
Proportional Pressure Control
AUTOADAPT automatically adjusts set point based on actual system demand. No manual curve adjustment needed after commissioning.
iSOLUTIONS Ready
CRE supports Grundfos GO app, CIM communication modules (PROFIBUS, MODBUS, BACnet), and remote monitoring. Full integration into building management systems.
Soft Start Built In
The integrated drive provides controlled ramp-up, eliminating water hammer and reducing mechanical stress on seals and couplings at every start.
Pump Protection Built In
Dry-run protection, over-temperature shutdown, and motor current monitoring are standard in every CRE. No external protection relay required.
| Model Number | 99389083 |
| Product Series | CRE |
| Series Description | Vertical Multistage Centrifugal Pump — Variable Speed |
| Power | 5HP |
| Voltage | 200-240V |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Speed | 360-4000rpm |
| Pump Speed | 3525rpm |
| Full Load Current | 13,2-10,9A |
| Motor Type | 112C |
| Motor Protection | ELEC |
| Motor Efficiency Class | IE5 |
| Motor Efficiency | 90.2% |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 32US gpm |
| Nominal Head | 368.7ft |
| Max Operating Pressure | 232.06psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 1 1/4inch |
| Outlet Connection | 1 1/4inch |
| Pipe Pressure Rating | PN 16 |
| Pipe Standard | Oval / NPT(F) |
| Impeller Material | Stainless steel |
| Housing Material | Cast iron |
| Shaft Seal | HQQE |
| Approvals / Certifications | CE, CURUS |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 200-240V, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5713828319456
- Applications
- Industrial applications
- Approvals
- CURUS
- Approvals for drinking water
- NSF/ANSI 61
- Bearing 1
- SIC
- Built-in motor protection
- ELEC
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Config. file no
- 99303343
- Connect code
- B
- Connection
- PN 16
- Control panel
- Graphical
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP55
- Flange size for motor
- 182TC
- Frequency converter
- Built-in
- Function Module
- FM300 - Advanced
- Gross weight
- 189.0 lb
- IE Efficiency class
- IE5
- Impeller
- Stainless steel
- Impellers
- 0
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -4 .. 248 °F
- Low NPSH
- N
- Mains frequency
- 60 Hz
- Material code
- A
- Material Pricing Group
- 31
- Max pressure at stated temp
- 232 psi / 250 °F
- Maximum ambient temperature
- 104 °F
- Maximum head
- 488.2 ft
- Maximum operating pressure
- 16 bar
- Model
- A
- Motor
- Standard motor size
- Motor efficiency at full load 1
- 0.909
- Motor standard
- NEMA
- Motor type
- 112C
- Net weight
- 105.0 lb
- Number of reduced-diameter impellers
- 0
- Power (P2) required by pump
- 3.7 kW
- Power factor 1
- 0.94
- Pressure rating for connection
- PN 16
- Pressure sensor
- Y
- Product family
- CRE 5
- Pump
- 3.7 kW
- Pump speed on which pump data are based
- 3461 rpm
- Pump version
- N
- Pumped liquid
- Water
- Rated current
- 13.2-10.9 A
- Rated flow
- 30.4 US gpm
- Rated head
- 361.6 ft
- Rated power - P2
- 3.7 kW
- Rated speed
- 360-4000 rpm
- Rated voltage
- 3 x 200-240 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Service factor
- 1.15
- Size of inlet connection
- 1 1/4 inch
- Size of outlet connection
- 1 1/4 inch
- Stages
- 15
- Standard
- NEMA
- Terminal box position
- 6
- Type
- 112C
- Type of connection
- Oval / NPT(F)
- Version
- N
Dimensional Drawing
Wiring Diagram
GRUNDFOS CRE (Product brochure)
OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)
COMPREHENSIVE WATER TREATMENT SOLUTIONS (Product brochure)
FOOD PROCESSING, PUMPS FOR INDUSTRY (Product brochure)
CBS, GRUNDFOS INTELLIGENT PUMP SYSTEMS (Product brochure)
CRE, CRIE, CRNE, CRKE, SPKE, MTRE, CME (I & O instructions)
CRE, CRIE, CRNE, SPKE, CRKE, MTRE (I & O instructions)
CRE-DP (Asynchronous MLE Motors) (Installation and operating instructions)
CRE-DP (Permanent Magnet MLE motor) (Installation and operating instructions)
CRE, CRIE, CRNE, CRKE, SPKE, MTRE E-pumps with MLE model K permanent-magnet motor
