Grundfos 92829855 - CRE 45-2-2 N-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92829855

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92829855 - CRE 45-2-2 N-F-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92829855 - CRE 45-2-2 N-F-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and efficient fluid transfer.

With its robust construction and advanced design, the CRE 45-2-2 N-F-A-E-HQQE ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is categorized under Service Special and is suitable for both single and multi-stage applications.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715120204010
Actual impeller diameter 5.37 in
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99059367
Connect code F
Connection PN 40
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.37 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange size for motor FF300
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 367.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 196.2 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor efficiency at full load 1 0.931
Motor standard IEC
Motor type 160MH
Net weight 295.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 11 kW
Power factor 1 0.93-0.90
Pressure rating for connection PN 40
Pressure sensor Y
Pump 11 kW
Pump speed on which pump data are based 3529 rpm
Pump version N
Pumped liquid Water
Rated current 20.3-16.0 A
Rated flow 238 US gpm
Rated head 152.2 ft
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 2
Standard IEC
Support bearing Graflon
Type 160MH
Type of connection DIN
Version N

Motor Curves

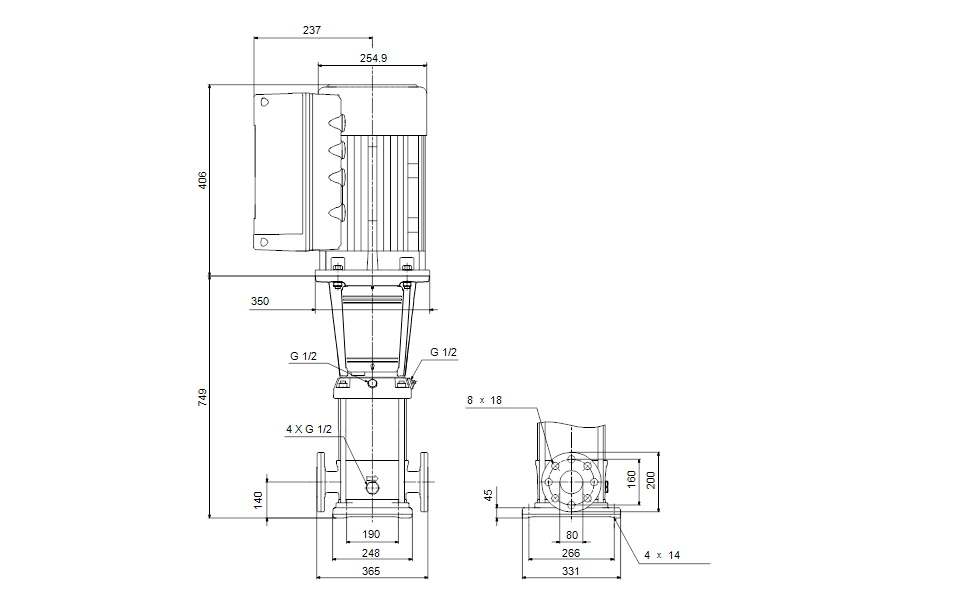

Dimensional Drawing

DWiring Diagram
