Grundfos 98183615 - CRE 32-8-2 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $12,687.84
GRUNDFOSSKU: 98183615

Price:
Sale price$13,745.16 Regular price$26,433.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98183615 - CRE 32-8-2 A-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98183615 - CRE 32-8-2 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRE series is known for its durability and versatility. This model is part of the extensive range of Grundfos centrifugal pumps, including single and multi-stage options, ensuring that you can find the perfect fit for your specific needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 98183615. If you encounter any difficulties in locating the right item, our team is here to help you navigate your options.

EAN 5711491088266
Applications Industrial applications
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Bearing 2 Graflon
Built-in motor protection YES
Code for rubber E
Code for shaft seal HQQE
Config. file no 95139708
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index VL 0.44
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter Built-in
Function Module ADVANCED I/O
Gross weight 533.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 705.4 ft
Maximum operating pressure 30 bar
Model B
Motor Standard motor size
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type 180AA
Net weight 515.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 22 kW
Power factor 1 0.88
Pressure rating for connection PN 40
Pressure sensor N
Product family CRE 32
Pump 22 kW
Pump speed on which pump data are based 3541 rpm
Pump version A
Pumped liquid Water
Rated current 36.5 A
Rated flow 159 US gpm
Rated head 557.8 ft
Rated power - P2 22 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 8
Standard NEMA
Support bearing Graflon
Terminal box position 6
Type 180AA
Type of connection ANSI
Version A

Motor Curves

Dimensional Drawing

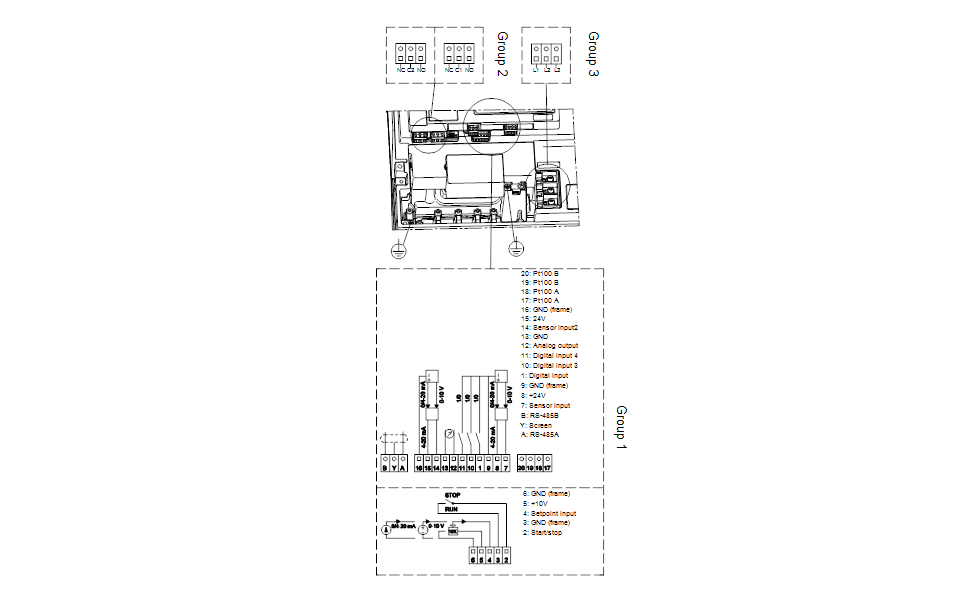

DWiring Diagram
