Description

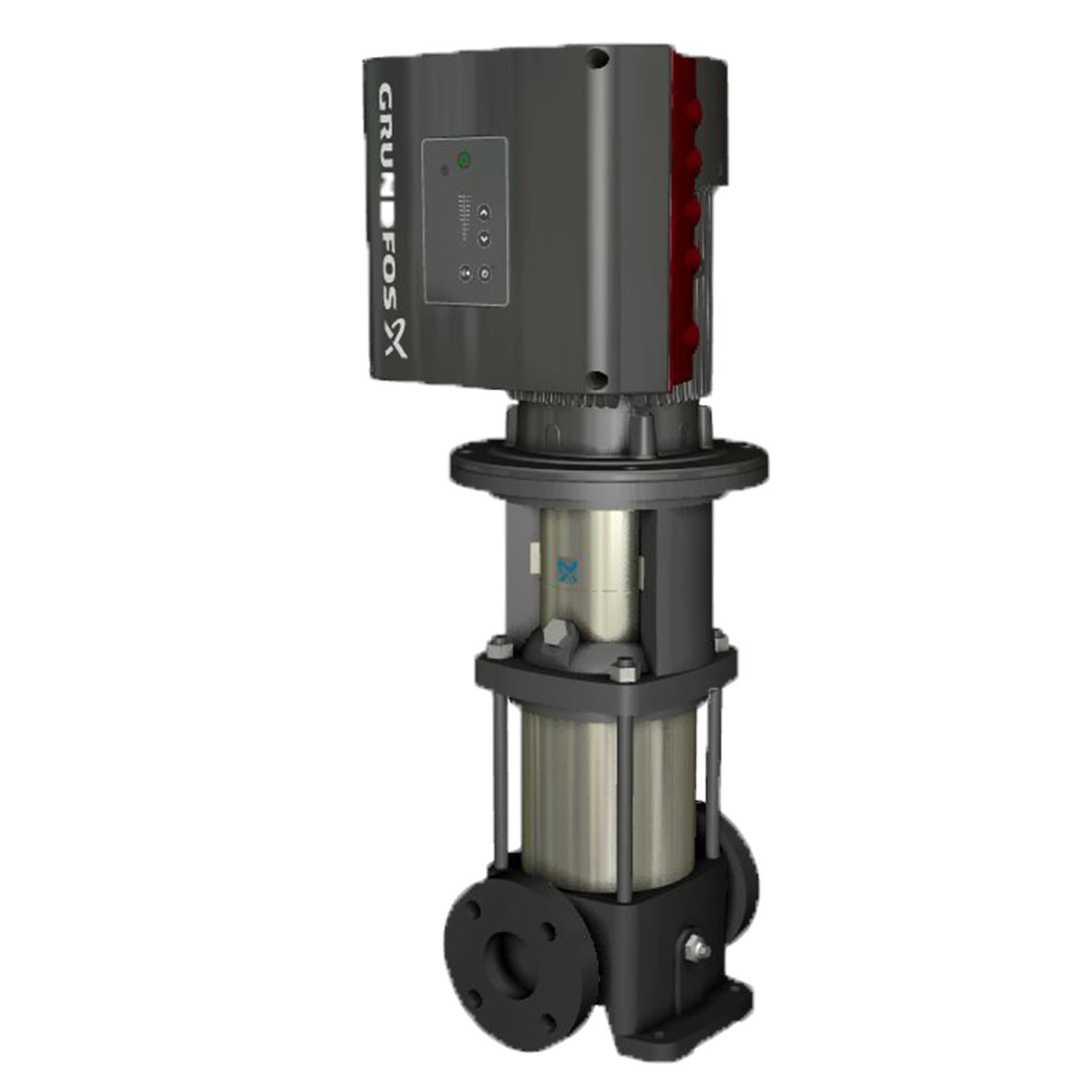

The Grundfos 99624397 (CRE 32-5-2 K-G-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — Variable Speed. Cast iron head and base, stainless steel wetted parts, with integrated variable frequency drive and IE5-rated permanent magnet motor for energy-optimized pressure control. Nominal performance: 159US gpm at 325.1ft. Rated 460-480V, 3.0-Phase, 60 Hz.
Integrated Variable Frequency Drive
The VFD is built into the pump head — no external drive cabinet, no panel wiring, no drive-to-motor cable. Reduces panel space, installation cost, and failure points.
IE5 Permanent Magnet Motor
CRE uses a Grundfos MGE permanent magnet motor rated IE5 — the highest commercially available efficiency class. Significant energy reduction vs IE3 motors at partial load.
Proportional Pressure Control
AUTOADAPT automatically adjusts set point based on actual system demand. No manual curve adjustment needed after commissioning.
iSOLUTIONS Ready
CRE supports Grundfos GO app, CIM communication modules (PROFIBUS, MODBUS, BACnet), and remote monitoring. Full integration into building management systems.
Soft Start Built In
The integrated drive provides controlled ramp-up, eliminating water hammer and reducing mechanical stress on seals and couplings at every start.
Pump Protection Built In
Dry-run protection, over-temperature shutdown, and motor current monitoring are standard in every CRE. No external protection relay required.
| Model Number | 99624397 |
| Product Series | CRE |
| Series Description | Vertical Multistage Centrifugal Pump — Variable Speed |
| Power | 25HP |
| Voltage | 460-480V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 480-3540rpm |
| Pump Speed | 3497rpm |
| Full Load Current | 30.5A |
| Motor Type | 160AC |
| Motor Protection | YES |
| Motor Efficiency Class | NEMA Premium / IE3 60Hz |
| Motor Efficiency | 91.7% |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 159US gpm |
| Nominal Head | 325.1ft |
| Max Operating Pressure | 232.06psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 2 1/2inch |
| Outlet Connection | 2 1/2inch |
| Pipe Pressure Rating | PN 16 |
| Pipe Standard | ANSI |
| Impeller Material | Stainless steel |
| Housing Material | Cast iron |
| Shaft Seal | HQQE |
| Approvals / Certifications | CURUS |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 460-480V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5713832107155
- Actual impeller diameter
- 4.66 in
- Approvals
- CURUS
- Bearing 1
- Graflon
- Built-in motor protection
- YES
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Config. file no
- 95139704
- Connect code
- G
- Connection
- PN 16
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Diameter
- 4.66 in
- DOE Pump Energy Index VL
- 0.44
- Enclosure class (IEC 34-5)
- IP55
- Flange rating inlet
- 150 lb
- Flange size for motor
- 284TC
- Frequency converter
- Built-in
- Function Module
- ADVANCED I/O
- Gross weight
- 479.0 lb
- IE Efficiency class
- NEMA Premium / IE3 60Hz
- Impeller
- Stainless steel
- Impellers
- 2
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -22 .. 248 °F
- Low NPSH
- Y
- Mains frequency
- 60 Hz
- Material code
- A
- Material Pricing Group
- 31
- Max pressure at stated temp
- 232 psi / 250 °F
- Maximum ambient temperature
- 104 °F
- Maximum head
- 424.2 ft
- Maximum operating pressure
- 16 bar
- Model
- B
- Motor
- 284TC
- Motor efficiency at full load 1
- 0.917
- Motor standard
- NEMA
- Motor type
- 160AC
- Net weight
- 461.0 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 2
- Power (P2) required by pump
- 18.5 kW
- Power factor 1
- 0.88
- Pressure rating for connection
- PN 16
- Pressure sensor
- N
- Pump
- 18.5 kW
- Pump speed on which pump data are based
- 3497 rpm
- Pump version
- K
- Pumped liquid
- Water
- Rated current
- 30.5 A
- Rated flow
- 159 US gpm
- Rated head
- 325.1 ft
- Rated power - P2
- 18.5 kW
- Rated speed
- 480-3540 rpm
- Rated voltage
- 3 x 460 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Service factor
- 1.15
- Size of inlet connection
- 2 1/2 inch
- Size of outlet connection
- 2 1/2 inch
- Stages
- 5
- Standard
- NEMA
- Support bearing
- Graflon
- Type
- 160AC
- Type of connection
- ANSI
- Version
- K
