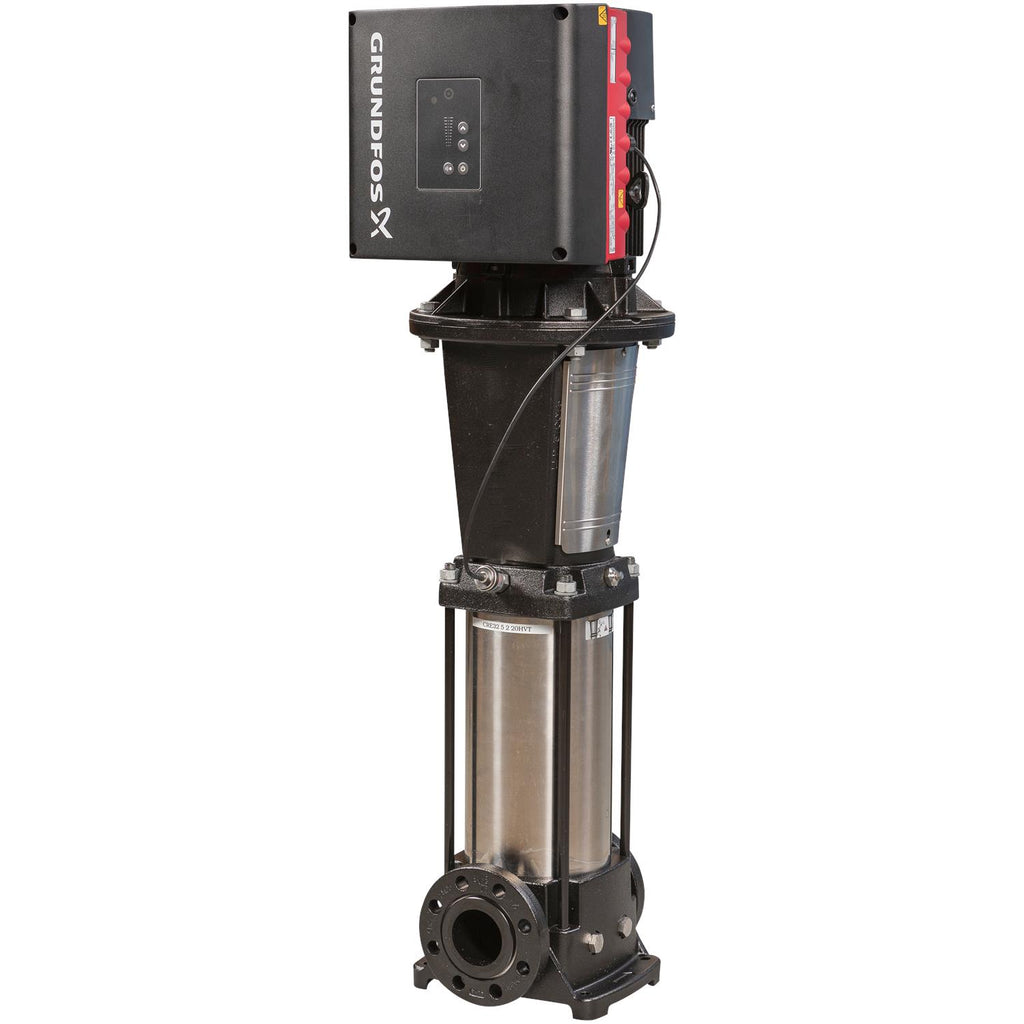

Grundfos 99392748 - CRE 32-2-1 N-G-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $5,211.84
GRUNDFOSSKU: 99392748

Price:
Sale price$5,646.16 Regular price$10,858.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99392748 is a CRE series vertical multistage centrifugal pump suited for in-line, high-pressure industrial liquid handling. Service technicians and facility engineers use this model for booster, transfer, and circulation duties.

Key features

  • Vertical multistage centrifugal design for compact footprint and smooth flow
  • CRE series compatibility for high-pressure and in-line applications
  • Reliable construction providing consistent performance and simplified maintenance

Applications

Suitable for booster systems, pressure boosting, industrial process circulation, and other high-pressure in-line duties where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99392748

EAN 5713828380760
Applications Industrial applications
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 SIC
Bearing 2 Graflon
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99303467
Connect code G
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 222.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 168.6 ft
Maximum operating pressure 16 bar
Model B
Motor Standard motor size
Motor efficiency at full load 1 0.902
Motor standard NEMA
Motor type 132F
Net weight 204.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 5.5 kW
Power factor 1 0.94
Pressure rating for connection PN 16
Pressure sensor Y
Product family CRE 32
Pump 5.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version N
Pumped liquid Water
Rated current 20.0-16.6 A
Rated flow 159 US gpm
Rated head 124.3 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 2
Standard NEMA
Support bearing Graflon
Terminal box position 6
Type 132F
Type of connection ANSI
Version N

Motor Curves

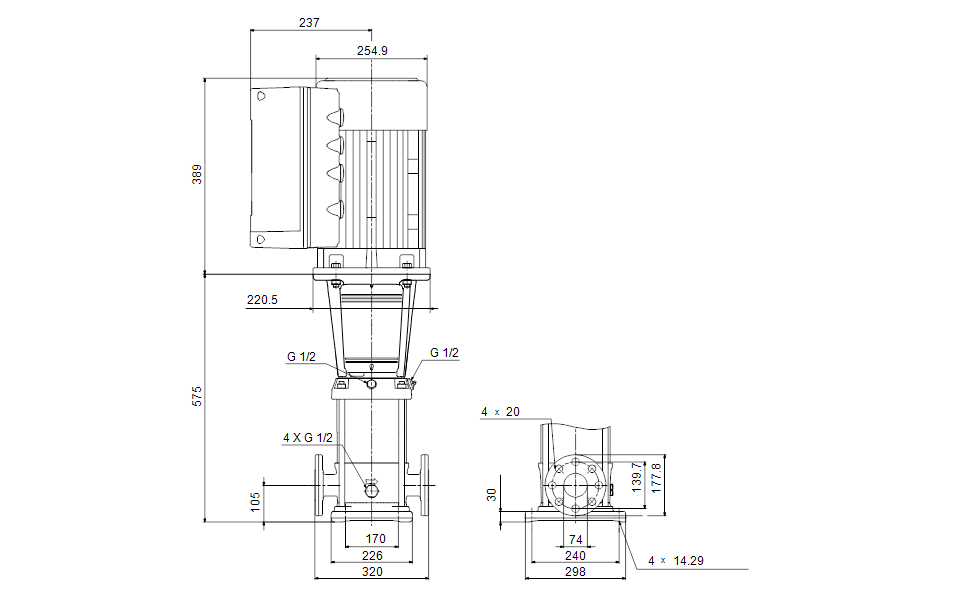

Dimensional Drawing

DWiring Diagram
