Grundfos 99976167 - CRE 32-1 P-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99976167

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99976167 - CRE 32-1 P-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered to deliver exceptional efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, even in demanding environments. Its multistage design allows for increased pressure capabilities, making it suitable for applications that require consistent and reliable performance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715115011128
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99303444
Connect code G
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 167.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 95.15 ft
Maximum operating pressure 16 bar
Model B
Motor 182TC
Motor efficiency at full load 1 0.887
Motor standard NEMA
Motor type 100A
Net weight 149.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.94
Pressure rating for connection PN 16
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version P
Pumped liquid Water
Rated current 7.90-6.60 A
Rated flow 159 US gpm
Rated head 67.59 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 1
Standard NEMA
Support bearing Graflon
Type 100A
Type of connection ANSI
Version P

Motor Curves

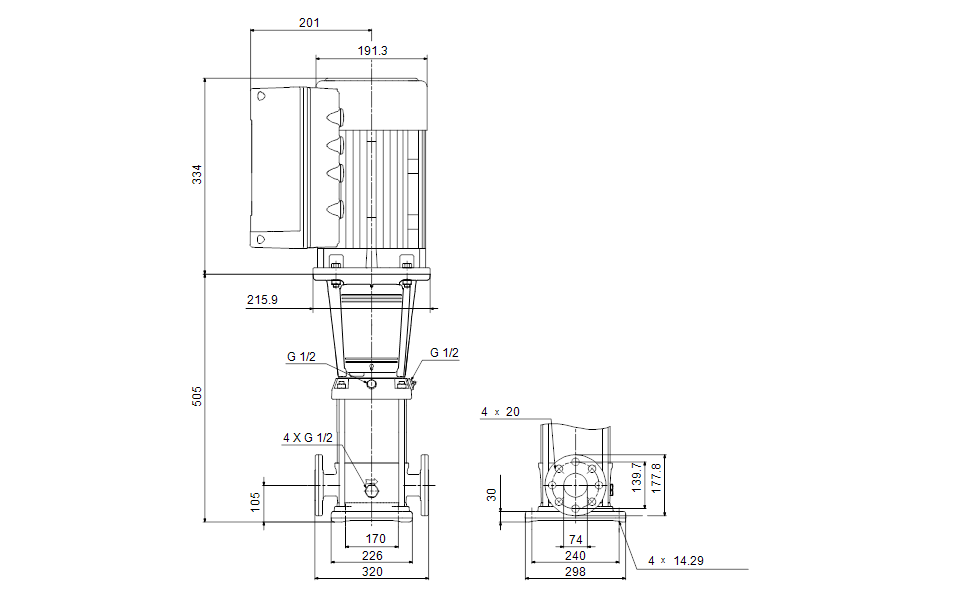

Dimensional Drawing

DWiring Diagram
