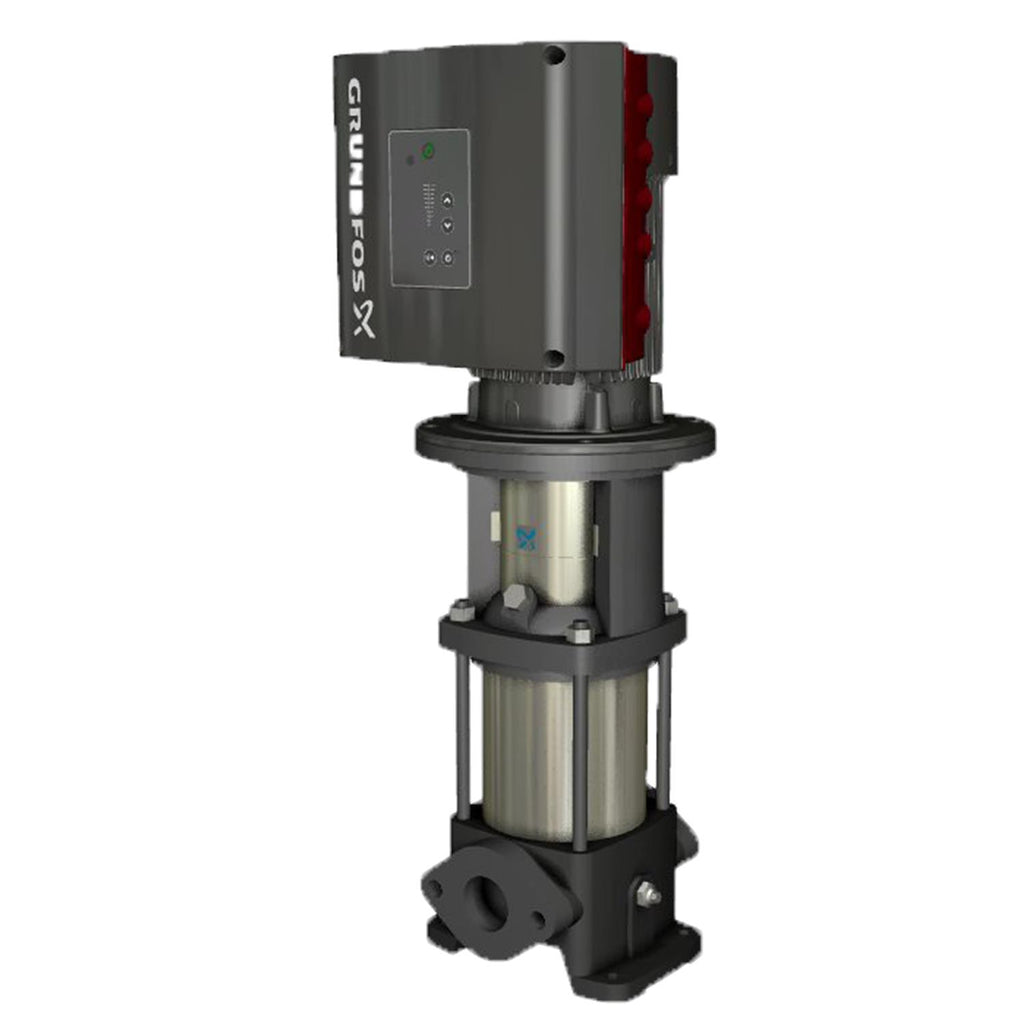

Grundfos 99839145 - CRE 3-9 P-BN-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99839145

Price:
Sale price$6,400.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99839145 is the CRE 3-9 P-BN-A-E-HQQE vertical multistage centrifugal pump, suited for industrial and commercial systems that require compact, high-pressure pumping. Professionals servicing HVAC, booster, or process water systems commonly use this model.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Vertical, multistage centrifugal design for high-pressure performance
  • Compact in-line footprint provides reliable pressure boosting and space savings

Applications

Typical uses include booster stations, HVAC circulation, process water transfer, and pressure boosting in commercial or light industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99839145

EAN 5713835014160
Approvals CURUS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498870
Connect code BN
Connection PN 16
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 70.7 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 280.9 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.869
Motor standard NEMA
Motor type 80B
Net weight 59.7 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.99
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3450 rpm
Pump version P
Pumped liquid Water
Rated current 6.70-5.60 A
Rated flow 15.4 US gpm
Rated head 206.7 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 9
Standard NEMA
Type 80B
Type of connection Oval / NPT(F)
Version P

Motor Curves

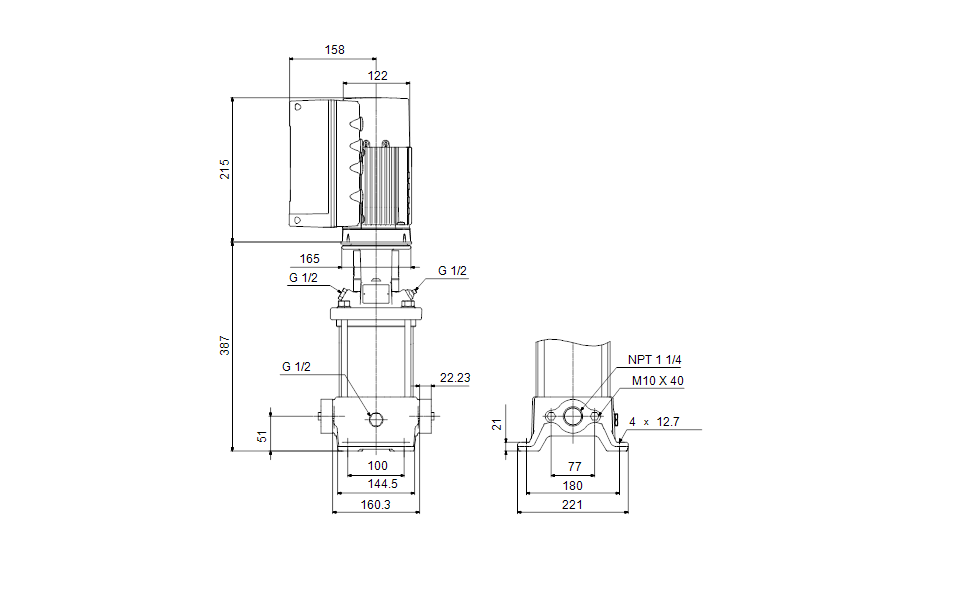

Dimensional Drawing

DWiring Diagram
