Grundfos 98183087 - CRE 20-10 N-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $10,431.36
GRUNDFOSSKU: 98183087

Price:
Sale price$11,300.64 Regular price$21,732.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98183087 - CRE 20-10 N-GJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability, making it an ideal choice for high-pressure and inline pumping needs.

This model is part of the CRE series, which is known for its versatility and robust construction. The CRE 20-10 N-GJ-A-E-HQQE is suitable for various applications, including water supply, heating, and cooling systems. Its multistage design ensures optimal performance, while its vertical configuration saves valuable space in your installation.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 98183087. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5711491079622
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection YES
Code for rubber E
Code for shaft seal HQQE
Config. file no 97913619
Connect code GJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.46
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor 284TC
Frequency converter Built-in
Function Module ADVANCED I/O
Gross weight 549.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 698.9 ft
Maximum operating pressure 25 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type 160AC
Net weight 437.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 18.5 kW
Power factor 1 0.88
Pressure rating for connection PN 25
Pressure sensor Y
Product family CRE 20
Pump 18.5 kW
Pump speed on which pump data are based 3521 rpm
Pump version N
Pumped liquid Water
Rated current 30.5 A
Rated flow 111 US gpm
Rated head 561.4 ft
Rated power - P2 18.5 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard NEMA
Terminal box position 6
Type 160AC
Type of connection ANSI / JIS
Version N

Motor Curves

Dimensional Drawing

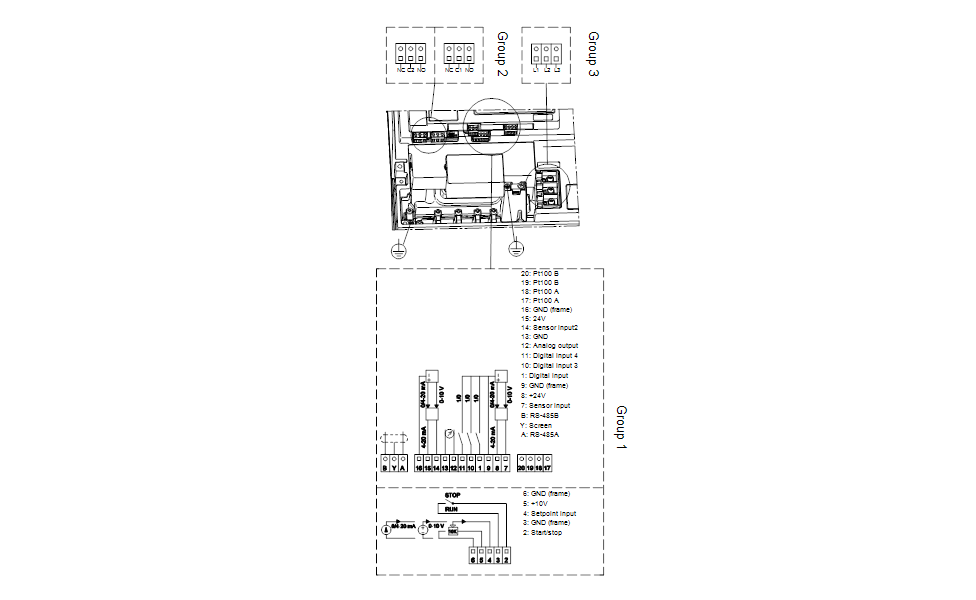

DWiring Diagram
