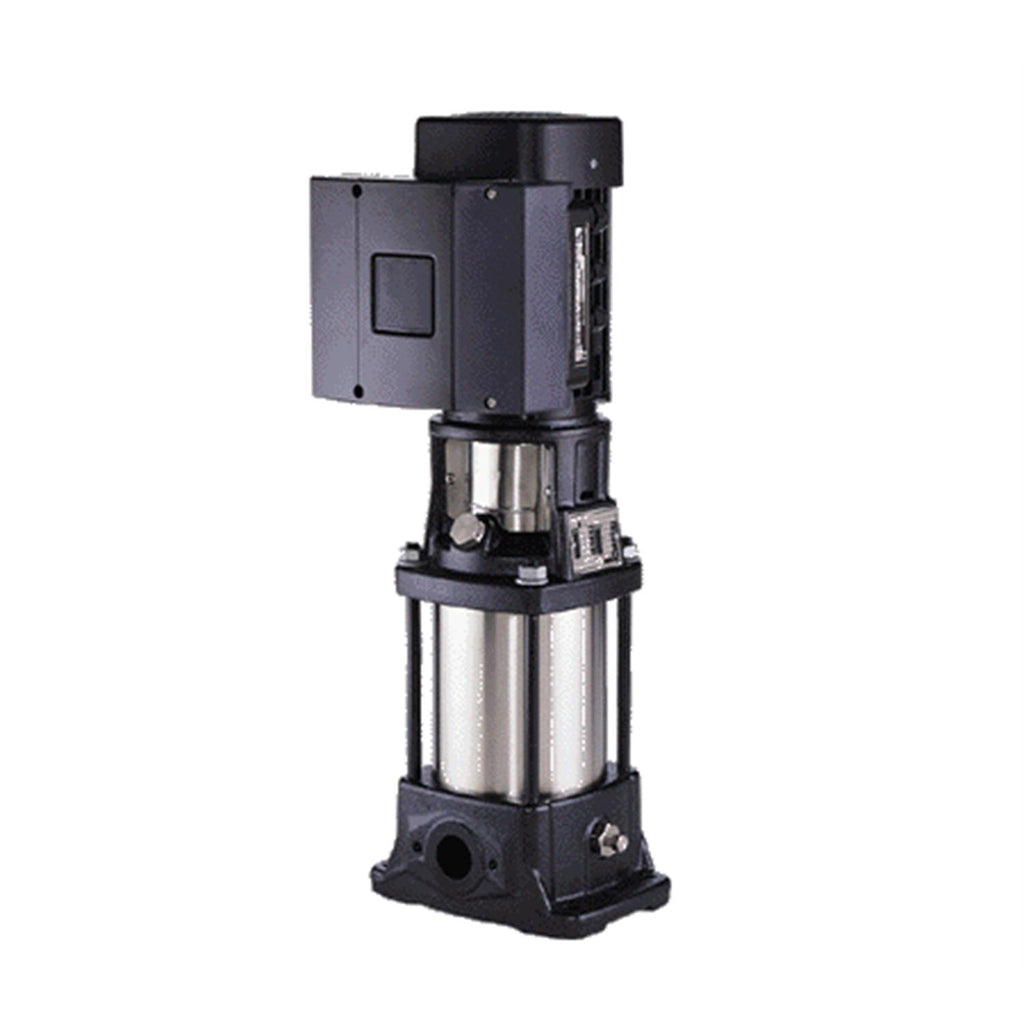

Grundfos 99403213 - CRE 15-3 A-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99403213

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99403213 CRE 15-3 A-GJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial boosting and high-pressure inline applications. It suits technicians and facility managers who maintain booster systems and vertical multistage installations.

Key features

  • Manufactured by Grundfos for reliable industrial use
  • Vertical multistage centrifugal configuration for high-pressure delivery
  • Compact in-line design offering consistent pressure boosting and system stability

Applications

Typical uses include water booster systems, high-pressure industrial process feed, in-line circulation, and vertical multistage pumping where compact footprint and reliable head are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99403213

EAN 5713828544032
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99303408
Connect code GJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 271.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 200.5 ft
Maximum operating pressure 16 bar
Model A
Motor 213TC
Motor efficiency at full load 1 0.902
Motor standard NEMA
Motor type 132F
Net weight 185.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.94
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 20.0-16.6 A
Rated flow 90.3 US gpm
Rated head 152.9 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Real time availability: Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Type 132F
Type of connection ANSI / JIS
Version A
