Grundfos 99390837 - CRE 10-4 A-A-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99390837

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

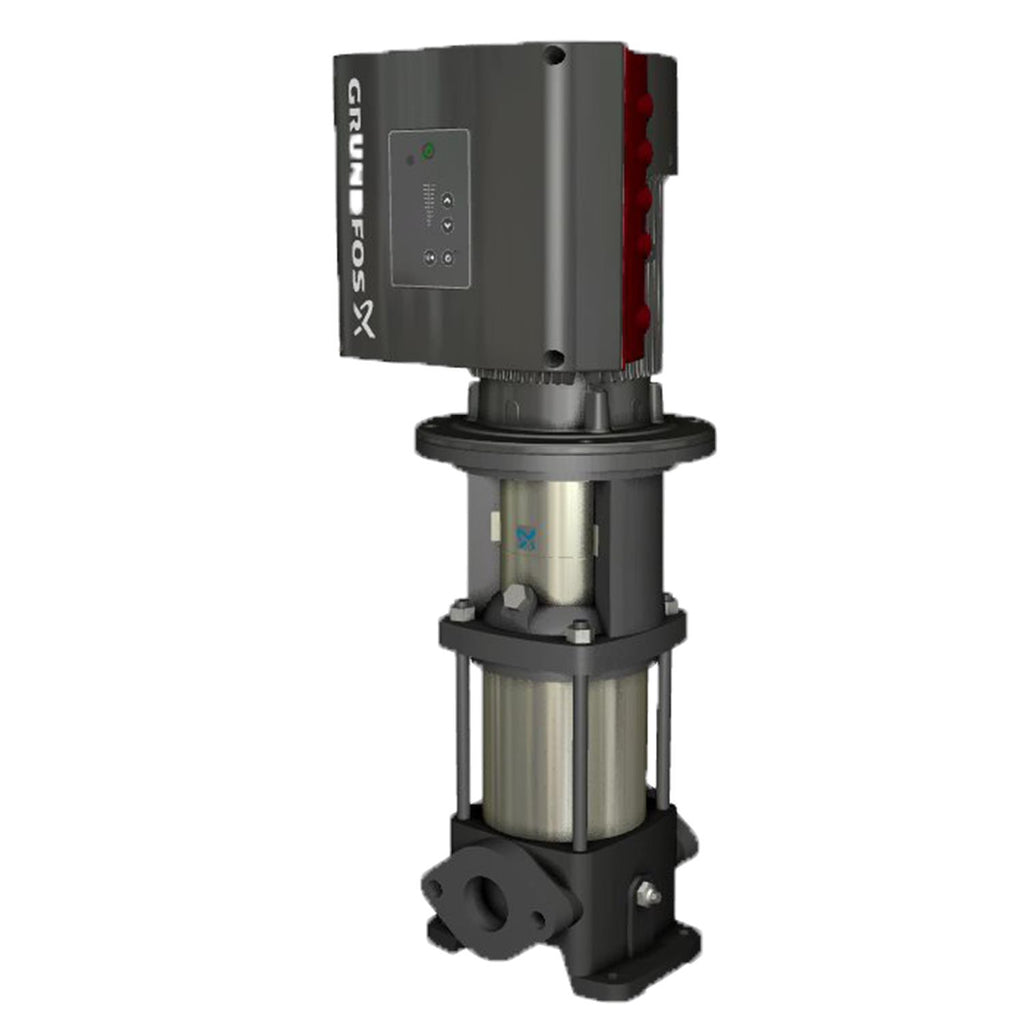

CRE 10-4 A-A-A-E-HQQE · Vertical Multistage Centrifugal Pump — Variable Speed
CRE4HP380-500V3.0-Phase50, 60 HzIE5IP55Stainless steel

The Grundfos 99390837 (CRE 10-4 A-A-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — Variable Speed. Cast iron head and base, stainless steel wetted parts, with integrated variable frequency drive and IE5-rated permanent magnet motor for energy-optimized pressure control. Nominal performance: 53.1US gpm at 153.4ft. Rated 380-500V, 3.0-Phase, 50, 60 Hz.

Power
4HP
Voltage
380-500V
Phase
3.0-Phase
Max Flow
53.1US gpm
Max Head
153.4ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Integrated Variable Frequency Drive

The VFD is built into the pump head — no external drive cabinet, no panel wiring, no drive-to-motor cable. Reduces panel space, installation cost, and failure points.

IE5 Permanent Magnet Motor

CRE uses a Grundfos MGE permanent magnet motor rated IE5 — the highest commercially available efficiency class. Significant energy reduction vs IE3 motors at partial load.

Proportional Pressure Control

AUTOADAPT automatically adjusts set point based on actual system demand. No manual curve adjustment needed after commissioning.

iSOLUTIONS Ready

CRE supports Grundfos GO app, CIM communication modules (PROFIBUS, MODBUS, BACnet), and remote monitoring. Full integration into building management systems.

Soft Start Built In

The integrated drive provides controlled ramp-up, eliminating water hammer and reducing mechanical stress on seals and couplings at every start.

Pump Protection Built In

Dry-run protection, over-temperature shutdown, and motor current monitoring are standard in every CRE. No external protection relay required.

Model Information — CRE 10-4 A-A-A-E-HQQE
Series: CRE
Model Code: CRE 10-4 A-A-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 99390837
Product Series CRE
Series Description Vertical Multistage Centrifugal Pump — Variable Speed
Power 4HP
Voltage 380-500V
Phase 3.0-Phase
Frequency 50, 60 Hz
Motor Speed 360-4000rpm
Pump Speed 3512rpm
Full Load Current 5,80-4,80A
Motor Type 100LA
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 90.7%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 53.1US gpm
Nominal Head 153.4ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 122°F
Inlet Connection 1 1/2inch
Outlet Connection 1 1/2inch
Pipe Pressure Rating PN 16
Pipe Standard Oval / Rp
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Approvals / Certifications CE, UKCA, SEPRO, RCM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-500V, 3.0-Phase, 50, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRE Series
✓ Product Data Sheet — CRE 10-4 A-A-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5713828350329
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99058930
Connect code A
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FT130
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 165.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 193.9 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at full load 1 0.907
Motor standard IEC
Motor type 100LA
Net weight 117.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.91-0.86
Pressure rating for connection PN 16
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 3511 rpm
Pump version A
Pumped liquid Water
Rated current 5.80-4.80 A
Rated flow 53.3 US gpm
Rated head 154.9 ft
Rated power - P2 3 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 1/2 inch
Stages 4
Standard IEC
Type 100LA
Type of connection Oval / Rp
Version A

Motor Curves

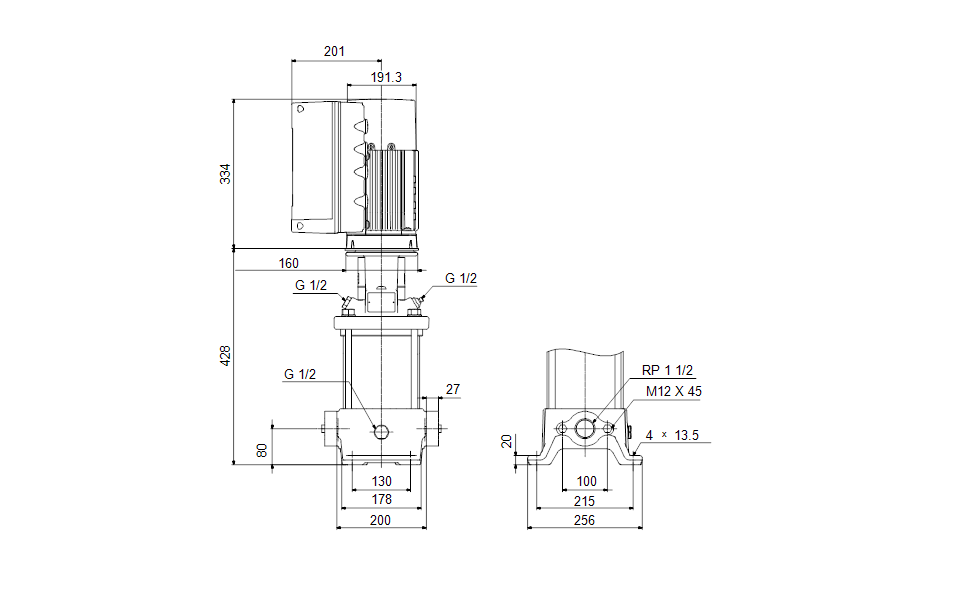

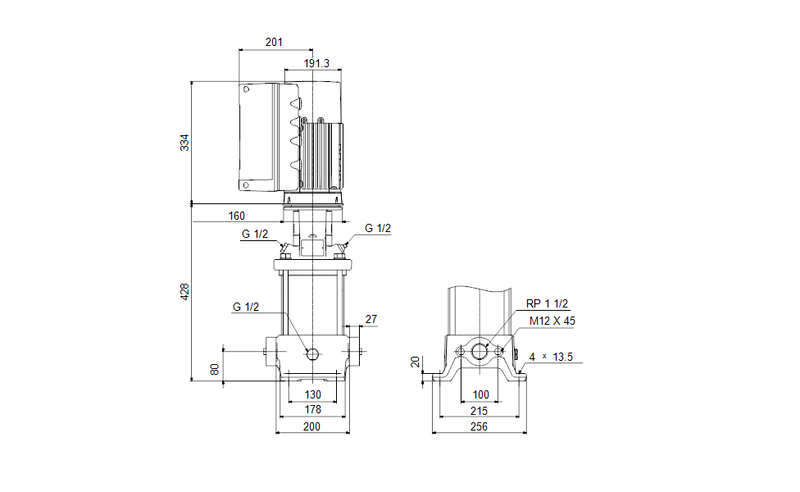

Dimensional Drawing

DWiring Diagram
