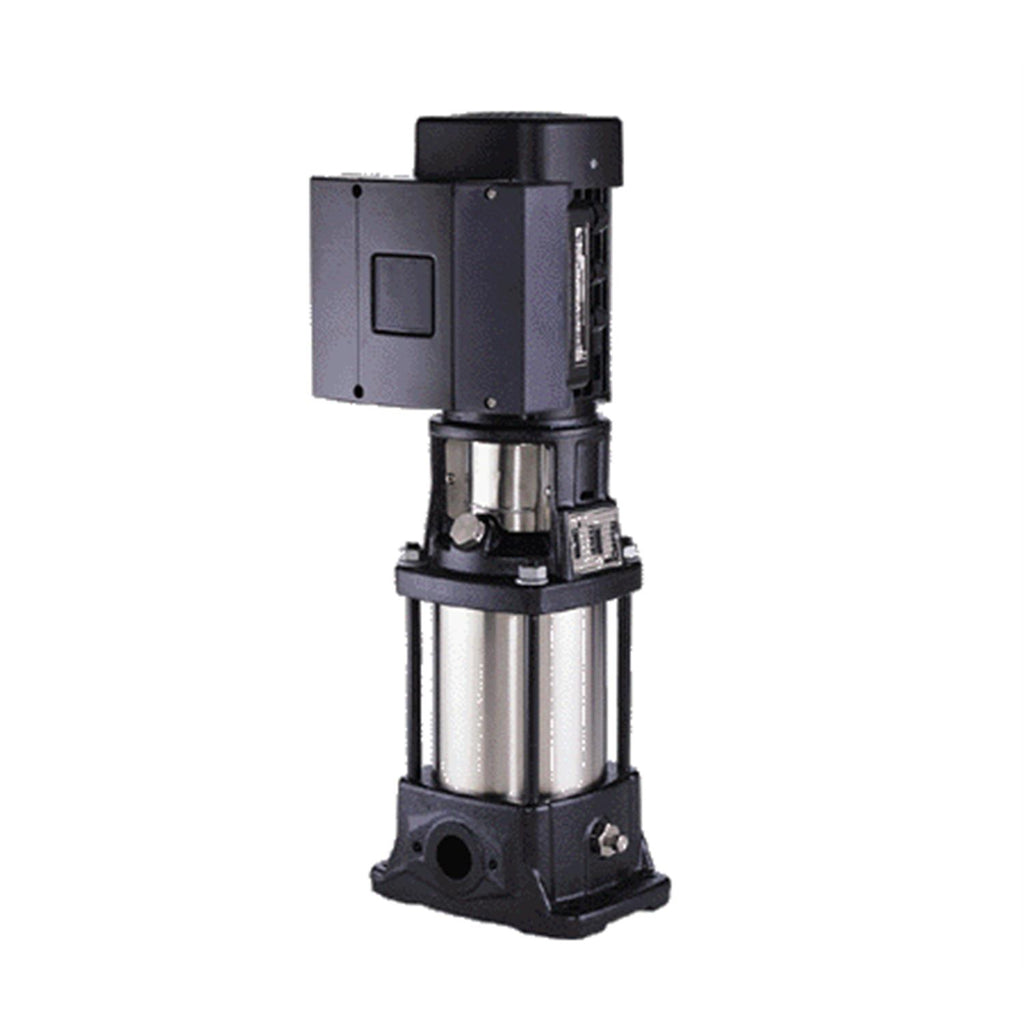

Grundfos 98497380 - CRE 10-4 A-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98497380

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98497380 - CRE 10-4 A-GJ-A-E-HQQE is a vertical multistage centrifugal pump designed for inline, high-pressure booster and industrial applications. It is intended for use by facility engineers, maintenance technicians, and contractors needing reliable pressure boosting.

Key features

  • Vertical multistage centrifugal design for compact footprint and scalable head
  • Suitable for high-pressure, inline booster applications and multi-stage systems
  • Provides consistent pressure and efficient operation to support HVAC, process, and water supply systems

Applications

Booster stations, pressure boosting for commercial and industrial plumbing, HVAC systems, process water delivery, and other high-pressure inline requirements.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98497380

EAN 5711496142154
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98500681
Connect code GJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 146.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 192.6 ft
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 90D
Net weight 128.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.89
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 10
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 3.8 A
Rated flow 53.3 US gpm
Rated head 150.3 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Type 90D
Type of connection ANSI / JIS
Version A

Motor Curves

Dimensional Drawing

DWiring Diagram
