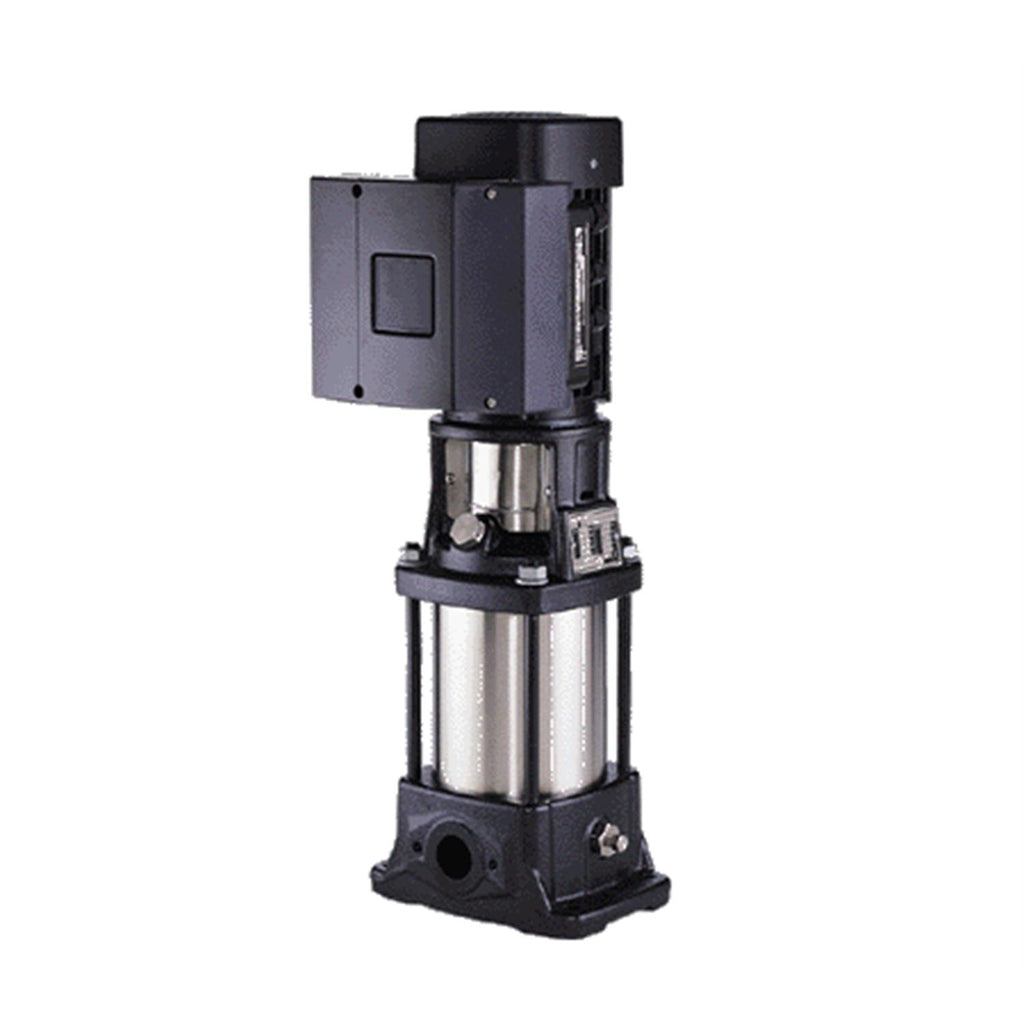

Grundfos 98497352 - CRE 10-2 A-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98497352

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98497352 CRE 10-2 A-GJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial boost and high-pressure inline applications, used by contractors and plant maintenance teams.

Key features

  • Vertical multistage centrifugal design for compact, space-saving installation
  • Suitable for high-pressure and inline booster configurations, per product tags
  • Delivers reliable staged pumping for systems requiring consistent pressure and flow

Applications

Ideal for boiler feed, water transfer, pressure boosting, HVAC circulation, and other industrial or commercial fluid-handling systems where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98497352

EAN 5711496141874
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98500618
Connect code GJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 117.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 95.15 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.874
Motor standard NEMA
Motor type 90C
Net weight 99.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.99
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 10
Pump 1.5 kW
Pump speed on which pump data are based 3450 rpm
Pump version A
Pumped liquid Water
Rated current 9.10-7.60 A
Rated flow 53.3 US gpm
Rated head 70.87 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type 90C
Type of connection ANSI / JIS
Version A
