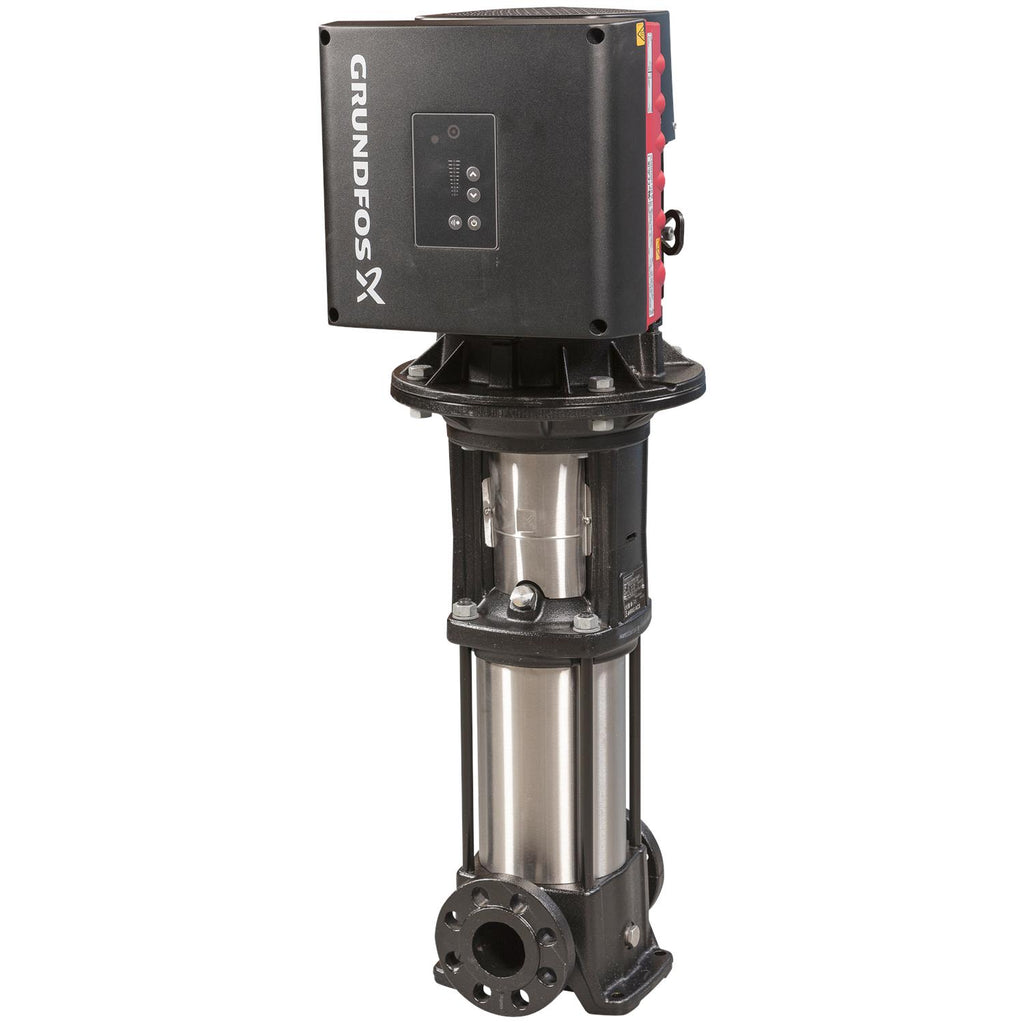

Grundfos 99072116 - CRE 1-27 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99072116

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99072116 is a vertical, multistage centrifugal pump designed for commercial and light industrial fluid transfer where reliable pressure and compact footprint are required. Technicians and facility maintenance teams commonly use this CRE-series unit for boosting and circulation duties.

Key features

  • Vertical multistage centrifugal design for consistent pressure delivery
  • Suitable for in-line and high-pressure applications as indicated by product tags
  • Compact vertical form factor saves floor space and simplifies installation

Applications

Typical uses include water boosting, HVAC circulation, pressure boosting in buildings, and other general-purpose industrial fluid handling tasks.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99072116

EAN 5712606204878
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99057231
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor FT130
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 162.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 801.9 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.907
Motor standard IEC
Motor type 100LA
Net weight 116.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.91-0.86
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 1
Pump 3 kW
Pump speed on which pump data are based 3514 rpm
Pump version A
Pumped liquid Water
Rated current 5.80-4.80 A
Rated flow 9.69 US gpm
Rated head 616.2 ft
Rated power - P2 3 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 27
Standard IEC
Terminal box position 6
Type 100LA
Type of connection DIN / ANSI / JIS
Version A
Danish VVS No. 386000027
Finnish LVI No. 4925672
Swedish RSK No. 5855660

Motor Curves

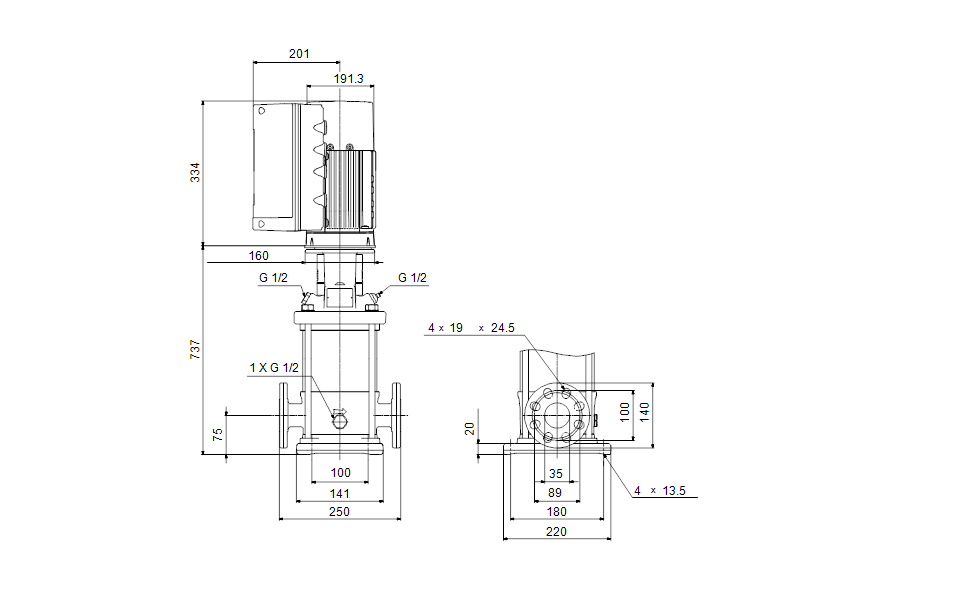

Dimensional Drawing

DWiring Diagram
