Grundfos 92650412 - CRE 1-19 NP-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92650412

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92650412 - CRE 1-19 NP-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92650412 - CRE 1-19 NP-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model offers exceptional efficiency and reliability, making it an ideal choice for demanding environments.

With its robust construction and advanced design, the CRE 1-19 is capable of handling high-pressure applications while ensuring optimal flow rates. This pump is perfect for tasks that require consistent performance and durability.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

EAN 5715117595015
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498433
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor FT115
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 97.7 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 564 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor efficiency at full load 1 0.889
Motor standard IEC
Motor type 90SC
Net weight 85.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.92-0.85
Pressure rating for connection PN 25
Pressure sensor Y
Pump 1.5 kW
Pump speed on which pump data are based 3501 rpm
Pump version NP
Pumped liquid Water
Rated current 2.90-2.40 A
Rated flow 9.69 US gpm
Rated head 433.1 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 19
Standard IEC
Type 90SC
Type of connection DIN / ANSI / JIS
Version NP

Motor Curves

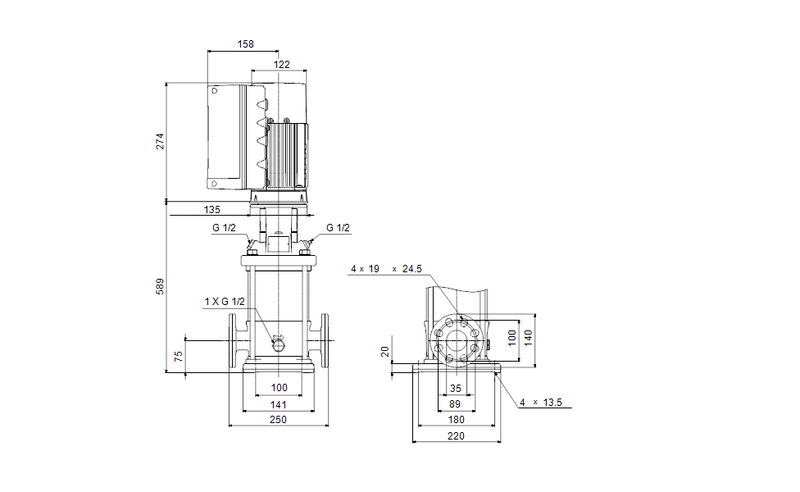

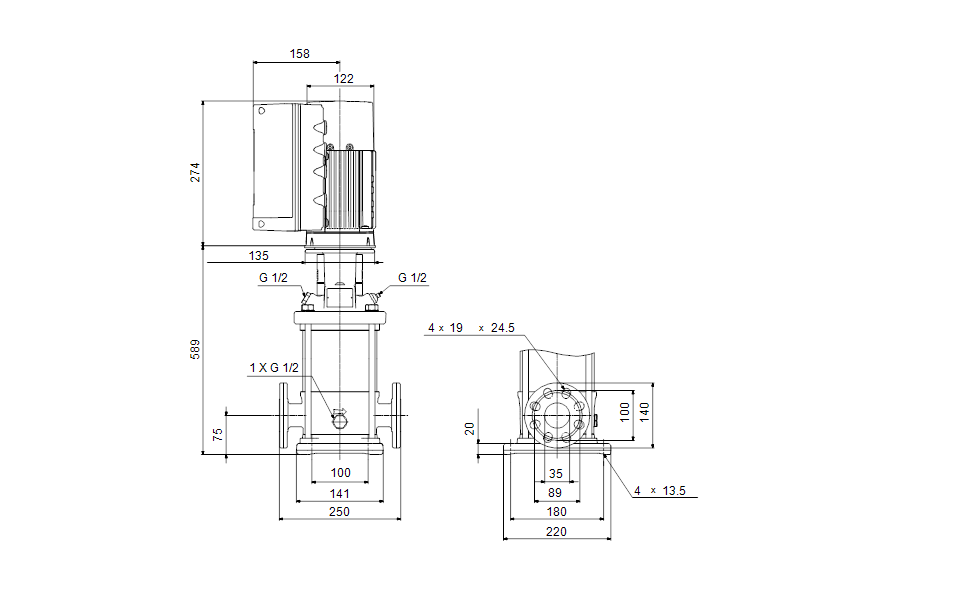

Dimensional Drawing
