Grundfos 99505223 - CR 95-3-1 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99505223

Price:
Sale price$33,681.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

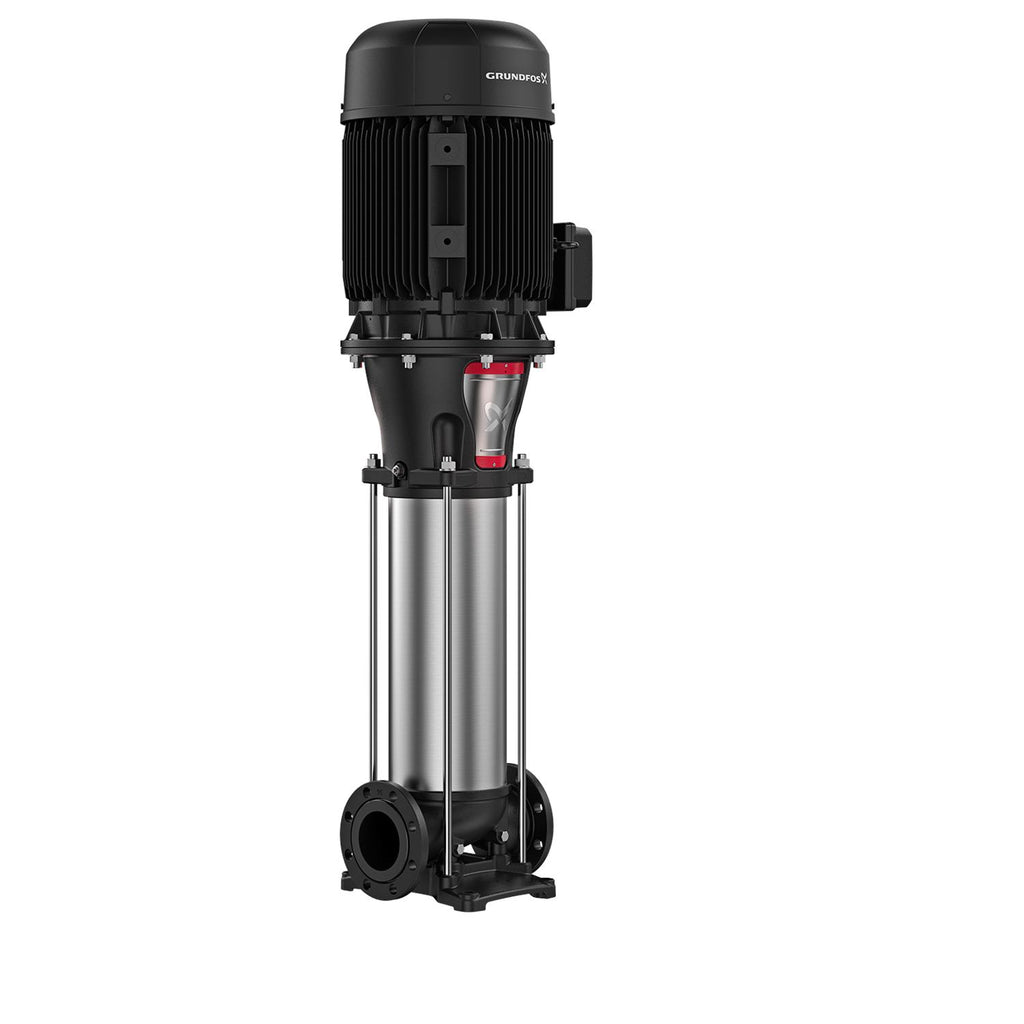

CR 95-3-1 A-G-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713830184967
Applications Industrial applications
Actual impeller diameter 6.07 in
Bearing 1 WC/WC
Bearing 2 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection 150 lb
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP54
Flange size for motor 326TSC
Frequency converter NONE
Full load SF current 128/64 A
Gross weight 1100.0 lb
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material certified according to European standards
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 404.2 ft
Maximum operating pressure 16 bar
Model A
Motor 326TSC
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type BALDOR
Net weight 842.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 37 kW
Power factor 1 0.87
Pressure rating for connection 150 lb
Product family CR 95
Pump 37 kW
Pump speed on which pump data are based 3545 rpm
Pump version A
Pumped liquid Water
Rated current 112/56 A
Rated flow 500 US gpm
Rated head 293.6 ft
Rated power - P2 37 kW
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 3
Standard NEMA
Support bearing Graflon
Thrust handling device N
Type BALDOR
Type of connection ANSI
Version A

Motor Curves

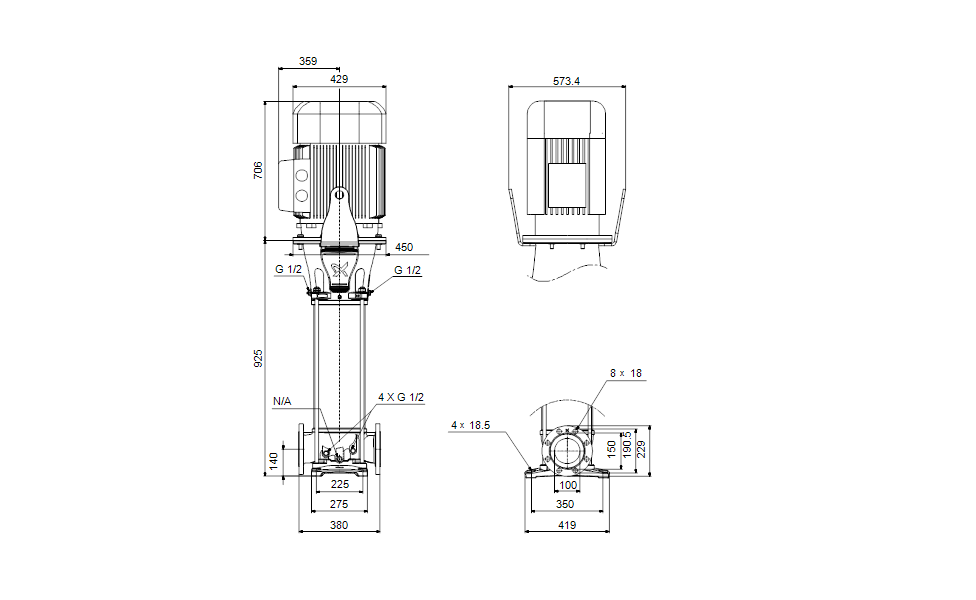

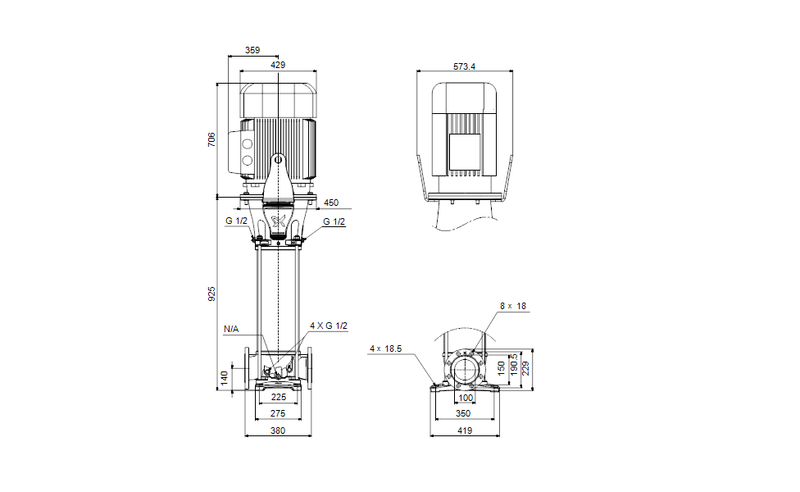

Dimensional Drawing

DWiring Diagram
