Grundfos 99830826 - CR 95-2 B-G-A-E-HQQE | Multistage | Inline | High Flow | Industrial Use

GRUNDFOSSKU: 99830826

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99830826 - CR 95-2 B-G-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713834889479
Actual impeller diameter 154.1 mm
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Diameter 154.1 mm
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP54
Flange size for motor 324TSC
Frequency converter NONE
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 33
Maximum ambient temperature 40 °C
Maximum head 89.3 m
Maximum operating pressure 16 bar
Model A
Motor 324TSC
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type BALDOR
Net weight 345.0 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power factor 1 0.86
Pressure rating for connection 150 lb
Pressure sensor N
Pump speed on which pump data are based 3522 rpm
Pump version B
Rated current 90/45 A
Rated flow 113.6 m³/h
Rated head 64.7 m
Rated power - P2 30 kW
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version B

Motor Curves

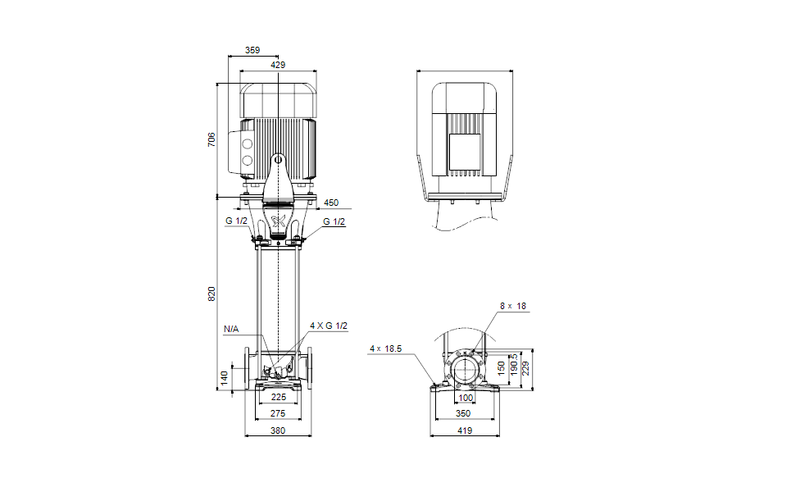

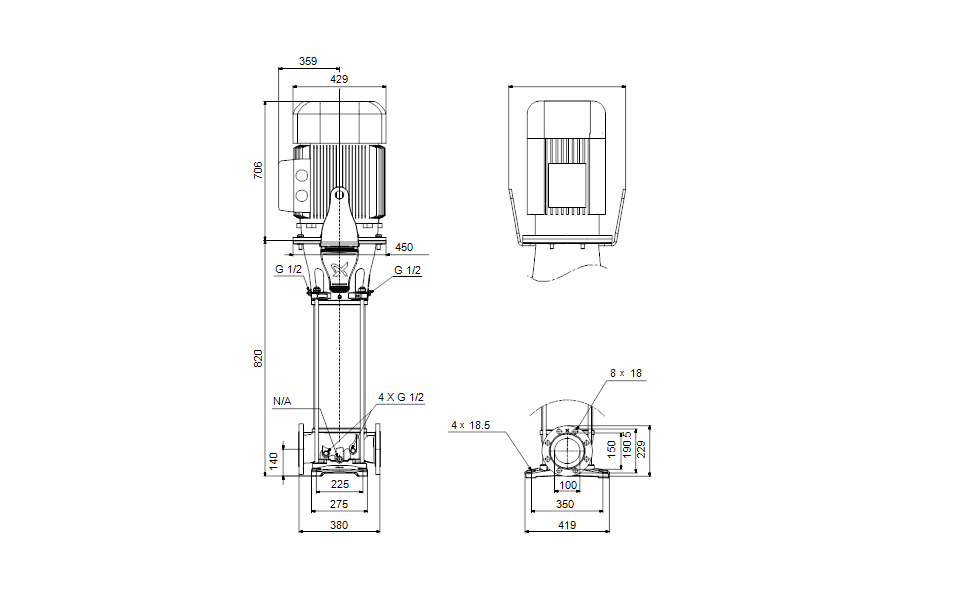

Dimensional Drawing

DWiring Diagram
