Grundfos 92838426 - CR 95-1 X-G-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92838426

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92838426 - CR 95-1 X-G-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92838426 - CR 95-1 X-G-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and inline pumping needs.

With its robust construction and efficient design, the CR 95-1 X-G-A-F-HQQE ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is part of the renowned CR series, known for its versatility and adaptability in various settings.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715120328006
Actual impeller diameter 6.07 in
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 256TC
Frequency converter NONE
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 33
Maximum ambient temperature 104 °F
Maximum head 149.3 ft
Maximum operating pressure 16 bar
Model A
Motor 256TC
Motor efficiency at 1/2 load 0.9
Motor efficiency at 3/4 load 0.91
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type WEG
Net weight 533.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power factor 1 0.91
Pressure rating for connection 150 lb
Pressure sensor N
Pump speed on which pump data are based 3540 rpm
Pump version X
Pumped liquid Water
Rated current 45.4/22.7 A
Rated flow 500 US gpm
Rated head 105.6 ft
Rated power - P2 15 kW
Rated speed 3515 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 1
Standard NEMA
Starting current 6.6
Support bearing Graflon
Type WEG
Type of connection ANSI
Version X

Motor Curves

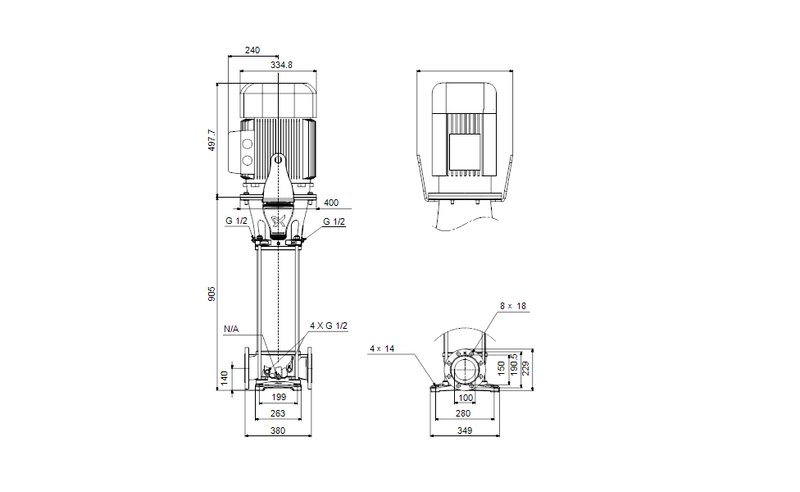

Dimensional Drawing

DWiring Diagram
